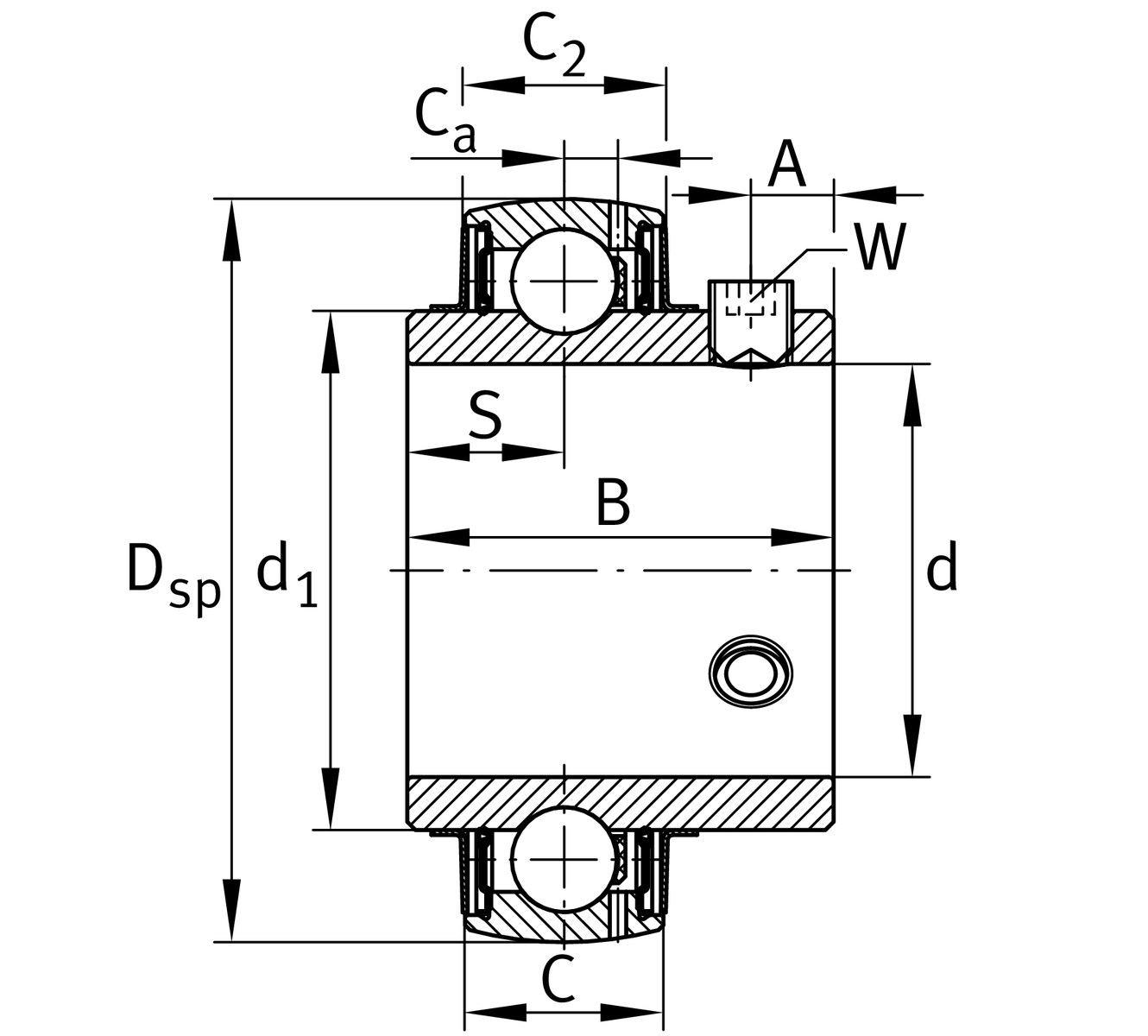

Main Dimensions & Performance Data
| d | 30.162 mm | Bore diameter |
| d | 30.15 mm | Bore diameter, inch |
| DSP | 72 mm | Outside diameter |
| B | 43 mm | Width |
| Cr | 29,500 N | Basic dynamic load rating, radial |
| C0r | 16,700 N | Basic static load rating, radial |
| ≈m | 0.54 kg | Weight |
Dimensions
| C | 24 mm | Width, outer ring |
| C2 | 24.6 mm | Sealing total width |
| S | 17 mm | Distance raceway |
| d1 | 44 mm | Rib diameter inner ring |
| Ca | 6.4 mm | Distance to lubrication hole |
| A | 5.8 mm | Distance thread |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Sealing | 2RSR | Lip seal on both sides (vulcanised) |
| Shape of outer surface | B |
