GE70-SW
Spherical plain bearing GE70-SW
Thêm vào yêu cầu báo giá

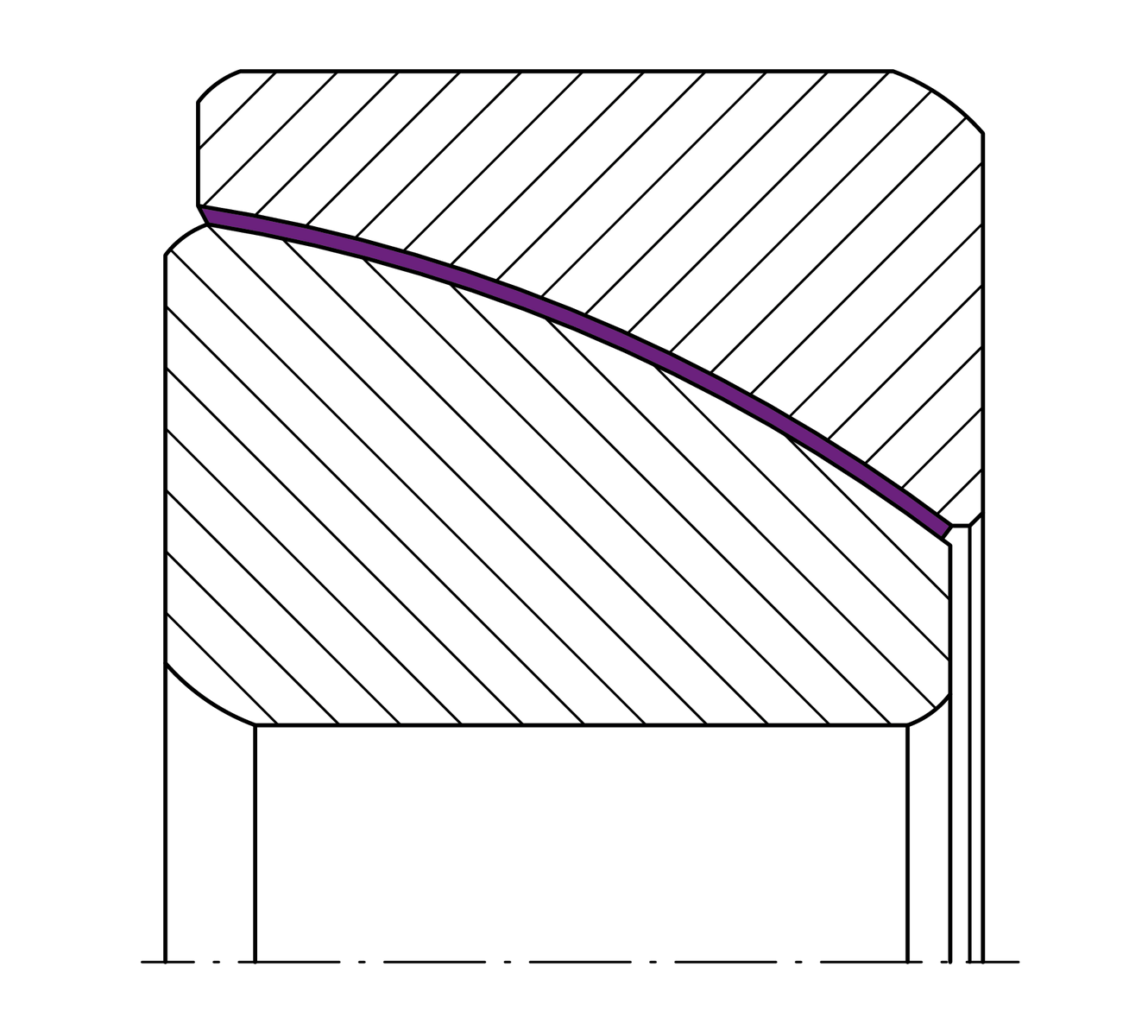

Main Dimensions & Performance Data
d
70 mm
Bore diameter bearing
D
110 mm
Outside diameter bearing
T
25 mm
Height
B
24 mm
Width Inner ring
Cr
627,000 N
Basic dynamic load rating, radial
C0r
1,040,000 N
Basic static load rating, radial
≈m
1.035 kg
Weight

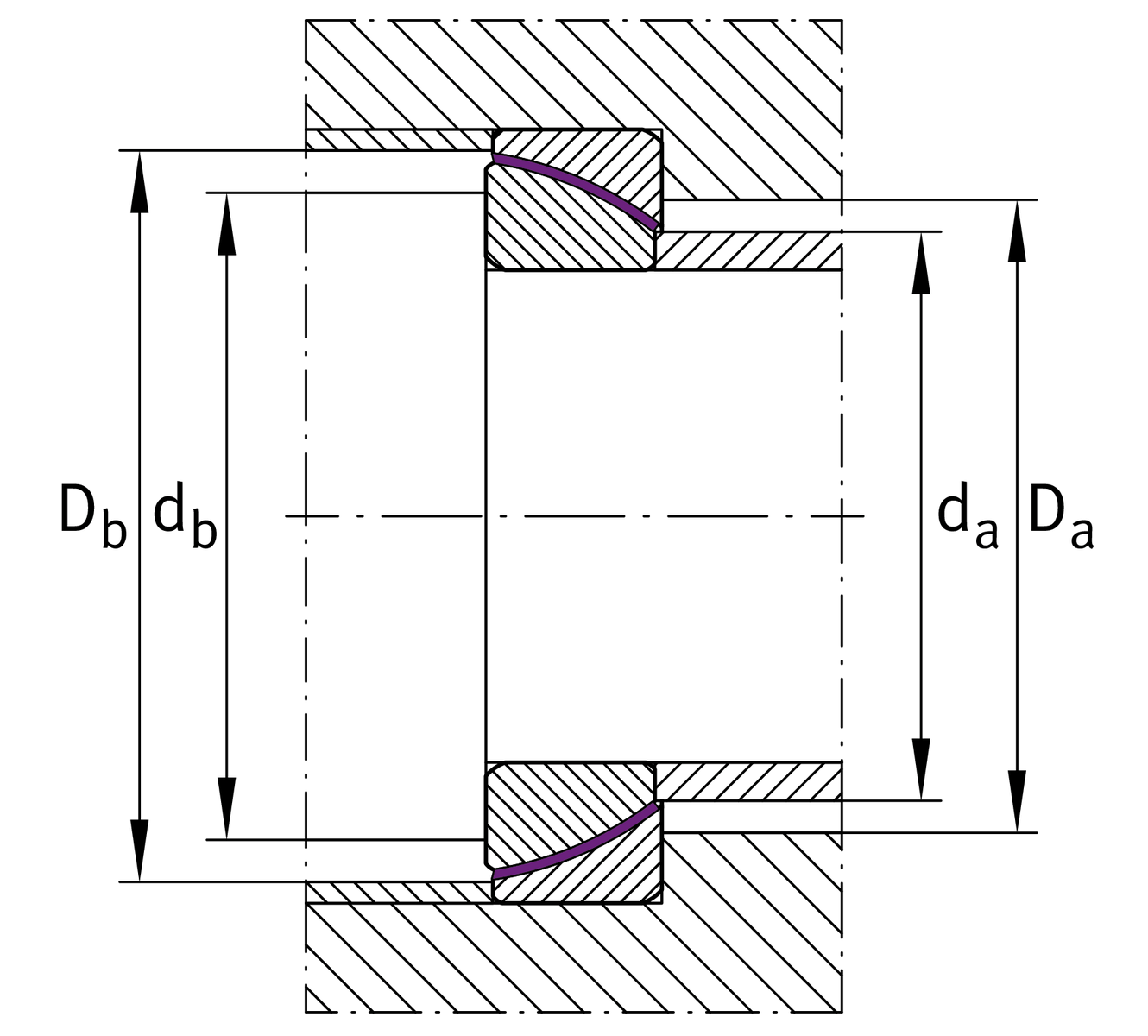

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
80.9 mm
Connection measure Inner ring
Db min
104 mm
Connection diameter
db max
92 mm
Connection measure Inner ring
Da min
90 mm
Housing Connection Diameter

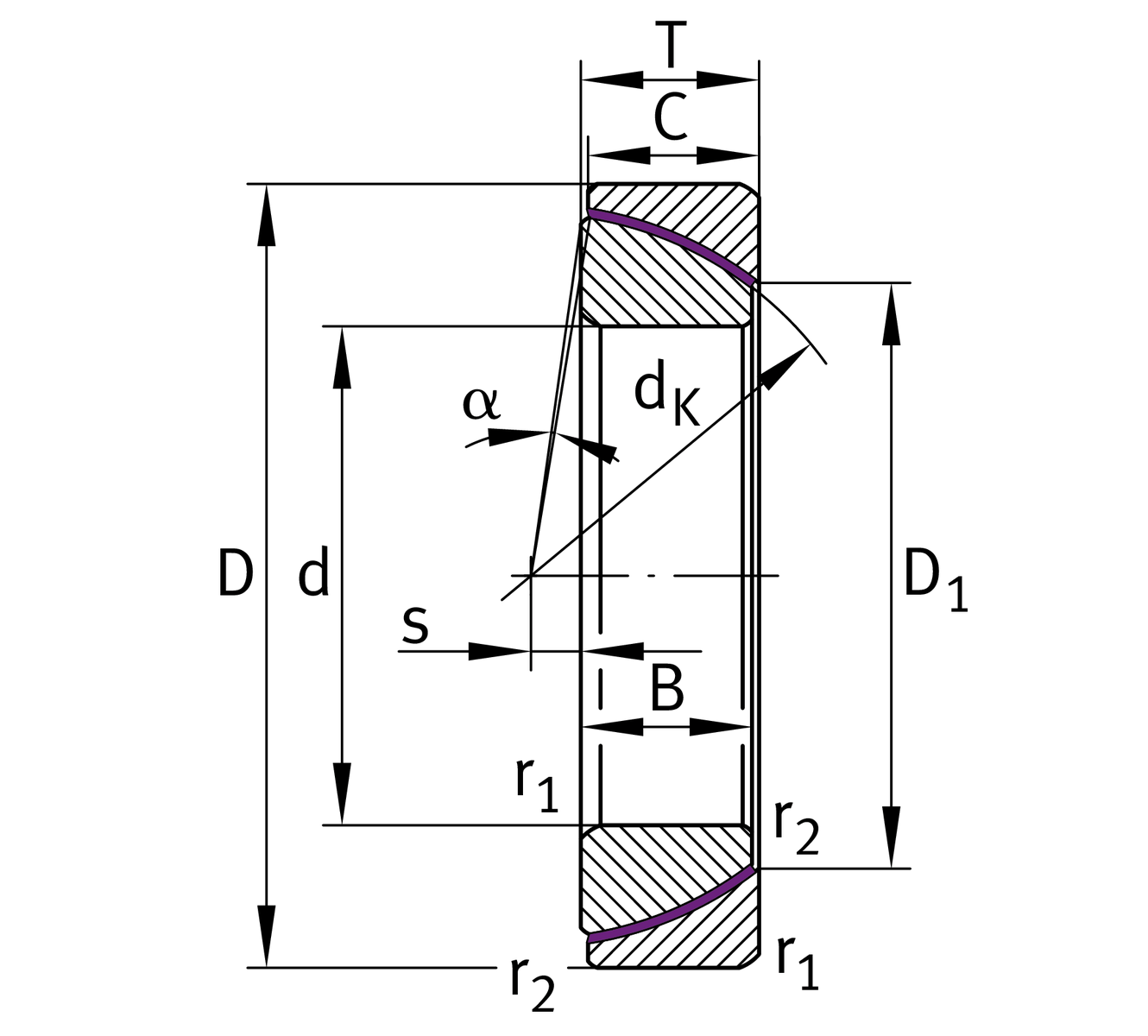

Dimensions
dK
102 mm
Ball diameter
D1
82.2 mm
Bore diameter of housing washer
C
24 mm
Width Outer ring
s
7 mm
Plane Surface Spacing
α
1.1 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.015 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.018 mm
Outside diameter, lower tolerance
TOT
0.25 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.25 mm
Height, lower tolerance
BUT
-0.3 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.3 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.

Your current product variant
FabricELGOGLIDEELGOGLIDE
