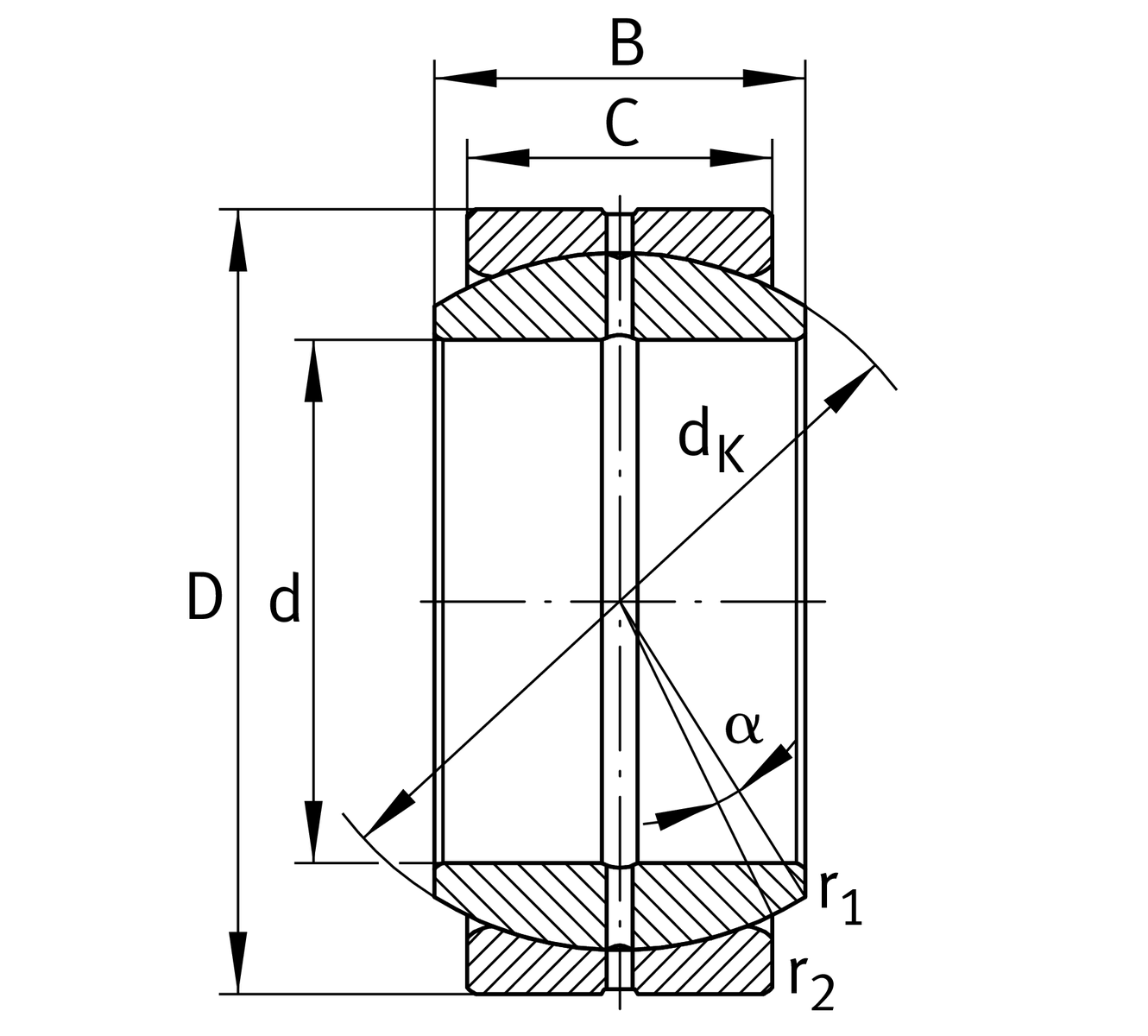

Main Dimensions & Performance Data
| d | 70 mm | Bore diameter bearing |
| D | 105 mm | Outside diameter bearing |
| B | 49 mm | Width Inner ring |
| Cr | 314,000 N | Basic dynamic load rating, radial |
| C0r | 1,430,000 N | Basic static load rating, radial |
| ≈m | 1.5 kg | Weight |
Mounting dimensions
| r1smin | 1 mm | Edge Spacing |
| r2smin | 1 mm | Edge Spacing |
| da max | 77.8 mm | Connection measure Inner ring |
| Da min | 86.6 mm | Housing Connection Diameter |
Dimensions
| C | 40 mm | Width Outer ring |
| dK | 92 mm | Ball diameter |
| α | 6 ° | Tilt angle |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.015 mm | Bore diameter bearing, lower tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.015 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| Gr | 0,072 - 0,142 | Radial Clearance |
| BUT | -0.15 mm | Width inner ring, lower tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -0.4 mm | Width outer ring, lower tolerance |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
