Technical data

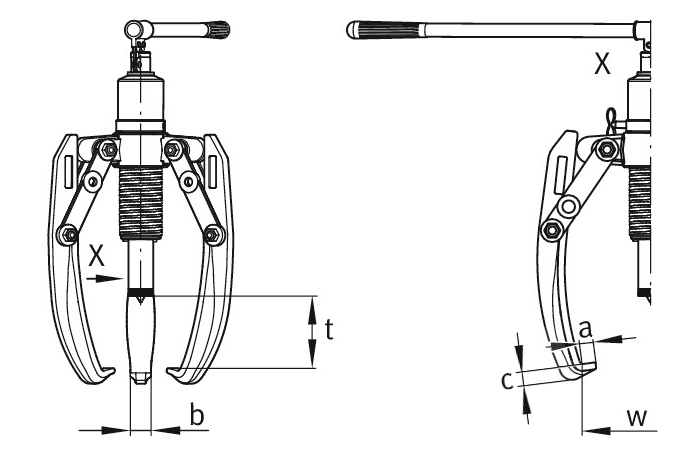

| wmax | 255 mm | Grip width, max. |
| tmax | 185 mm | Grip depth, max. |
| a | 11 mm | |
| b | 22 mm | |
| c | 6 mm | |
60 mm | Stroke | |
| FP | 35 kN | Pulling force |
| ≈m | 4.5 kg | Weight |
Additional information
two- or three-arm puller (convertible) | Usability | |
Safety net or safety blanket, thrust piece, extension adapter, carrying case | Included in delivery |
Your current product variant
| Series | HP | 2/3-Arm, with integrated hand pump |
