Main Dimensions & Performance Data
| d | 12 mm | Bore diameter bearing |
| D | 26 mm | Outside diameter bearing |
| B | 16 mm | Width Inner ring |
| Cr | 13,300 N | Basic dynamic load rating, radial |
| C0r | 33,300 N | Basic static load rating, radial |
| ≈m | 43.7 g | Weight |

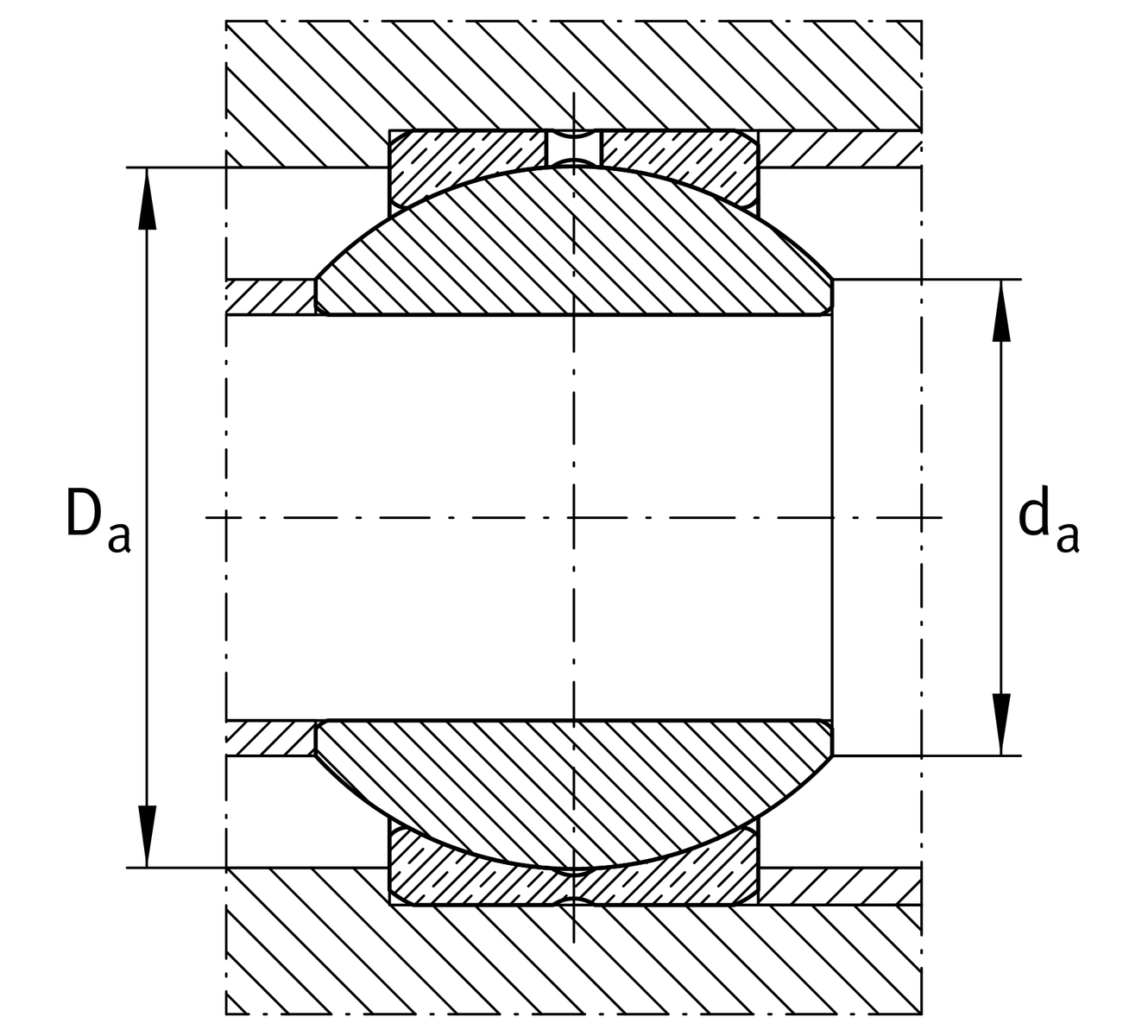

Mounting dimensions
| r1smin | 0.3 mm | Edge Spacing |
| r2smin | 0.3 mm | Edge Spacing |
| da max | 15.4 mm | Connection measure Inner ring |
| Da min | 19.5 mm | Housing Connection Diameter |

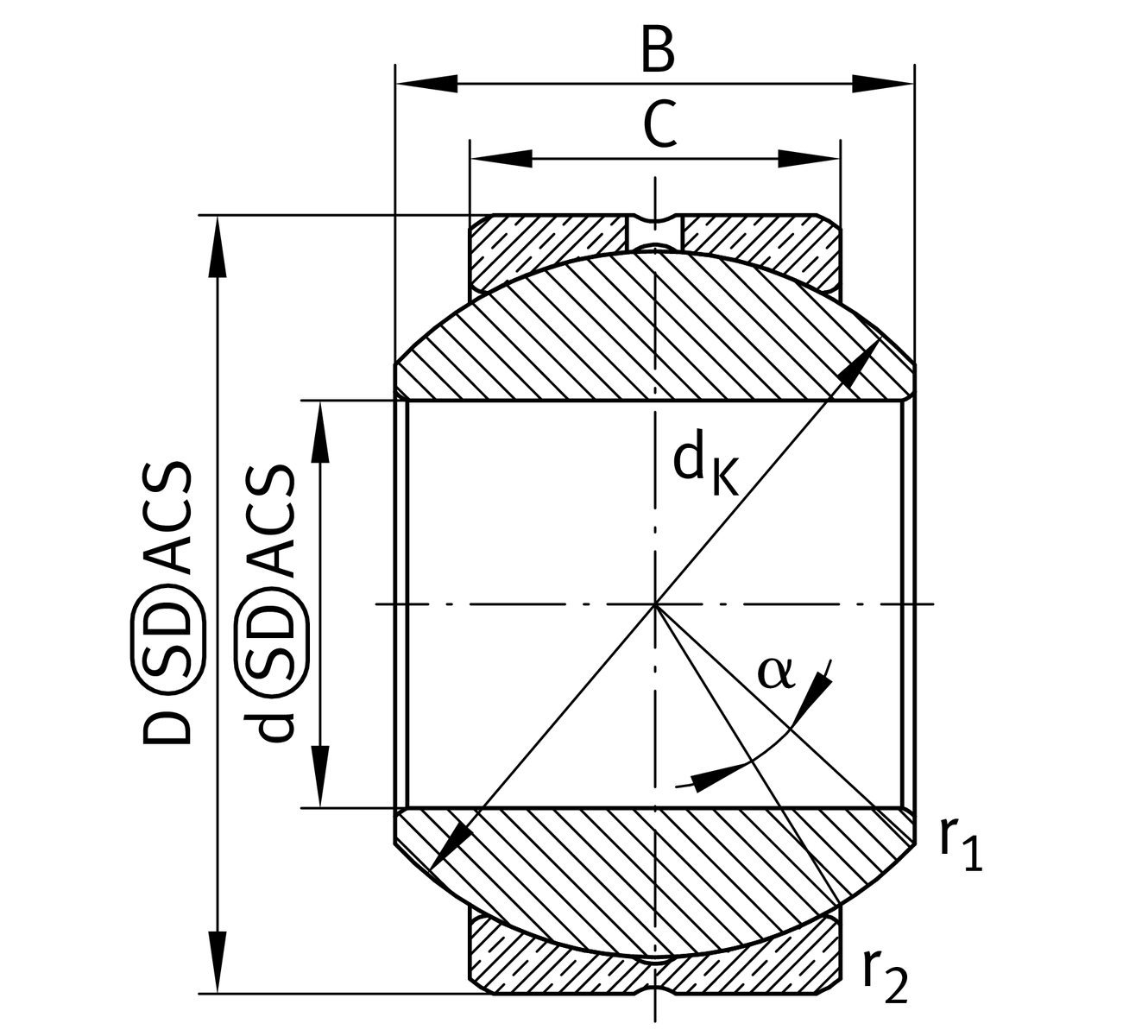

Dimensions
| C | 12 mm | Width Outer ring |
| dK | 22.225 mm | Ball diameter |
| α | 13 ° | Tilt angle |
| dOT | 0.018 mm | Bore diameter bearing, upper tolerance |
| dUT | 0 mm | Bore diameter bearing, lower tolerance |
| dT | H7 | Bore diameter bearing, tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.009 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| Gr | 0,006 - 0,035 | Radial Clearance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -0.24 mm | Width outer ring, lower tolerance |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 250 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
