Main Dimensions & Performance Data
| d | 70 mm | Bore diameter |
| D | 125 mm | Outside diameter |
| B | 31 mm | Width |
| Cr | 44,000 N | Basic dynamic load rating, radial |
| C0r | 17,100 N | Basic static load rating, radial |
| Cur | 1,080 N | Fatigue load limit, radial |
| nG | 8,800 1/min | Limiting speed |
| nϑr | 5,900 1/min | Reference speed |
| ≈m | 1.662 kg | Weight |

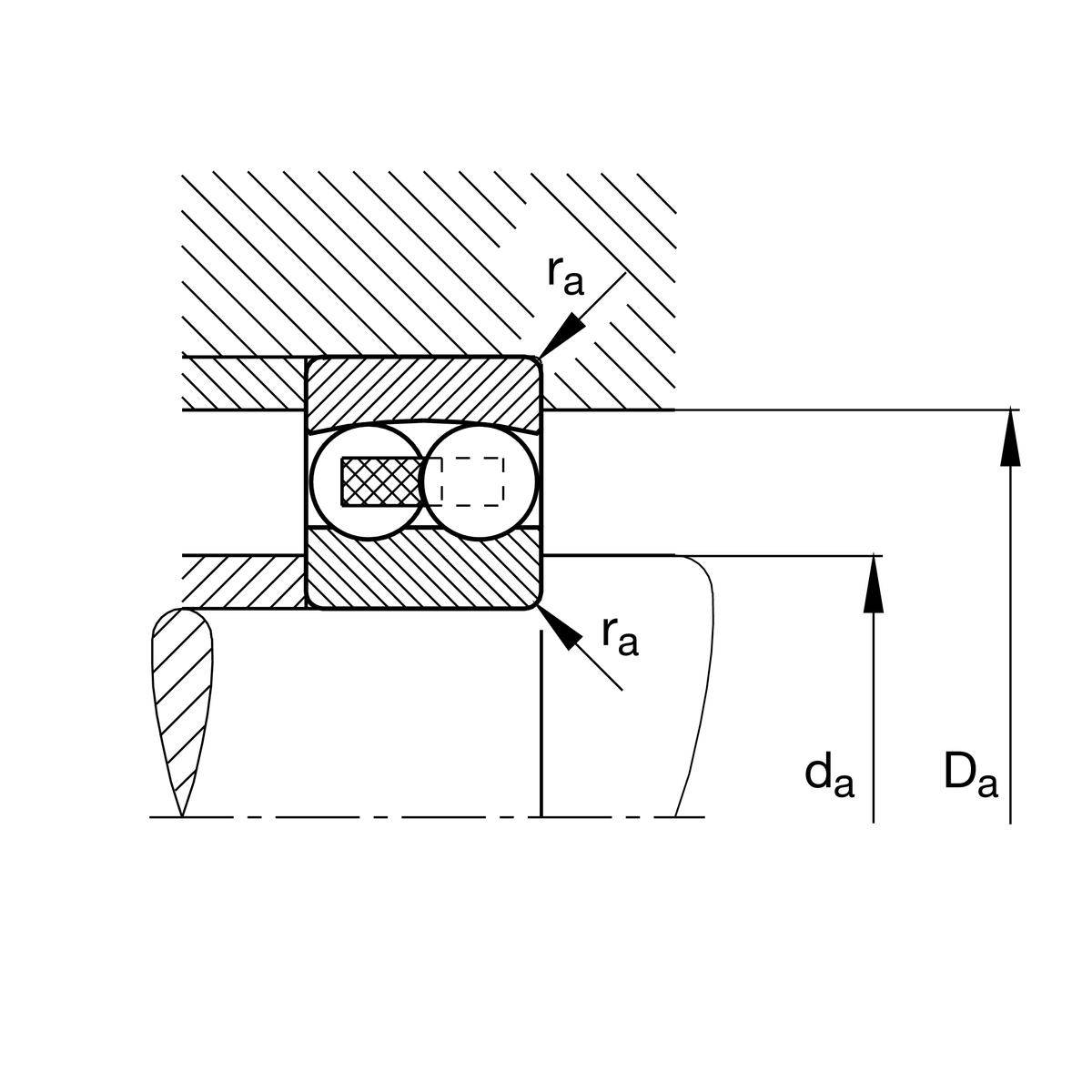

Mounting dimensions
| da min | 79 mm | Minimum diameter shaft shoulder |
| Da max | 116 mm | Maximum diameter of housing shoulder |
| ra max | 1.5 mm | Maximum fillet radius |

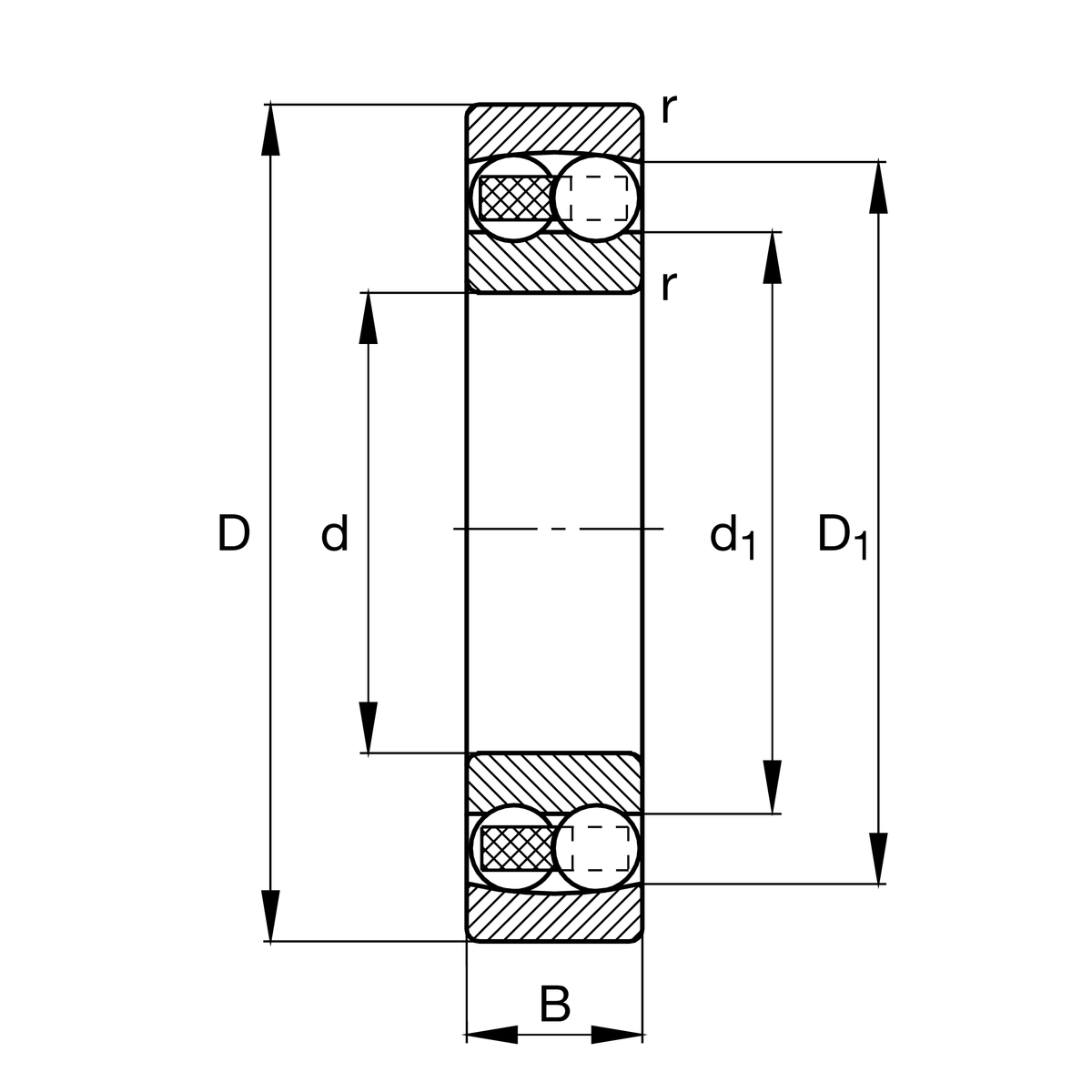

Dimensions
| rmin | 1.5 mm | Minimum chamfer dimension |
| D1 | 108.85 mm | Shoulder diameter outer ring |
| d1 | 87.58 mm | Shoulder diameter inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
Calculation factors
| e | 0.27 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.33 | Dynamic axial load factor |
| Y2 | 3.61 | Dynamic axial load factor |
| Y0 | 2.45 | Static axial load factor |
Your current product variant
| Bore type | Z | Cylindrical |
| Sealing | Without | Not sealed |
| Cage | M | solid brass cage, ball guided |
| Tolerance class | PN | Normal (PN) |
| Lubricant | Without | Bearing not greased |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
