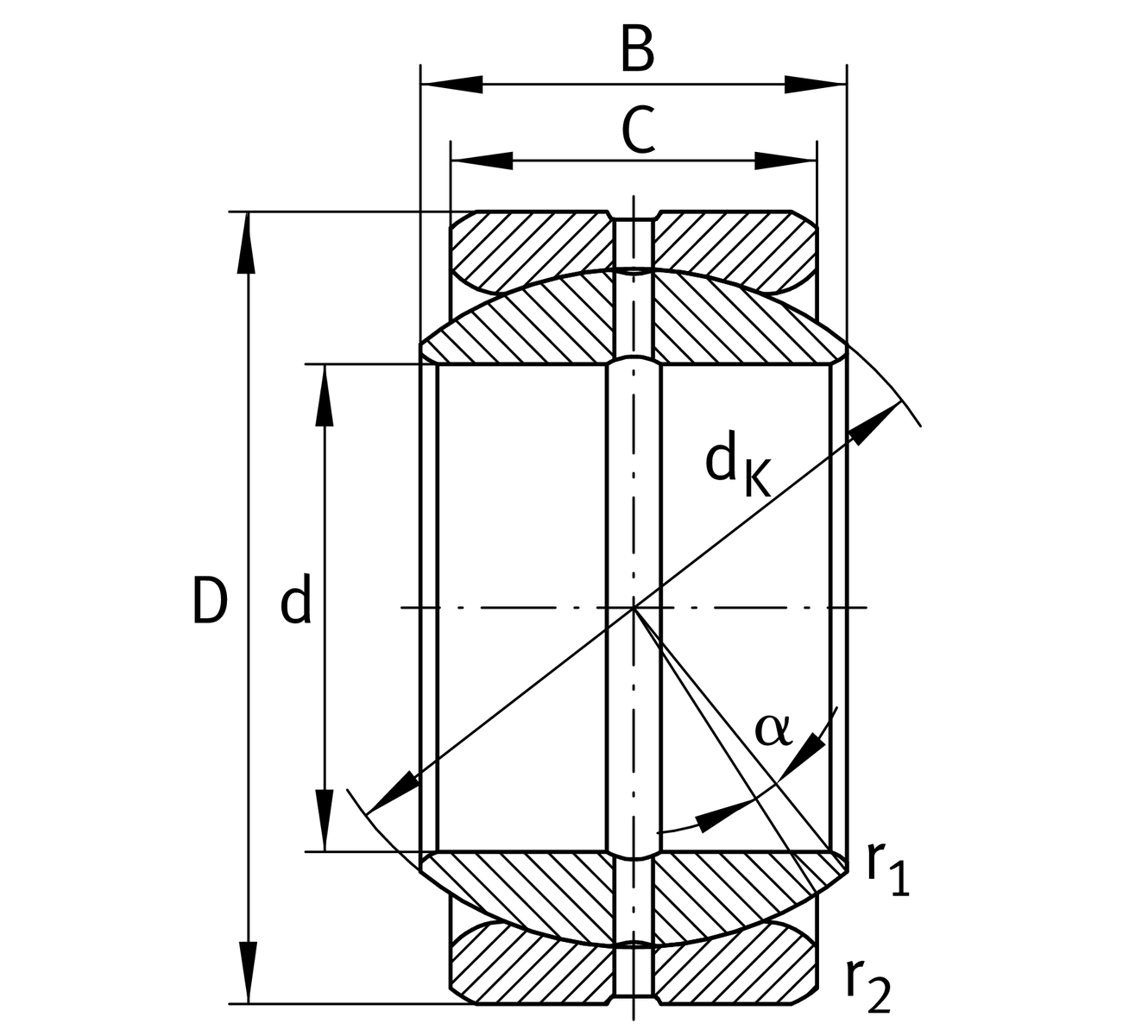

Main Dimensions & Performance Data
| d | 69.85 mm | Bore diameter bearing |
| D | 111.125 mm | Outside diameter bearing |
| B | 61.112 mm | Width Inner ring |
| Cr | 360,000 N | Basic dynamic load rating, radial |
| C0r | 1,640,000 N | Basic static load rating, radial |
| ≈m | 2.3 kg | Weight |

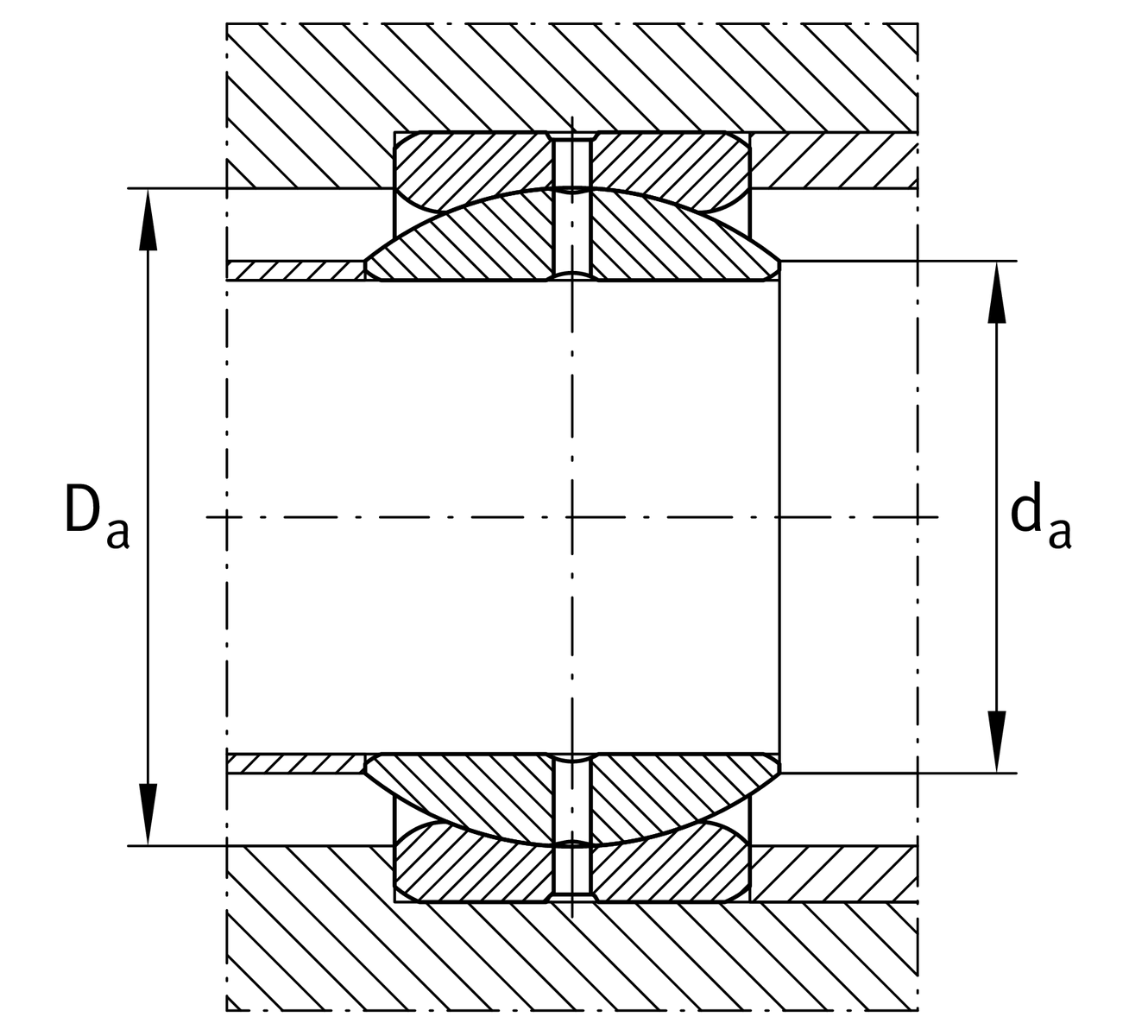

Mounting dimensions
| r1smin | 1 mm | Edge Spacing |
| r2smin | 1 mm | Edge Spacing |
| da max | 79.1 mm | Connection measure Inner ring |
| Da min | 94.5 mm | Housing Connection Diameter |
Dimensions
| C | 52.375 mm | Width Outer ring |
| dK | 100 mm | Ball diameter |
| α | 6 ° | Tilt angle |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.015 mm | Bore diameter bearing, lower tolerance |
| dT | 0.015 | Bore diameter bearing, tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.015 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| Gr | 0.1 | Radial Clearance |
| BUT | -0.15 mm | Width inner ring, lower tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -0.4 mm | Width outer ring, lower tolerance |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without |
