FAG INA Schaeffler
FAG
UCF214-43
Flanged housing unit UCF214-43
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
68.262 mm
Bore diameter
L
193 mm
Flange width
U
75.4 mm
Total height unit
Cr
66,000 N
Basic dynamic load rating, radial
C0r
44,000 N
Basic static load rating, radial
Cur
2,300 N
Fatigue load limit, radial
≈m
6.09 kg
Weight

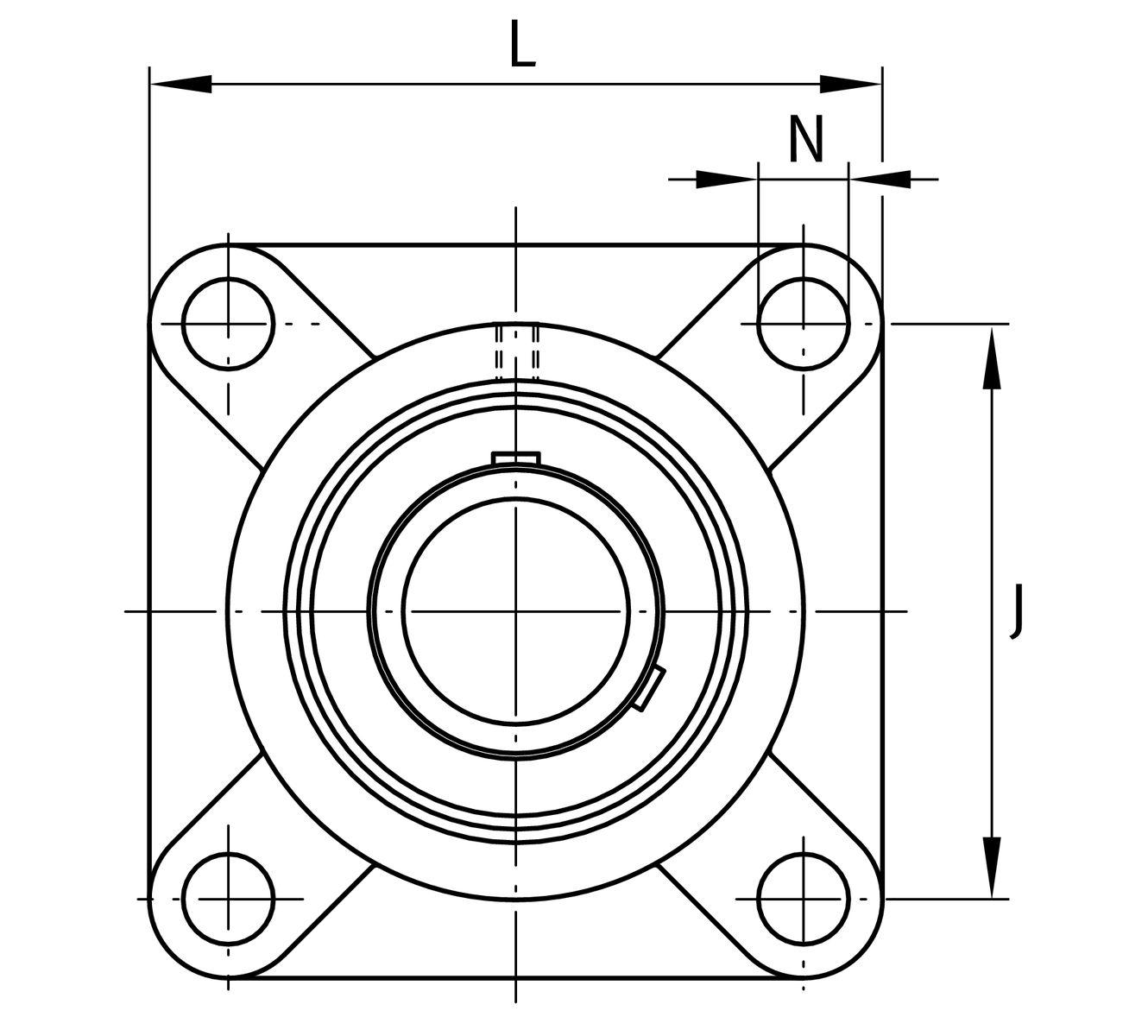

Mounting dimensions
J
152 mm
Distance fixing bore
N
19 mm
Fixing bore
N1
152 mm
Distance fixing bore
n
4
Number of screwing holes

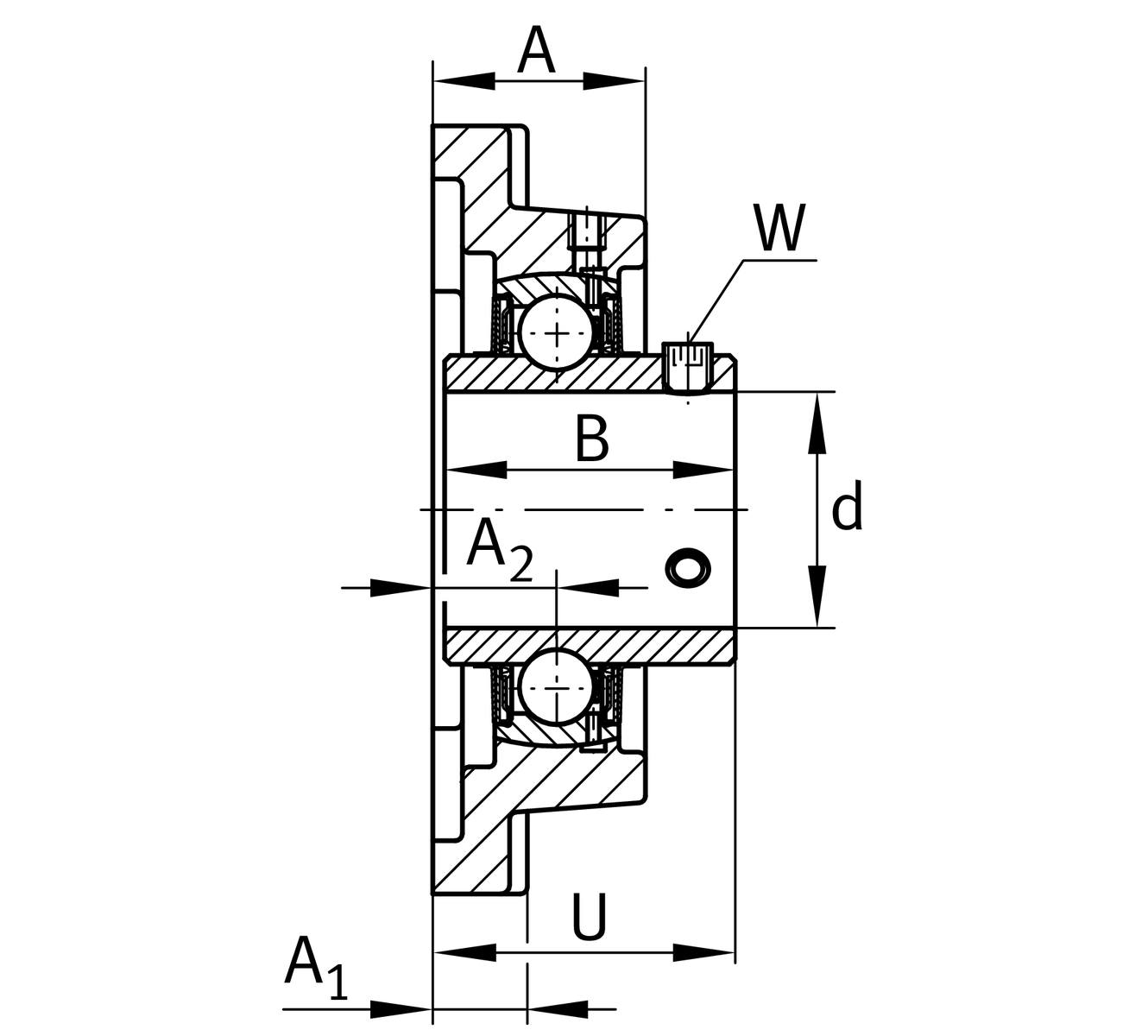

Dimensions
A
54 mm
Height housing
A1
24 mm
Thickness of flange
A2
31 mm
Distance raceway
B
75.4 mm
Width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
F214
Housing
UC214-43
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
