UKFC215
Flanged housing unit UKFC215
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
65 mm
Bore diameter
H
220 mm
Height flange
U
55 mm
Total height unit
Cr
66,000 N
Basic dynamic load rating, radial
C0r
44,500 N
Basic static load rating, radial
Cur
2,300 N
Fatigue load limit, radial
≈m
7.7 kg
Weight

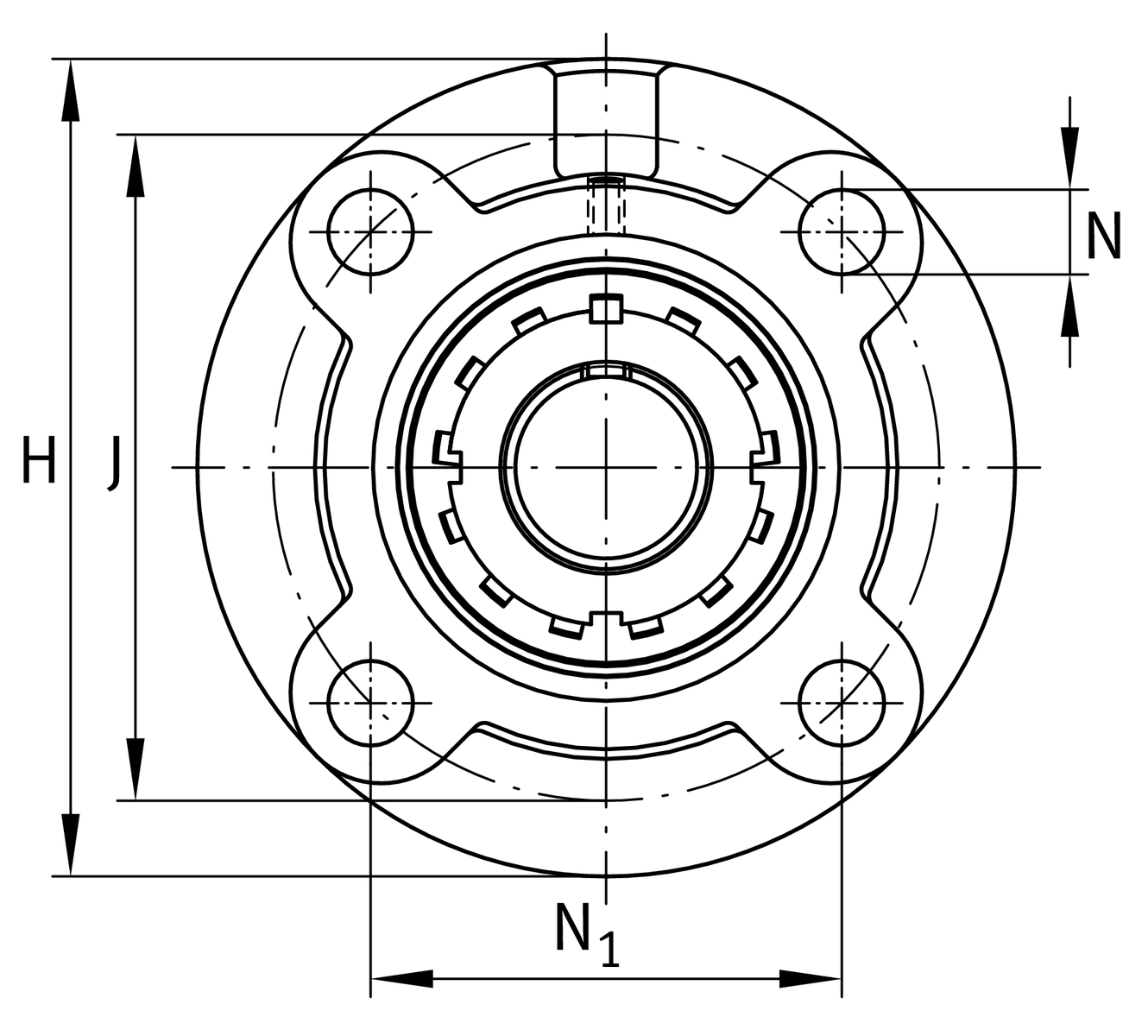

Mounting dimensions
J
184 mm
Pitch circle diameter (holes)
N
19 mm
Fixing bore
N1
130.1 mm
Distance fixing bore
T1
16 mm
Height spigot
Z
160 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

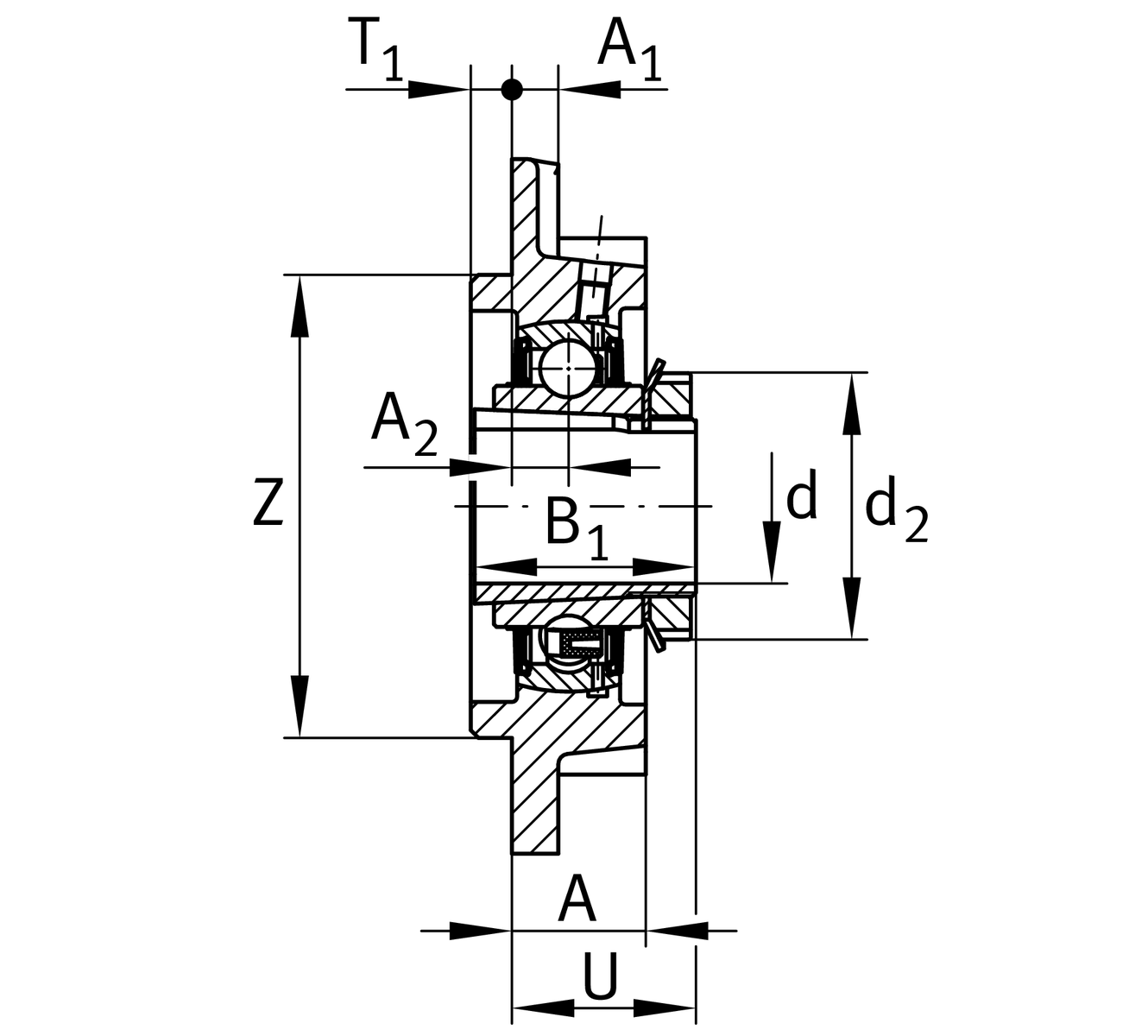

Dimensions
A
40 mm
Height housing
A1
18 mm
Thickness of flange
A2
18 mm
Distance raceway
B
44.5 mm
Width
B1
73 mm
Locking collar total width
d3
98 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
FC215
Housing
UK215
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
