Main Dimensions & Performance Data
| D | 35 mm | Outside diameter |
| de | 18 mm | Diameter of eccentric |
| B | 65.5 mm | Width |
| Cr w | 7,900 N | Basic dynamic load rating, radial |
| C0r w | 5,300 N | Basic static load rating, radial |
| Cur w | 270 N | Fatigue load limit, radial |
| nD G | 11,100 1/min | Speed on permanent grease lubrication |
| Fr per | 4,800 N | Permissible dynamic load outer ring, radial |
| ≈m | 0.145 kg | Weight |

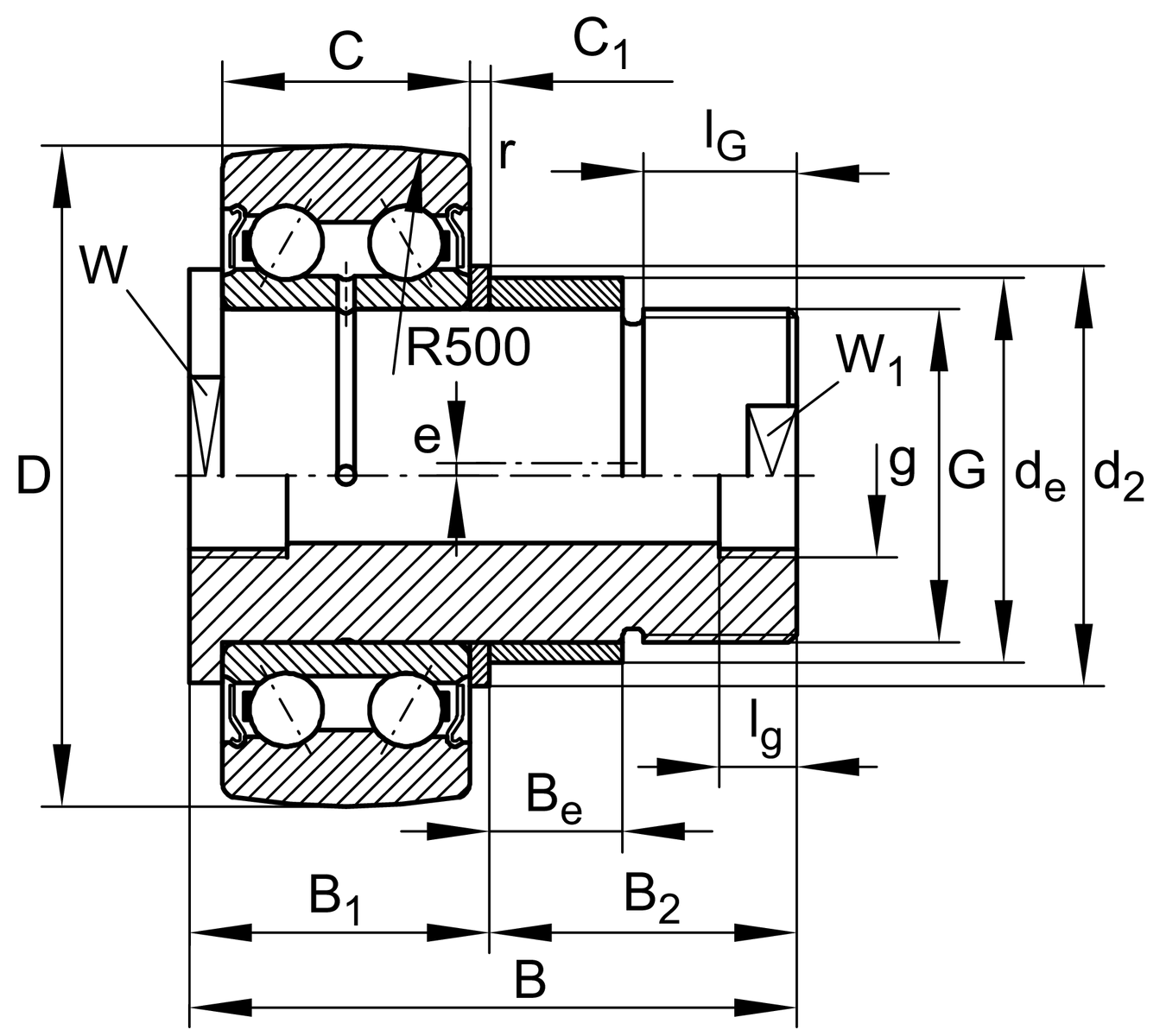

Dimensions
| B1 max | 20.5 mm | Maximum witdh of thrust washer |
| B2 | 45 mm | Bolt/stud length effectively |
| C | 15.9 mm | Width, outer ring |
| C1 | 2 mm | Protrusion outer ring to thrust washer |
| d2 | 25 mm | Stop diameter of thrust washer |
| rmin | 0.6 mm | Minimum chamfer dimension |
| W | 15 mm | Width of flats |
| W1 | 9 mm | Width of flats |
| e | 1 mm | Eccentricity |
| Be | 18 mm | Width, eccentric |
| g | M6 | Thread inside |
| lg | 6 mm | Thread length (inner) |
| G | M12X1,5 | Thread |
| IG min | 24 mm | Minimum thread length |
| R | 500 mm | Radius of outer ring outside profile |
Additional information
| MA | 30 Nm | Tightening torque nut |
Your current product variant
| Sealing | 2Z | Sealing shield on both sides |
| Outer Ring profile | R500 | R500 |
| Relubrication feature | KS | Via threaded connections on the head and stud |
| Assembling aid head | SF | Spanner flat |
| Mounting aid stud | SF | Spanner flat |
