TCJ80-XL
Flanged housing unit TCJ80-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
80 mm
Bore diameter
L
197 mm
Flange width
U
88.9 mm
Total height unit
Cr
76,000 N
Basic dynamic load rating, radial
C0r
54,000 N
Basic static load rating, radial
Cur
2,450 N
Fatigue load limit, radial
≈m
6.31 kg
Weight

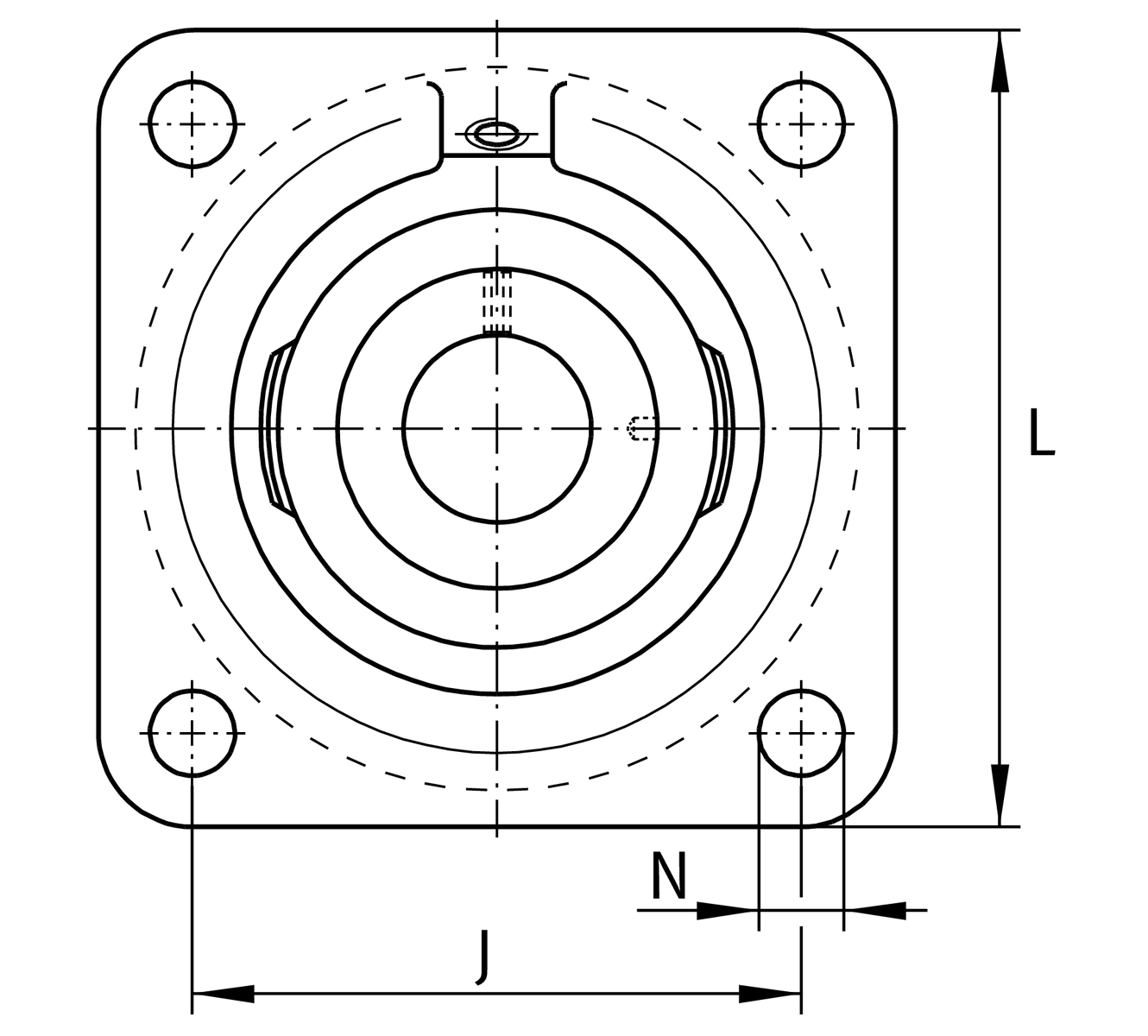

Mounting dimensions
J
153 mm
Distance fixing bore
N
23 mm
Fixing bore
W
6 mm
Width across flats
n
4
Number of screwing holes

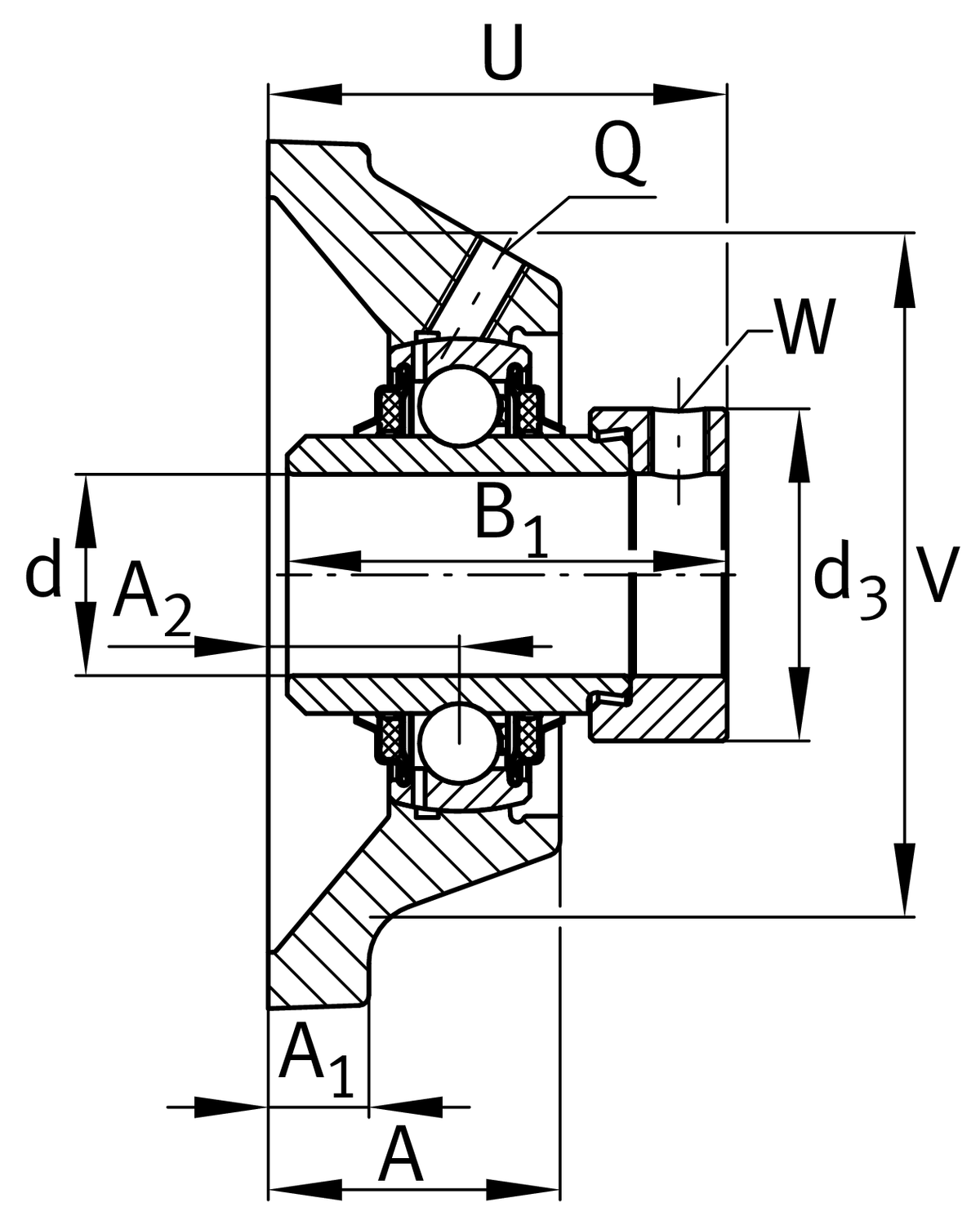

Dimensions
A
55.8 mm
Height housing
A1
20 mm
Thickness of flange
A2
41.3 mm
Distance raceway
B1
70.7 mm
Locking collar total width
V
180 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication
d3
108 mm
Outside diameter locking device

Additional information
1
Number of housings
CJ16
Housing
GE80-XL-KTT-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
