Main Dimensions & Performance Data
| d | 80 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| B | 30 mm | Width |
| Cr | 112,000 N | Basic dynamic load rating, radial |
| C0r | 206,000 N | Basic static load rating, radial |
| Cur | 30,500 N | Fatigue load limit, radial |
| nG | 3,550 1/min | Limiting speed |
| nϑr | 2,090 1/min | Reference speed |
| ≈m | 0.843 kg | Weight |

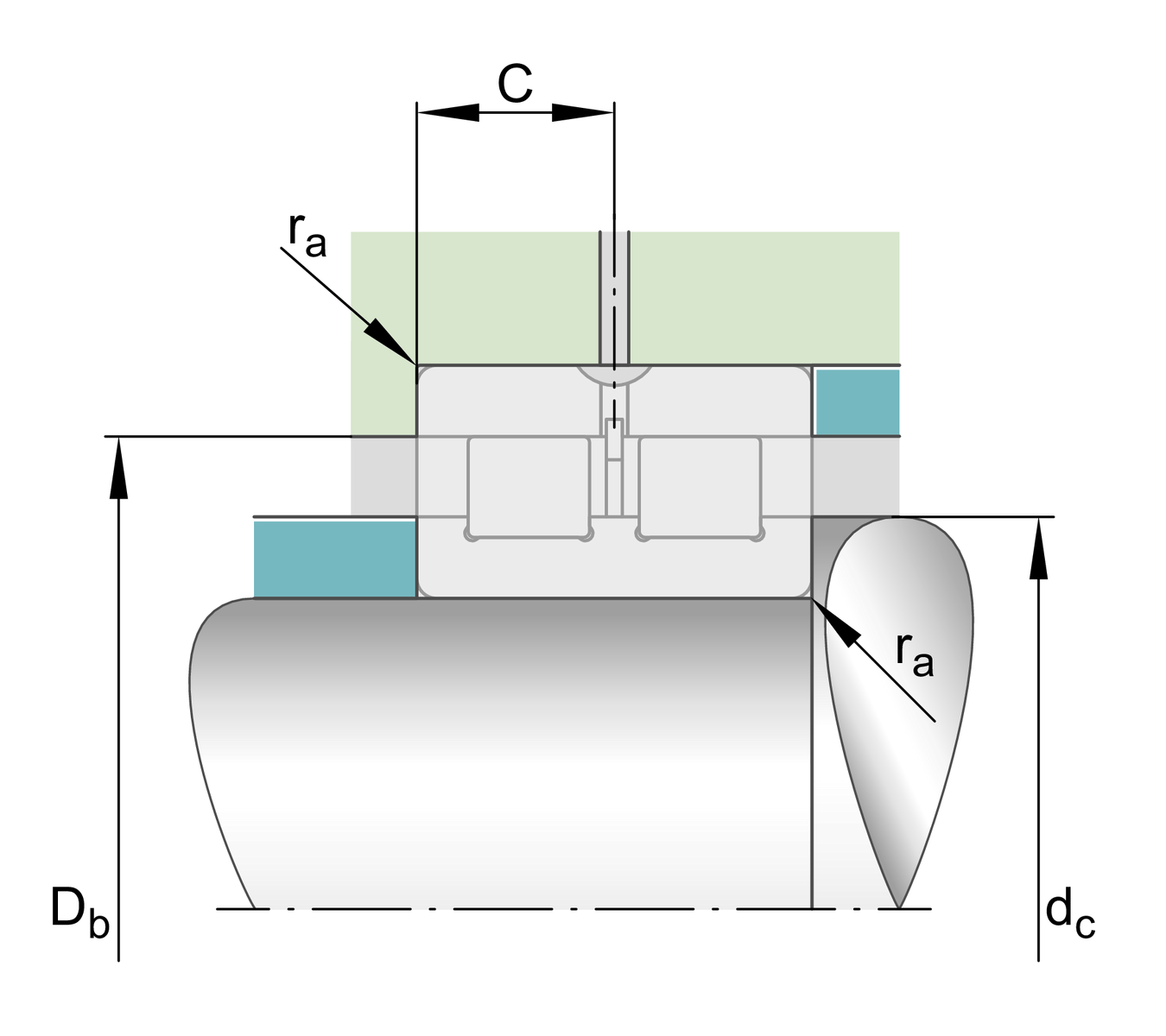

Mounting dimensions
| dc min | 91.5 mm | Minimum shaft shoulder |
| da min | 91.4 mm | Minimum diameter shaft shoulder |
| De min | 100.5 mm | Minimum diameter of housing shoulder |
| ra max | 1 mm | Maximum recess radius |

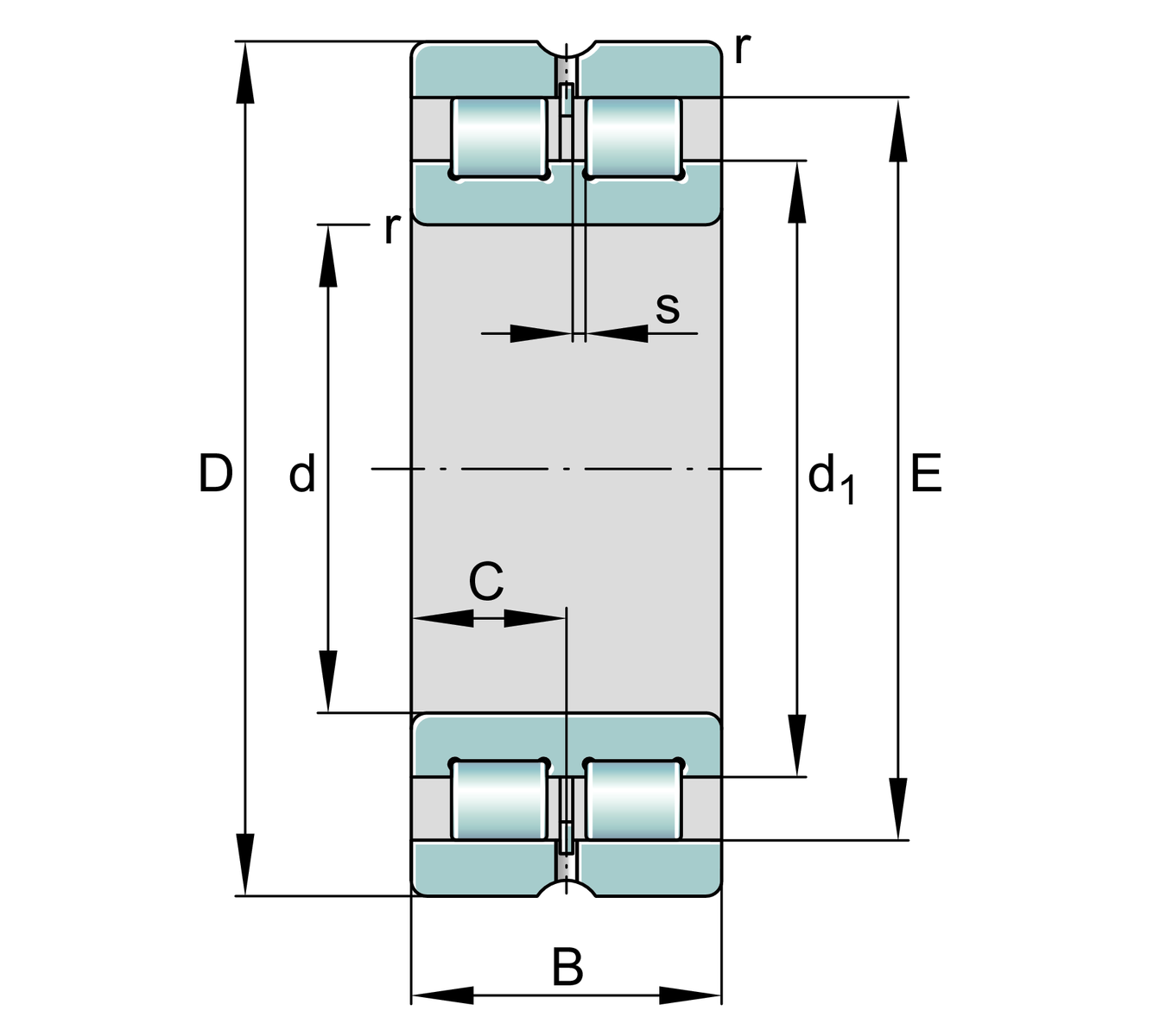

Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| s | 1 mm | Axial displacement |
| C | 15 mm | Distance to lubrication hole |
| d1 max | 91.4 mm | Maximum rib diameter inner ring |
| E | 100.78 mm | Raceway diameter outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
NNCL4916V | Bearing designation DIN5412 |
Your current product variant
| Design | A | Internal Variant A |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 2 | Double-row design |
