Main Dimensions & Performance Data
| Di | 10 mm | Inner diameter |
| Do | 12 mm | Outer diameter |
| B | 10 mm | Width |
| Cr | 7,000 N | Basic dynamic load rating, radial |
| C0r | 14,000 N | Basic static load rating, radial |
| ≈m | 1.9 g | Weight |

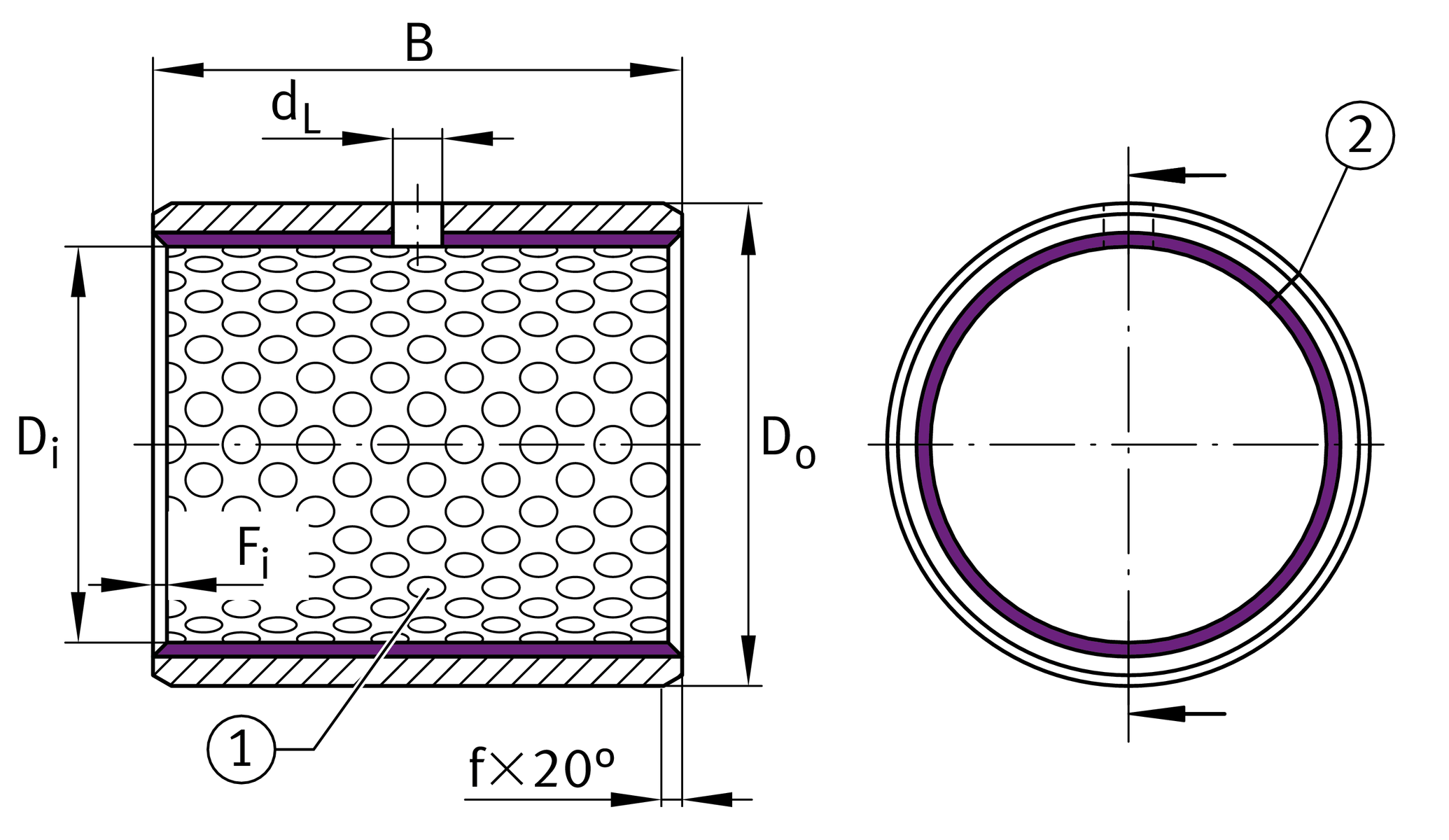

Dimensions
| f | 20 ° | Chamfer angle outside diameter |
| dL | 3 mm | Diameter lubrication hole |
| f | 0.6 mm | Outer chamfer |
| Fi min | 0.1 mm | Inner edge break, min. |
| Fi max | 0.6 mm | Inner edge break, max. |
| Di OT | 0.099 mm | Inner diameter, upper tolerance |
| Do OT | 0.065 mm | Outside diameter, upper tolerance |
| Di UT | 0.049 mm | Inner diameter, lower tolerance |
| Do UT | 0.03 mm | Outside diameter, lower tolerance |
| s3 | 1 mm | Wall thickness |
| s3 OT | 0.005 mm | Wall thickness, upper tolerance |
| s3 UT | -0.02 mm | Wall thickness, lower tolerance |
| BUT | -0.25 mm | Width, lower tolerance |
| BOT | 0.25 mm | Width, upper tolerance |
| fOT | 0.4 mm | Outer chamfer, upper tolerance |
| fUT | -0.4 mm | Outer chamfer, lower tolerance |
| Fi | 0.1 mm | Inner edge break |
Temperature range
| Tmin | -40 °C | Operating temperature min. |
| Tmax | 110 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | Not sealed |
| Material sliding Layer | E50 | Low-maintenance sliding layer with lubrication pockets E50 |
| Material back | Steel |
