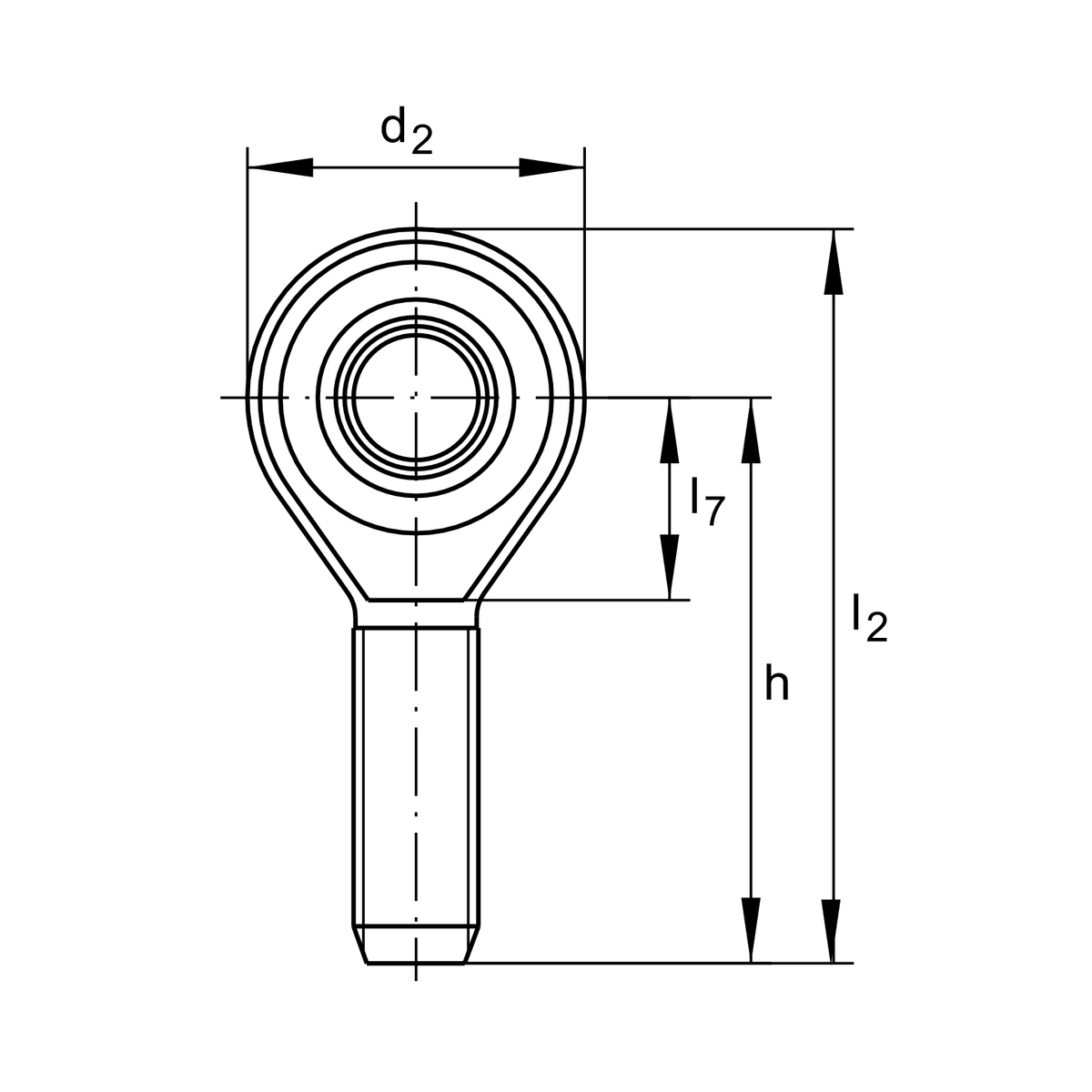

Main Dimensions & Performance Data
| d2 | 21 mm | Outer diameter eye |
| Cr | 7,650 N | Basic dynamic load rating |
| C0r | 2,500 N | Basic static load rating |
| d | 6 mm | Bore diameter bearing |
| D | 16 mm | Outside diameter bearing |
| l2 | 46.5 mm | Total length |
| B | 9 mm | Width inner ring |
| ≈m | 20.1 g | Weight |

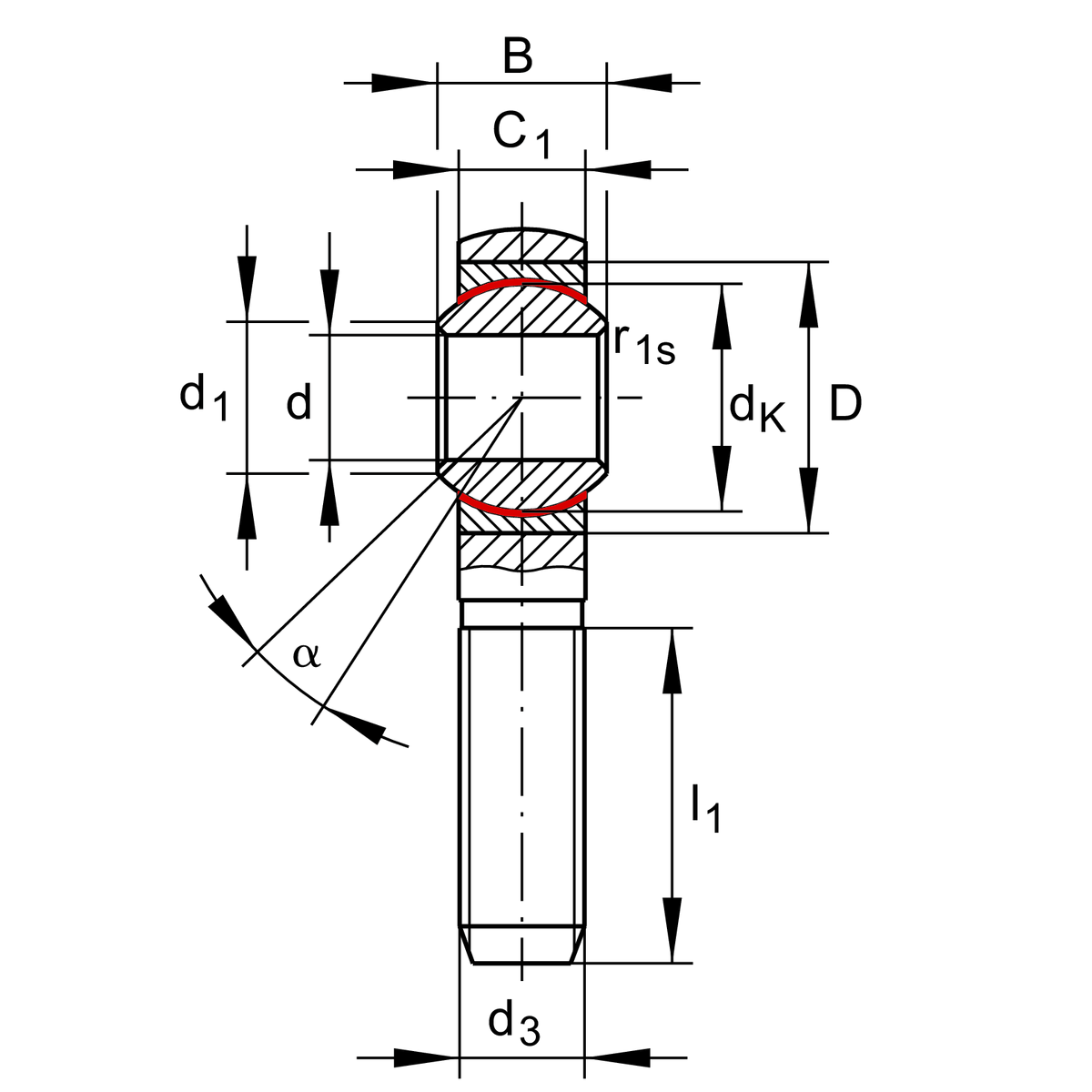

Dimensions
| dk | 12.7 mm | Ball diameter |
| d1 | 9 mm | Outer flange diameter inner ring |
| d3 | M6 | Thread size |
| h | 36 mm | Length of thread |
| C1 | 6.75 mm | Width of the rod end |
| alpha | 13 ° | Tilt angle |
| l1 | 21 mm | Thread length |
| l7 | 10 mm | Length of the flat surface from the bearing bore centre to the shank |
| BUT | -0.12 mm | Width inner ring , lower tolerance |
| BOT | 0 mm | Width inner ring; upper tolerance |
| dT | H7 | Bore diameter_bearing_tolerance |
| dUT | 0 mm | Bore diameter, lower tolerance |
| dOT | 0.012 mm | Bore diameter bearing upper tolerance |
| Gr | 0,003 - 0,035 | Radial clearance |
| Grmax | 0.035 mm | Radial clearance, maximum |
| Grmin | 0.003 mm | Radial clearance, minimum |
Temperature range
| Tmin | -10 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Mounting dimensions
| r1s | 0.3 mm | Smallest single chamfer dimension, inner ring |
Your current product variant
| Sealing | Without | |
| Material sliding Layer | Sliding foil | Sliding foil |
