HEATER1600-SMART-400V

Induction heating device HEATER1600-SMART-400V

Thêm vào yêu cầu báo giá

Technical data

U	400 V	Operating voltage
f	50 – 60 Hz	Power frequency
P	40 kVA	Power consumption
I	100 A	Current rating
ϑ_{h max}	240 °C	Max. heating temperature
	0 – 99 min	Heating time
	Touch	Display
	2	Magnetic probe, quantity
≈m	920 kg	Weight

Functions

	+	Temperature hold
	+	Automatic demagnetization, <2A/cm
	—	Swivel arm
	+	Log function
	+	Delta-T control
	+	Temperature control
	+	Time control
	+	Temperature and time control
	+	Temperature and speed control
	+	Overheating protection
	only in temp. and speed mode	Automatic power reduction
	+	Device supports horizontal / lying heating of the workpiece
	—	Device supports vertical / hanging heating of the workpiece

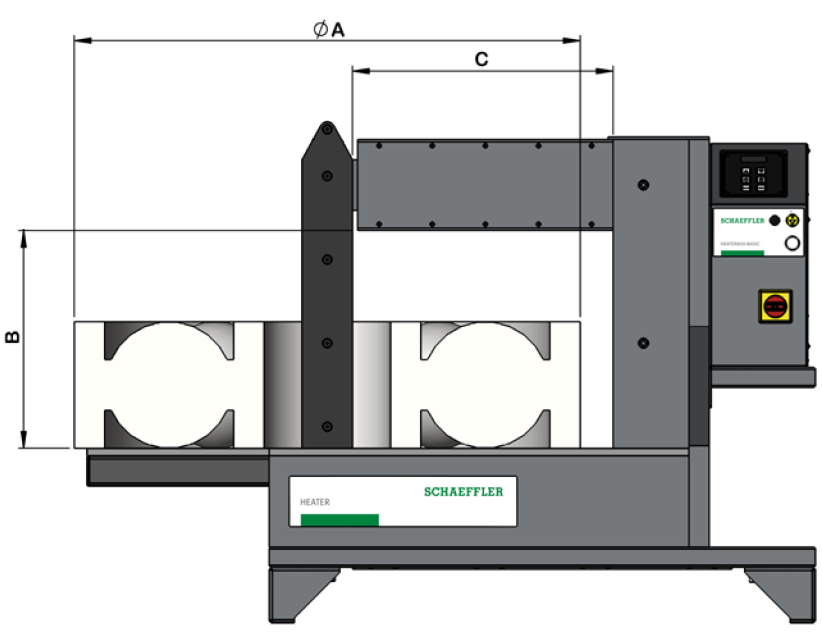

Dimensions

	1,520 mm	Length HEATER
	750 mm	Width HEATER
	1,415 mm	Height HEATER
B	710 mm	Space between poles
C	780 mm	Pole length

Workpiece to be heated

	215 mm	Min. inner diameter workpiece, horizontal heating: with included yoke
	85 mm	Min. inner diameter workpiece, horizontal heating: with optional yoke
ØA_max	1,700 mm	Max. outer diameter workpiece
	700 mm	Max. workpiece width, horizontal heating
m_{b max}	1,600 kg	Max. workpiece weight

Additional information

	1	Yokes included, quantity
	150x150	Yokes included, cross section (mm²)

Your current product variant

Series	SMART	Extended functionality
Version	1600	mb max = 1600 kg
