Main Dimensions & Performance Data
| Cr | 29,600 N | Basic dynamic load rating, radial |
| C0r | 81,100 N | Basic static load rating, radial |
| d | 20 mm | Bore diameter bearing |
| d2 | 56 mm | Outer eye diameter |
| l4 | 78 mm | Total length internal thread head |
| D | 35 mm | Outside diameter bearing |
| B | 16 mm | Width inner ring |
| ≈m | 0.45 kg | Weight |

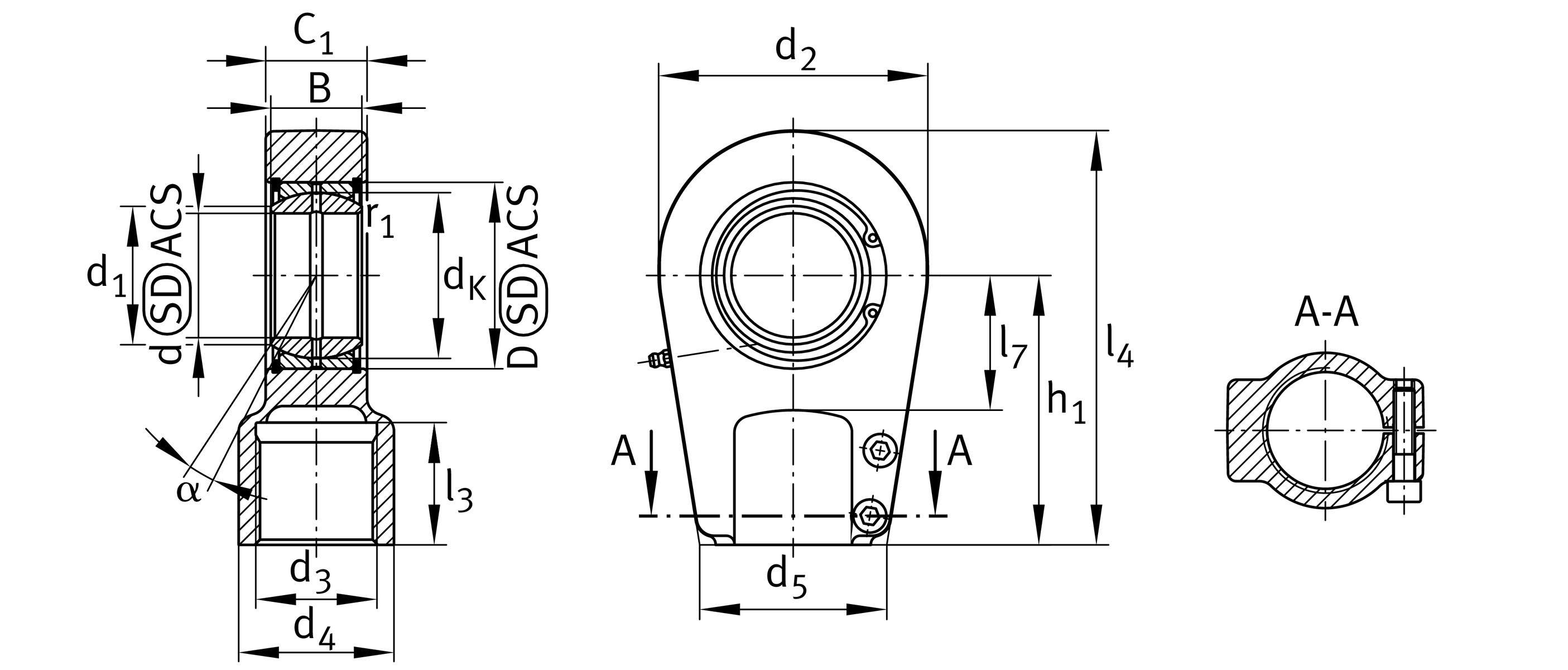

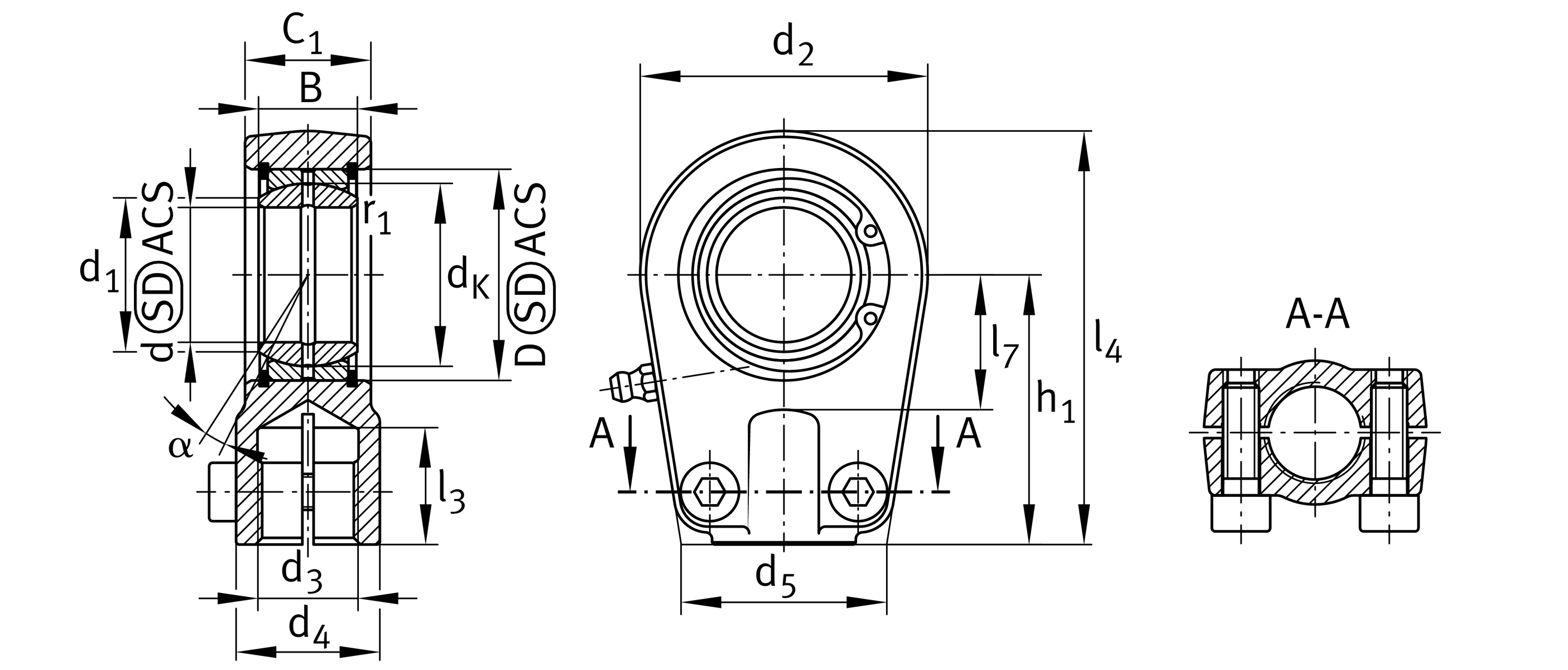

Dimensions
| α | 9 ° | Tilt angle |
| C1 | 19 mm | Width of the rod end |
| dK | 29 mm | Ball diameter |
| d3 | M16x1,5 | Thread size |
| d4 | 25 mm | Shank diameter |
| d5 | 41 mm | Shank diameter, large |
| d 7 | M8x20 | Diameter |
| h1 | 50 mm | Shank Length Internal thread head |
| l3 | 17 mm | Thread length Internal thread |
| l7 | 25 mm | Distance drilling with/shaft start |
| dUT | -0.01 mm | Bore diameter bearing, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| MA | 32 Nm | Tightening torque |
| Gr | CN | Radial Clearance |
| Grmin | 0.03 mm | Radial clearance, minimum |
| Grmax | 0.082 mm | Radial clearance, maximum |
Mounting dimensions
| r1smin | 0.3 mm | Edge Spacing |
| d1 | 24.2 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
