Main Dimensions & Performance Data
| d | 80 mm | Bore diameter |
| D | 170 mm | Outside diameter |
| B | 58 mm | Width |
| Cr | 495,000 N | Basic dynamic load rating, radial |
| C0r | 510,000 N | Basic static load rating, radial |
| Cur | 46,500 N | Fatigue load limit, radial |
| nG | 4,250 1/min | Limiting speed |
| nϑr | 3,400 1/min | Reference speed |
| ≈m | 6.098 kg | Weight |

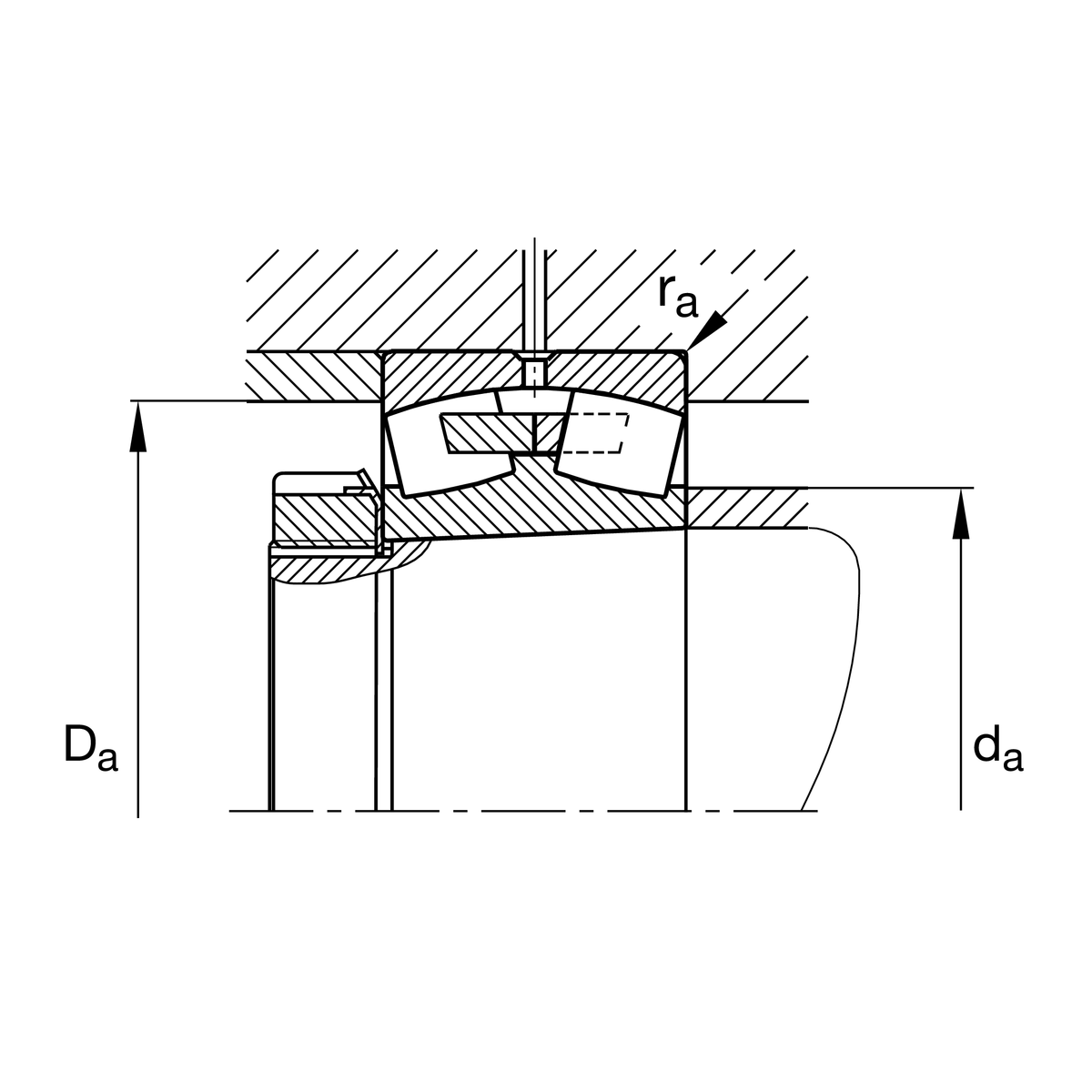

Mounting dimensions
| da min | 92 mm | Minimum diameter shaft shoulder |
| Da max | 158 mm | Maximum diameter of housing shoulder |
| ra max | 2.1 mm | Maximum recess radius |
| da max | 98 mm | Maximum diameter of shaft shoulder |
| db min | 88 mm | Minimum cavity diameter of the sleeve |
| Ba min | 5 mm | Minimum cavity width of the sleeve |
Dimensions
| rmin | 2.1 mm | Minimum chamfer dimension |
| D1 | 145.1 mm | Bore diameter outer ring |
| d2 | 98.3 mm | Raceway diameter of the inner ring |
| ds | 4.8 mm | Diameter lubrication hole |
| ns | 9.5 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.34 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 1.99 | Dynamic axial load factor |
| Y2 | 2.96 | Dynamic axial load factor |
| Y0 | 1.94 | Static axial load factor |
Additional information
H2316 | Adapter sleeve | |
AHX2316 | Withdrawal sleeve |
Your current product variant
| Design | E1A | without central rip |
| Bore type | K | Tapered, taper 1:12 |
| Cage | MA | Solid brass cage |
| Radial internal clearance | C4 (Group 4) | Internal clearance larger than C3 |
| Relubrication feature | Standard | |
| Spherical roller bearing for vibrating screens | T41A | for vibrating screens |
