TSHE60-XL-N
Plummer block housing unit TSHE60-XL-N
Thêm vào yêu cầu báo giá

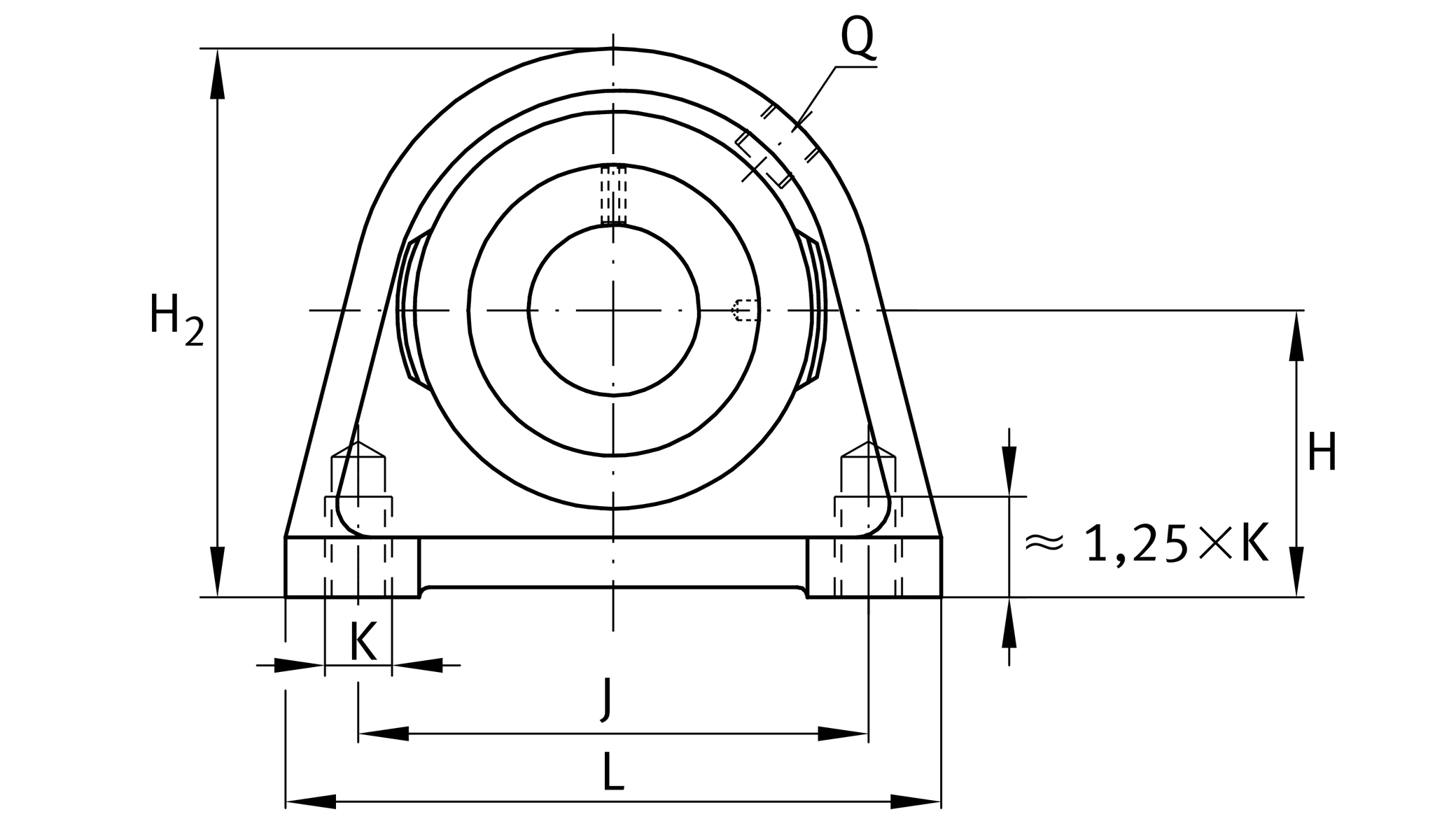

Main Dimensions & Performance Data
d
60 mm
Bore diameter
L
150 mm
Length total
H2
140 mm
Height
≈m
4.21 kg
Weight

Mounting dimensions
J
118 mm
Distance fixing bore
K
M16
Thread fixing bore

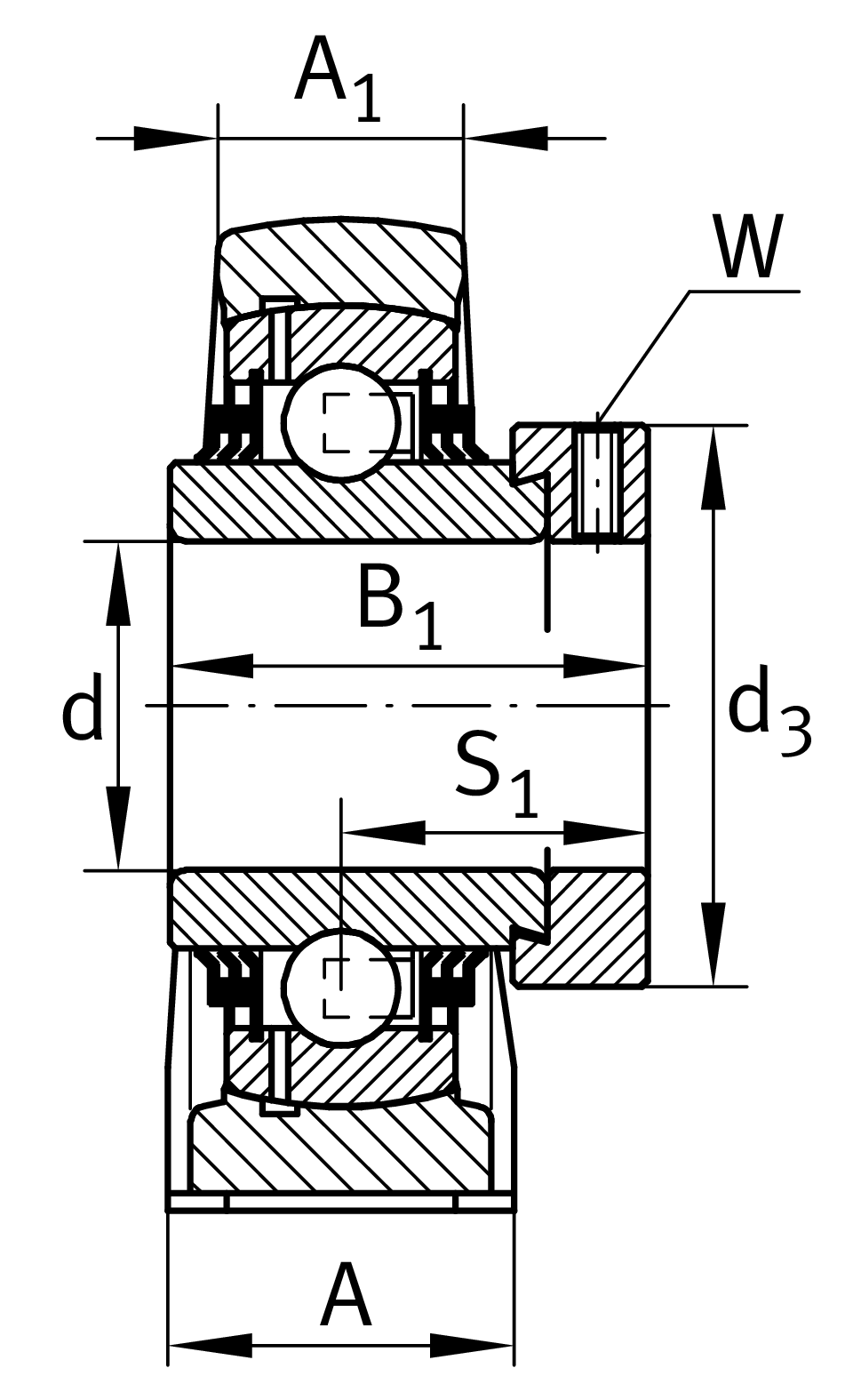

Dimensions
H
69.9 mm
Distance shaft axis
A
60 mm
Width (base)
A1
42 mm
Width (head)
Q
M6
Connection thread for lubrication
B1
77.9 mm
Locking collar total width
S1
46.9 mm
Distance of raceway to locking collar

Additional information
SHE12
Housing
GE60-XL-KTT-B
Bearing designation
KASK12
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
