TME60-XL-N
Flanged housing unit TME60-XL-N
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
60 mm
Bore diameter
H
195 mm
Height flange
B1
77.9 mm
Locking collar total width
U
45.9 mm
Total height unit
Cr
54,000 N
Basic dynamic load rating, radial
C0r
36,000 N
Basic static load rating, radial
Cur
1,710 N
Fatigue load limit, radial
≈m
4.04 kg
Weight

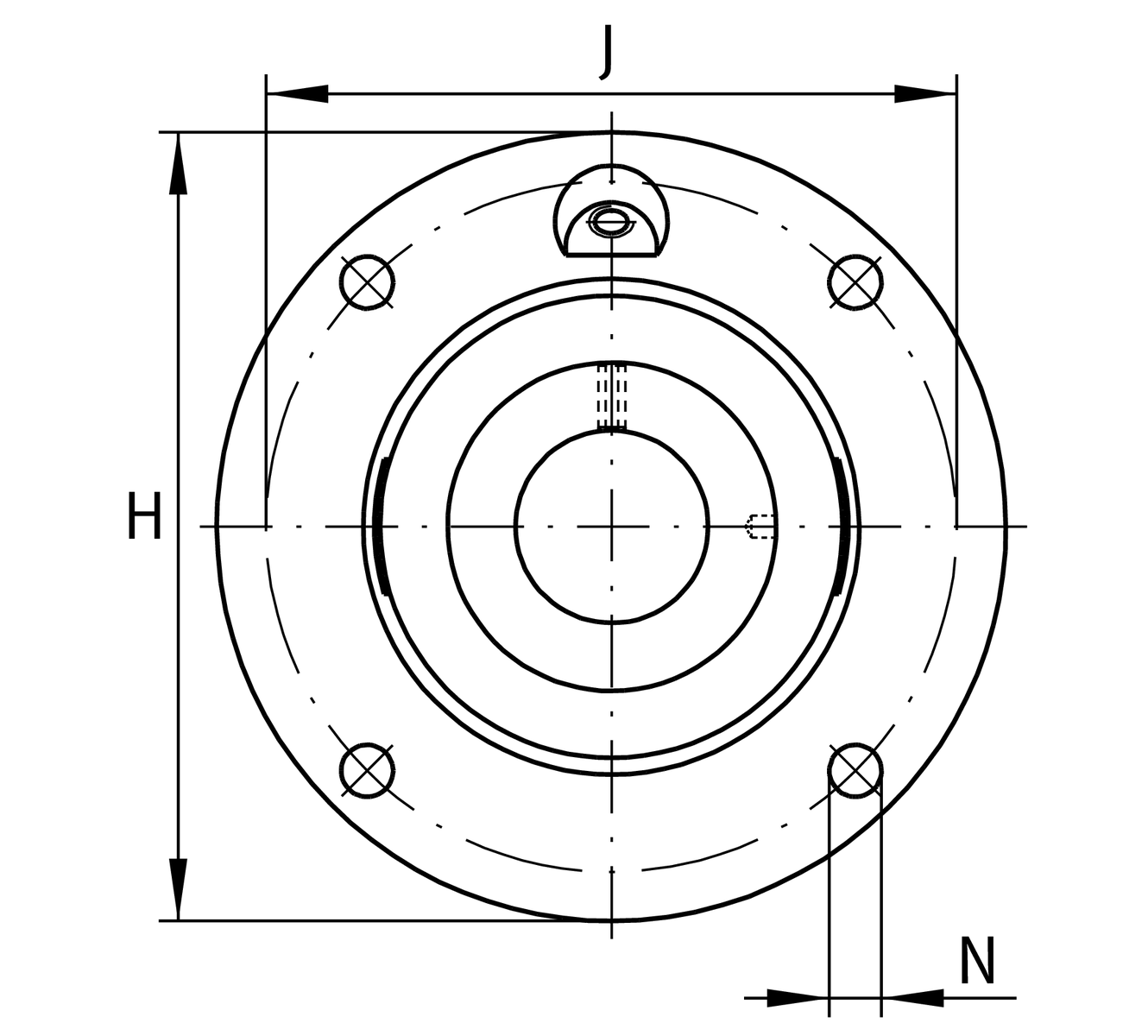

Mounting dimensions
J
160 mm
Pitch circle diameter (holes)
N
18 mm
Fixing bore
Z
135 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

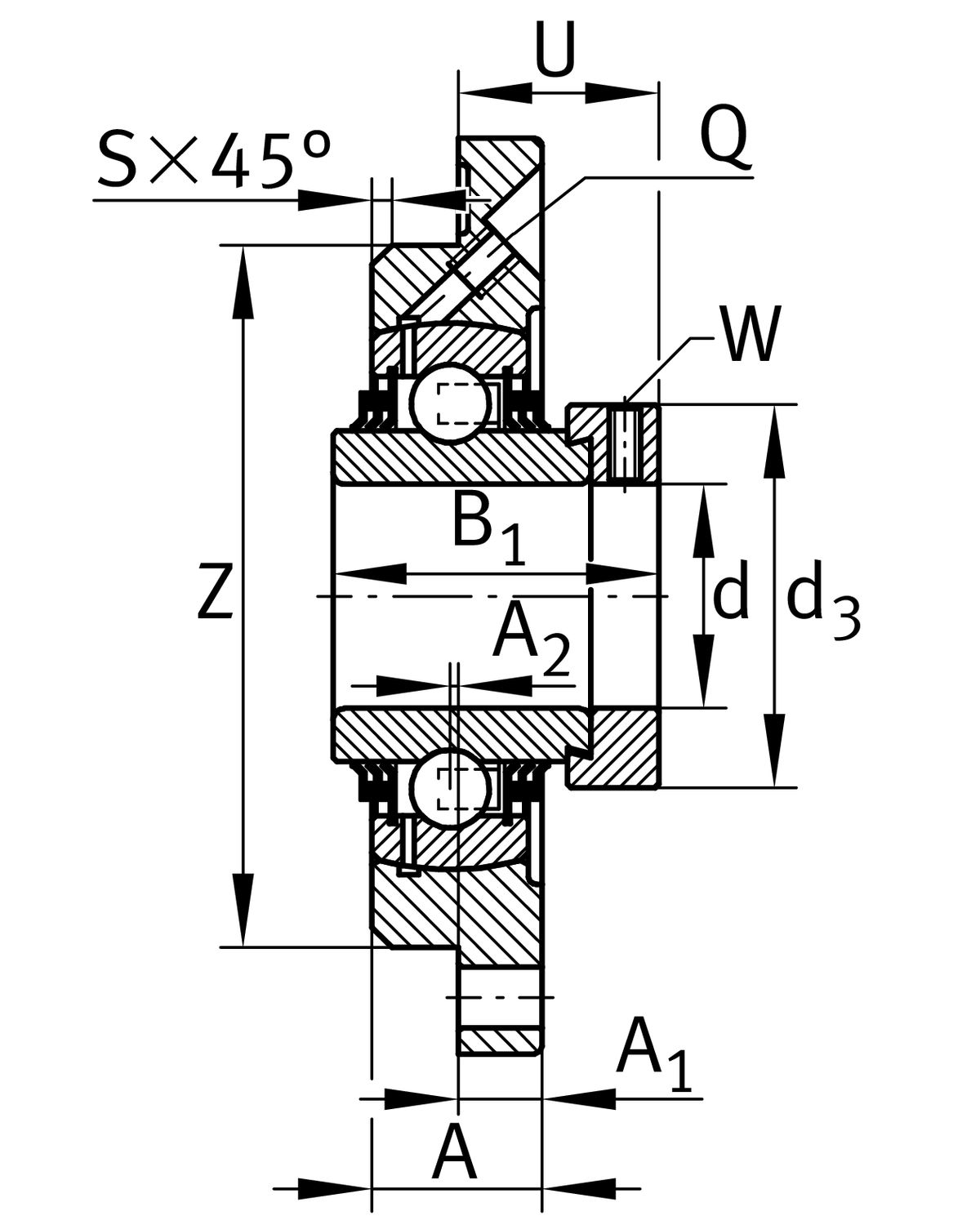

Dimensions
A
29 mm
Height housing
A1
16 mm
Thickness of flange
A2
1 mm
Distance raceway
S
3 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
GG.ME12-N
Housing
GE60-XL-KTT-B
Bearing designation
KASK12
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
