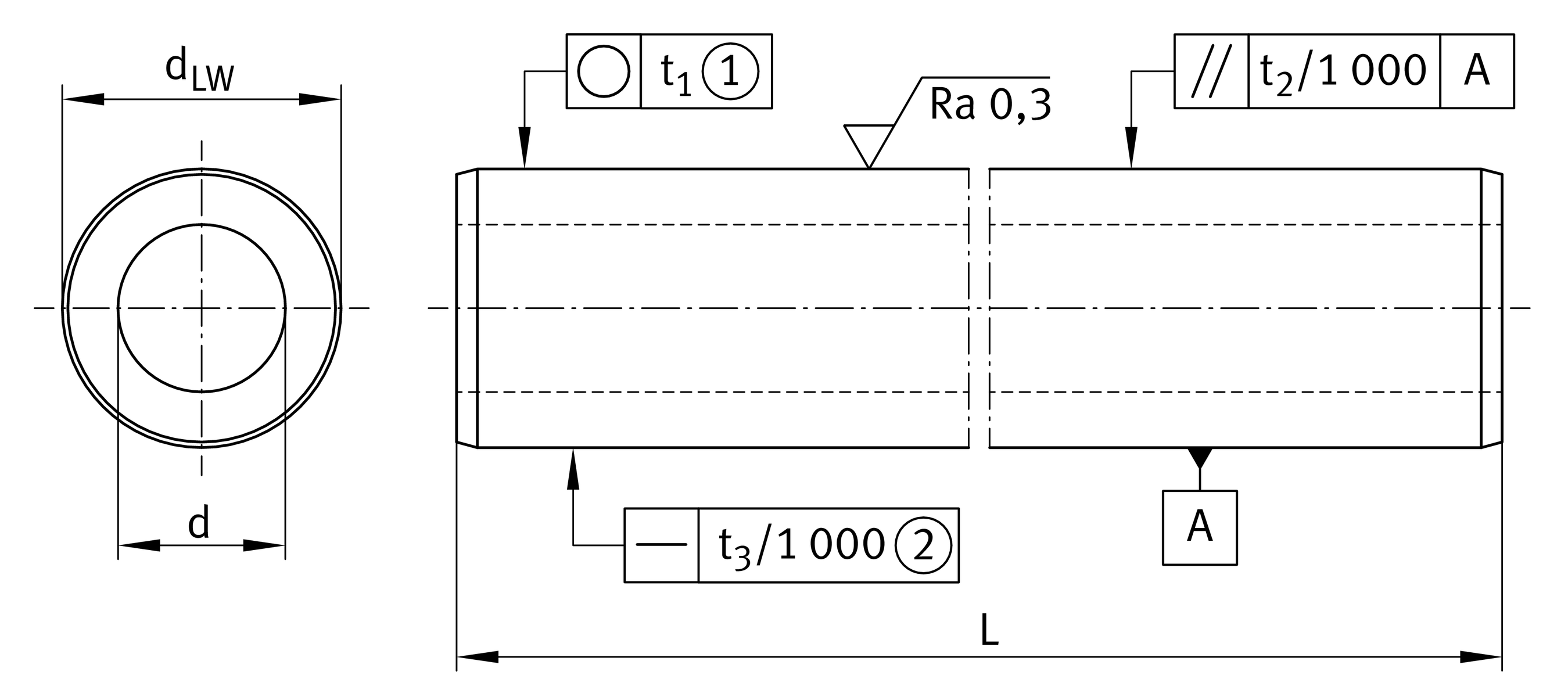

Main Dimensions & Performance Data
| dLW | 30 mm | Diameter Shaft |
| dLWTol | h7 | Diameter tolerance shaft |
| h7Tol | 0 µm | Diameter Shaft high |
| h7Tol | -21 µm | Diameter Shaft low |
| d | 18 mm | inner diameter |
| dTol | 0.15 mm | Inner diameter tolerance high |
| dTol | -0.15 mm | Inner diameter tolerance low |
| Lmax | 7,300 mm | Length total maximum |
| ≈m | 3.55 kg/m | Weight |
Mounting dimensions
| SHDmin | 1.5 mm | Surface Hardness Depth 1 |
| t2 | 9 µm | Parallelism |
| t3 | 0.2 µm | Straightness |
Your current product variant
| Size code | 30 | |
| Tolerance diameter | h7 | |
| Material | C60 | Heat treatable steel (material no.:1.0601) |
