Main Dimensions & Performance Data
| d | 140 mm | Bore diameter inner ring |
| D | 175 mm | Outside diameter |
| H | 18 mm | Height |
| Cr | 50,000 N | Basic dynamic load rating, radial |
| C0r | 95,000 N | Basic static load rating, radial |
| Ca | 121,000 N | Fatigue load limit, axial |
| Coa | 475,000 N | Basic static load rating, axial |
| Cur | 9,000 N | Fatigue limit load, radial |
| Cua | 36,500 N | Fatigue limit load, axial |
| nG | 450 1/min | Limiting speed |
| nϑr | 1,700 1/min | Reference speed |
| ≈m | 0.69 kg | Weight |

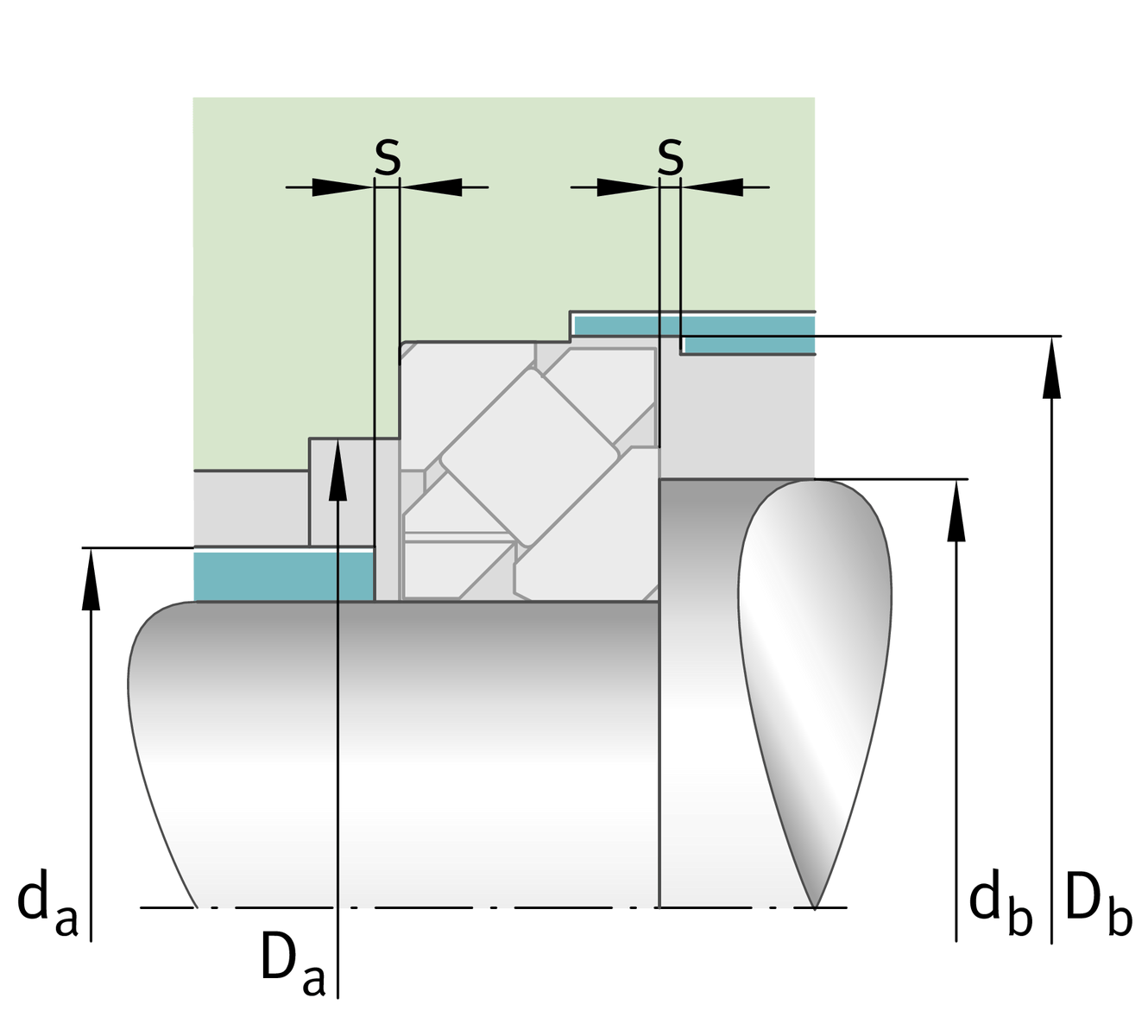

Mounting dimensions
| Da | 156 mm | Maximum diameter of housing shoulde |
| db | 159 mm | Minimum shaft shoulder |
| Dbmin | 176 mm | Housing undercut for cage |
| s | 1.5 mm | minimum distance |

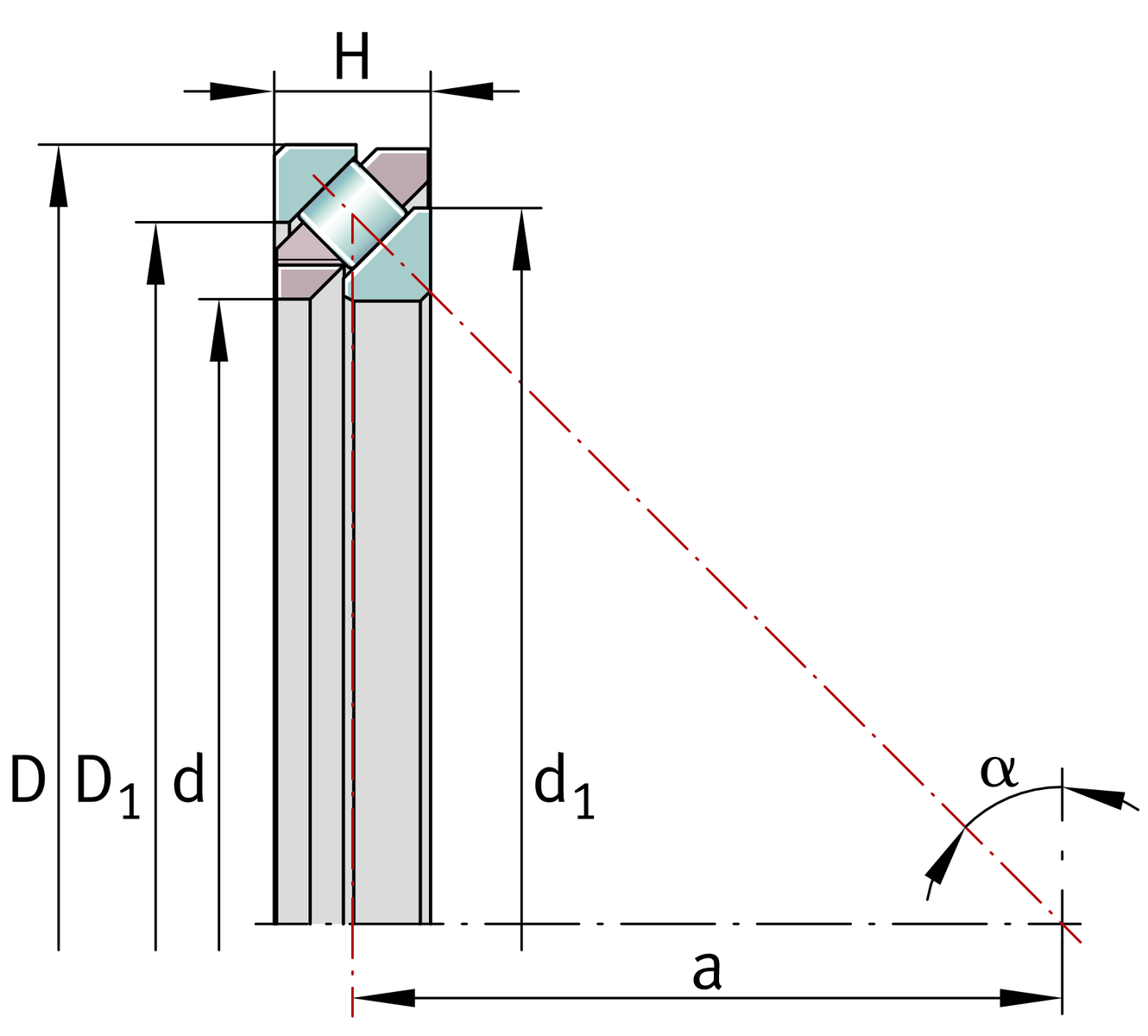

Dimensions
| D1 | 156 mm | Bore diameter outer ring |
| d1 | 159 mm | Outside diameter inner ring |
| a | 78.75 mm | Contact point distance |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
