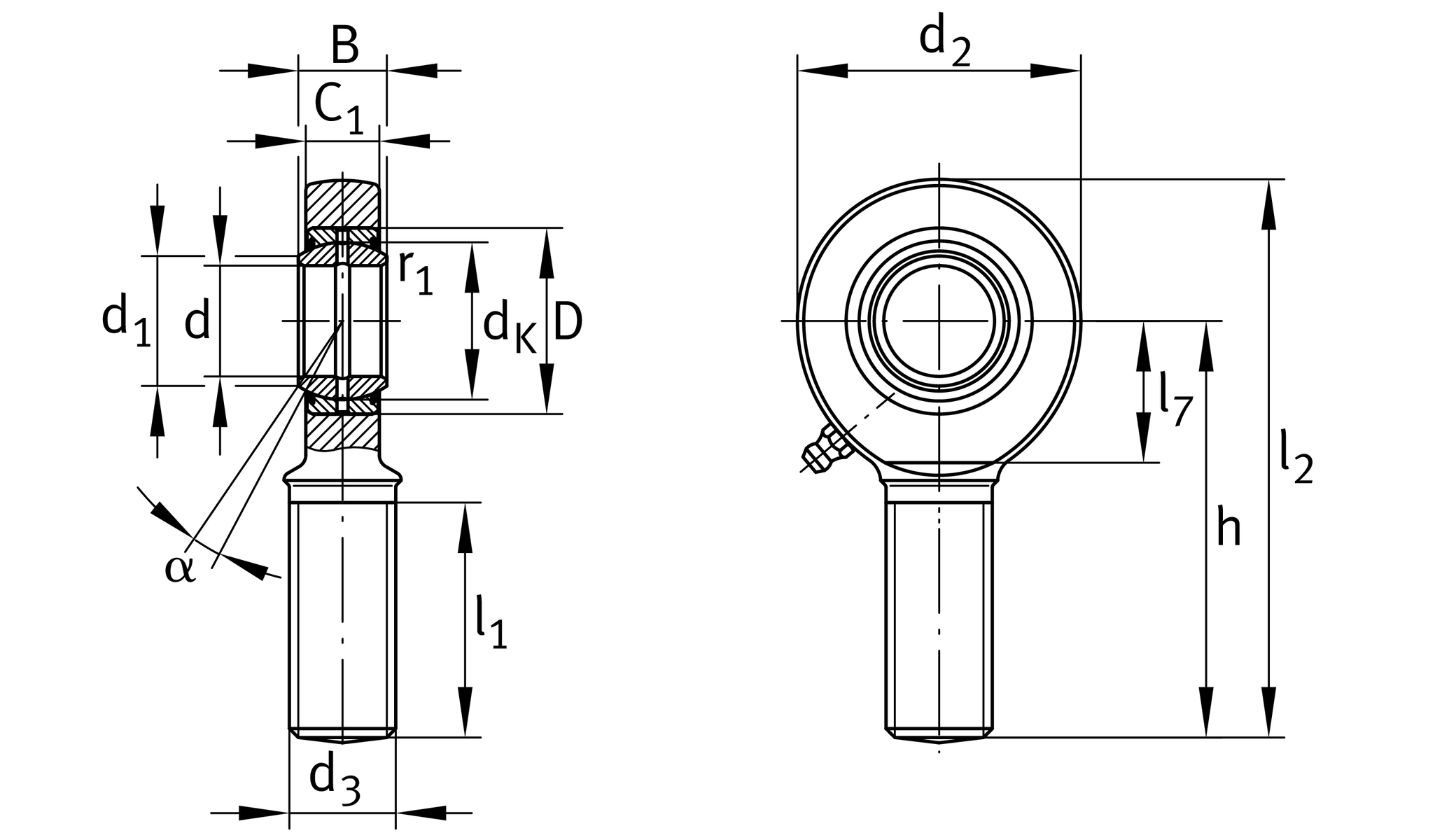

Main Dimensions & Performance Data
| Cr | 3,400 N | Basic dynamic load rating, radial |
| C0r | 6,930 N | Basic static load rating, radial |
| d | 6 mm | Bore diameter bearing |
| D | 14 mm | Outside diameter bearing |
| l2 | 46.5 mm | Total length external thread head |
| B | 6 mm | Width inner ring |
| d2 | 21 mm | Outer eye diameter |
| ≈m | 18 g | Weight |
Mounting dimensions
| d1 | 8 mm | Outer flange diameter inner ring |
| r1smin | 0.3 mm | Edge Spacing |
Dimensions
| dK | 10 mm | Ball diameter |
| d3 | M6 | Thread size |
| h | 36 mm | Shank Length External thread rod |
| C1 | 4.4 mm | Width of the rod end |
| α | 13 ° | Tilt angle |
| l1 | 18 mm | Shank Length External thread head |
| l7 | 12 mm | Distance drilling with/shaft start |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.008 mm | Bore diameter bearing, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| Gr | 0,023 - 0,068 | Radial Clearance |
| Grmax | 0.068 mm | Radial clearance, maximum |
| Grmin | 0.023 mm | Radial clearance, minimum |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
