Main Dimensions & Performance Data

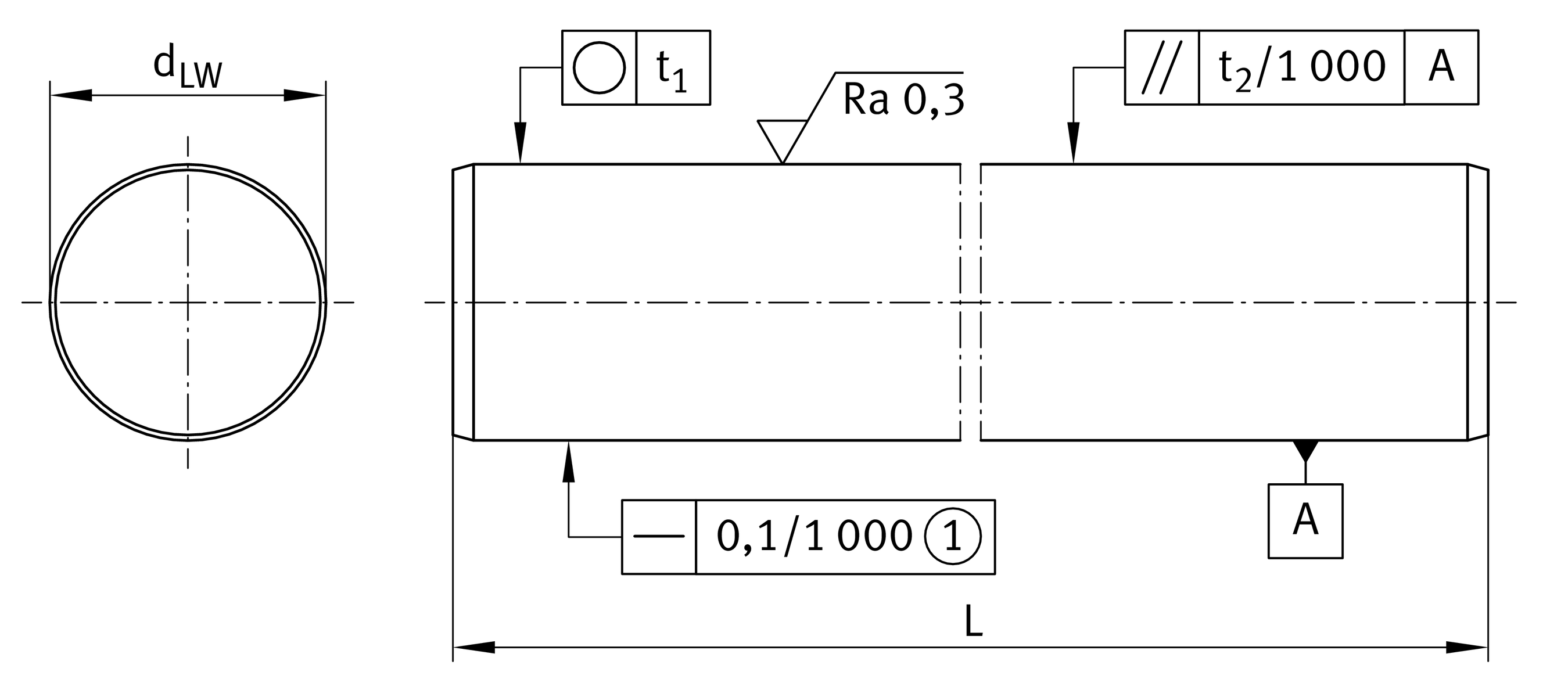

| dLW | 20 mm | Diameter Shaft |
| Lmax | 6,000 mm | Length total maximum |
| ≈m | 2.47 kg/m | Weight |
Mounting dimensions
| dLWTol | h6 | Diameter Shaft |
| h6Tol | 0 µm | Diameter Shaft high |
| h6Tol | -13 µm | Diameter Shaft low |
| SHDmin | 0.9 mm | Surface Hardness Depth 1 |
| t1 | 6 µm | Roundness |
| t2 | 9 µm | Parallelism 2 |
Main dimensions

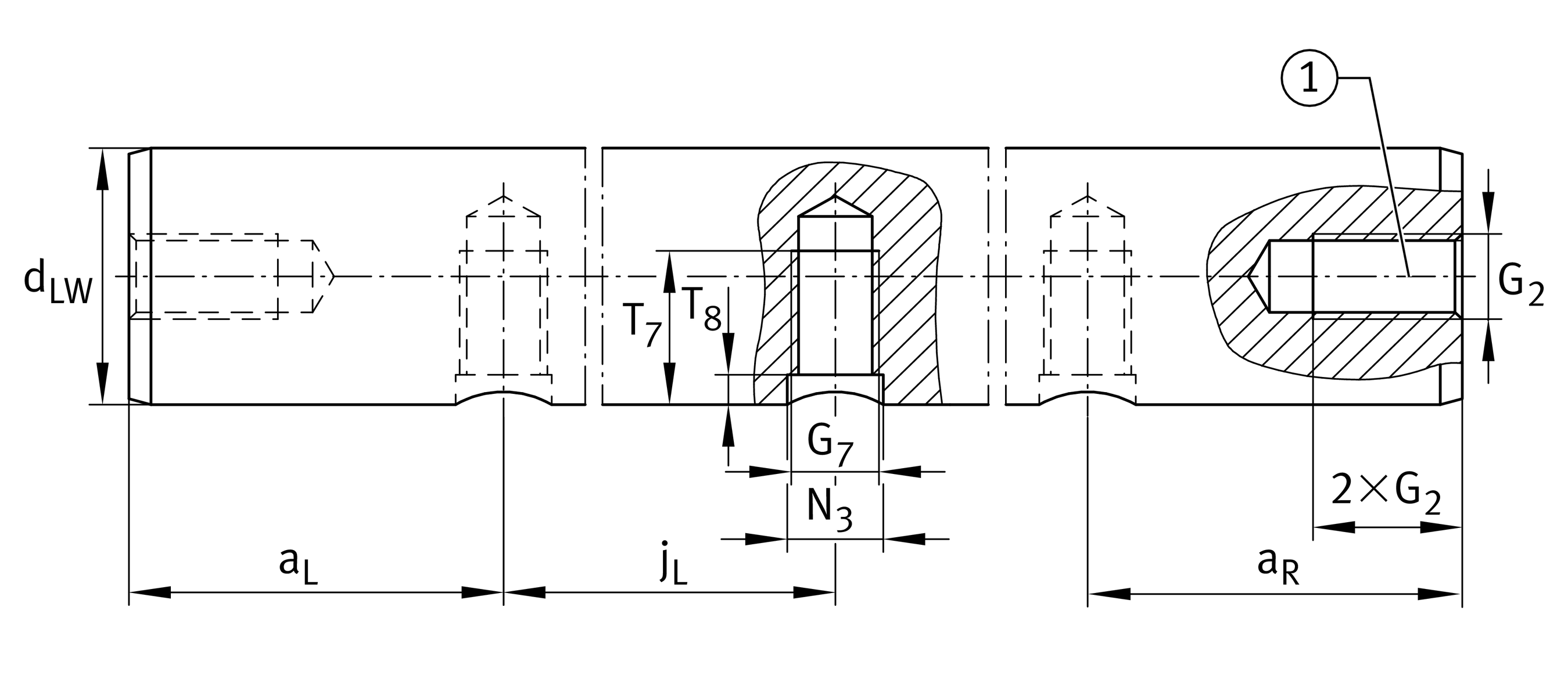

| G2 | M6-M8-M10 | Axial thread (size) |
| G7 | M5-M6 | Radial thread (size) |

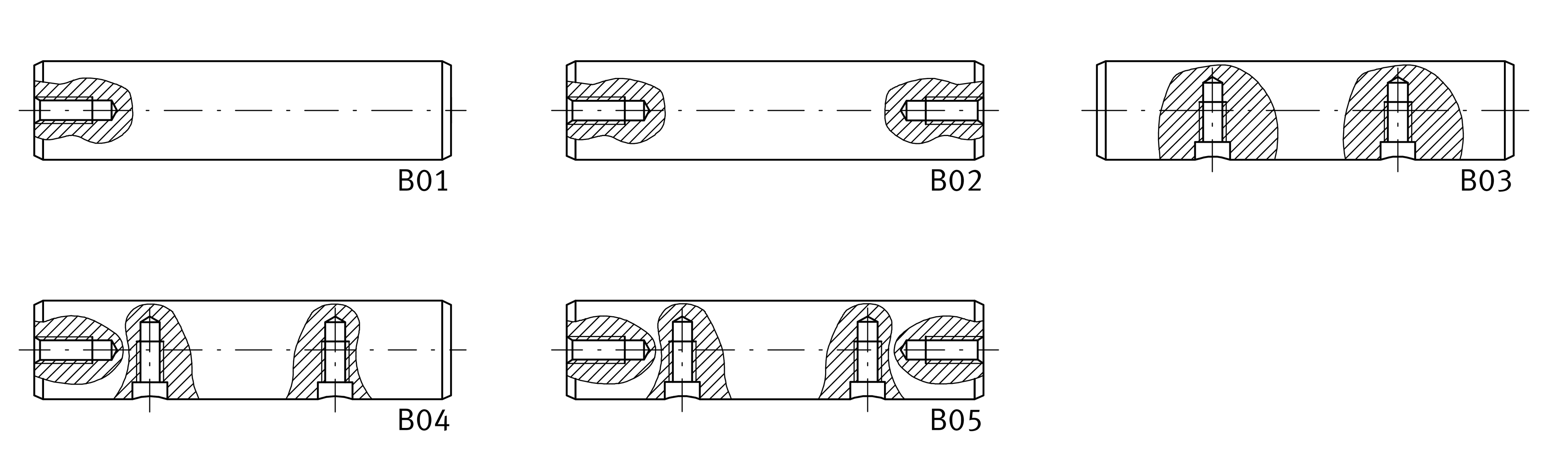

| B01 | M6-M8-M10 | Drilling pattern axial thread one side |
| B02 | M6-M8-M10 | Drilling pattern axial thread both side |
| B03 | M5-M6 | Drilling pattern radial thread |
| B04 | M5-M6 + M6-M8-M10 | Drilling pattern radial thread+axial thread one side |
| B05 | M5-M6 + M6-M8-M10 | Drilling pattern radial thread+axial thread both side |
Your current product variant
| Size code | 20 | |
| Tolerance diameter | h6 | |
| Material | X46 | corrosion-resistant steel (material no.:1.4034) |
