Main Dimensions & Performance Data
| dLW | 16 mm | Diameter Shaft |
| Lmax | 6,000 mm | Length total maximum |
| ≈m | 1.58 kg/m | Weight |
Mounting dimensions

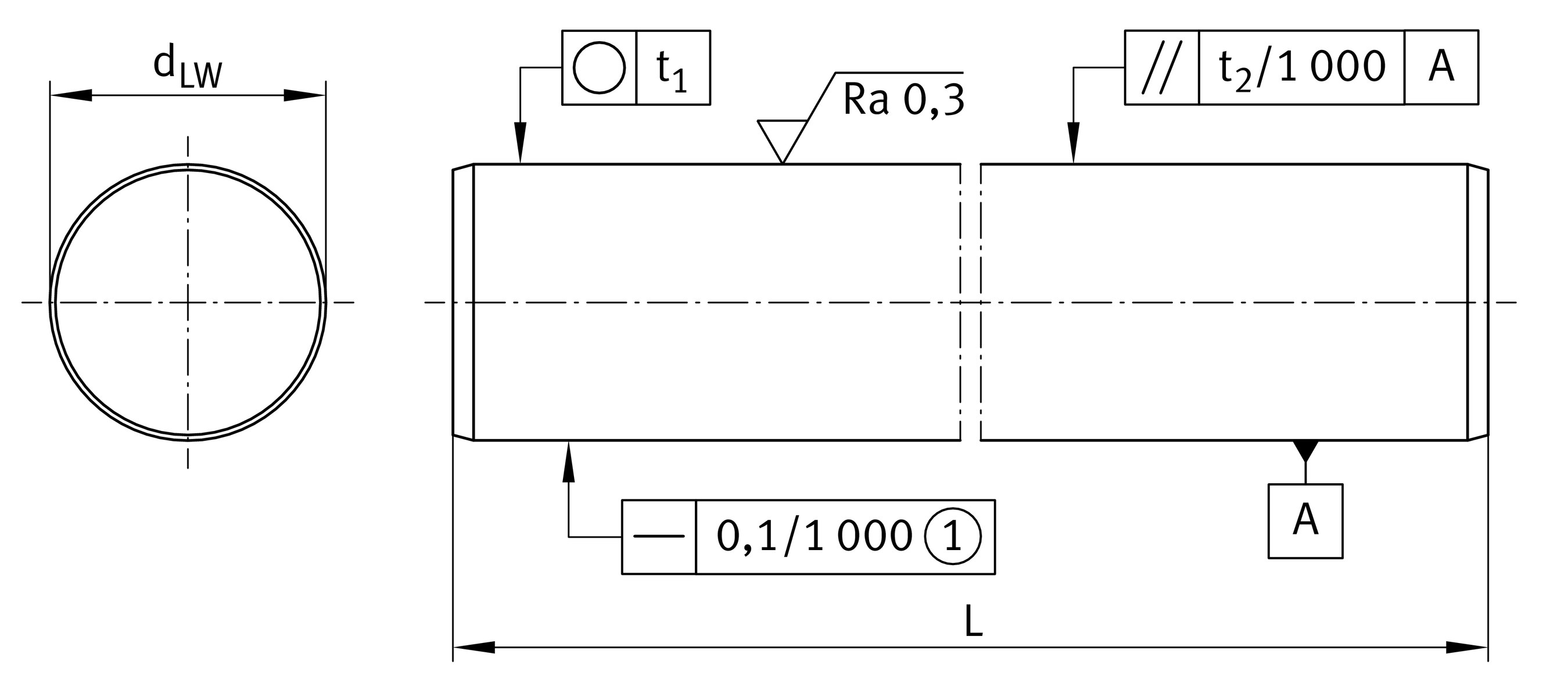

| dLWTol | h6 | Diameter Shaft |
| h6Tol | 0 µm | Diameter Shaft high |
| h6Tol | -11 µm | Diameter Shaft low |
| SHDmin | 0.6 mm | Surface Hardness Depth 1 |
| t1 | 5 µm | Roundness |
| t2 | 8 µm | Parallelism 2 |
Main dimensions

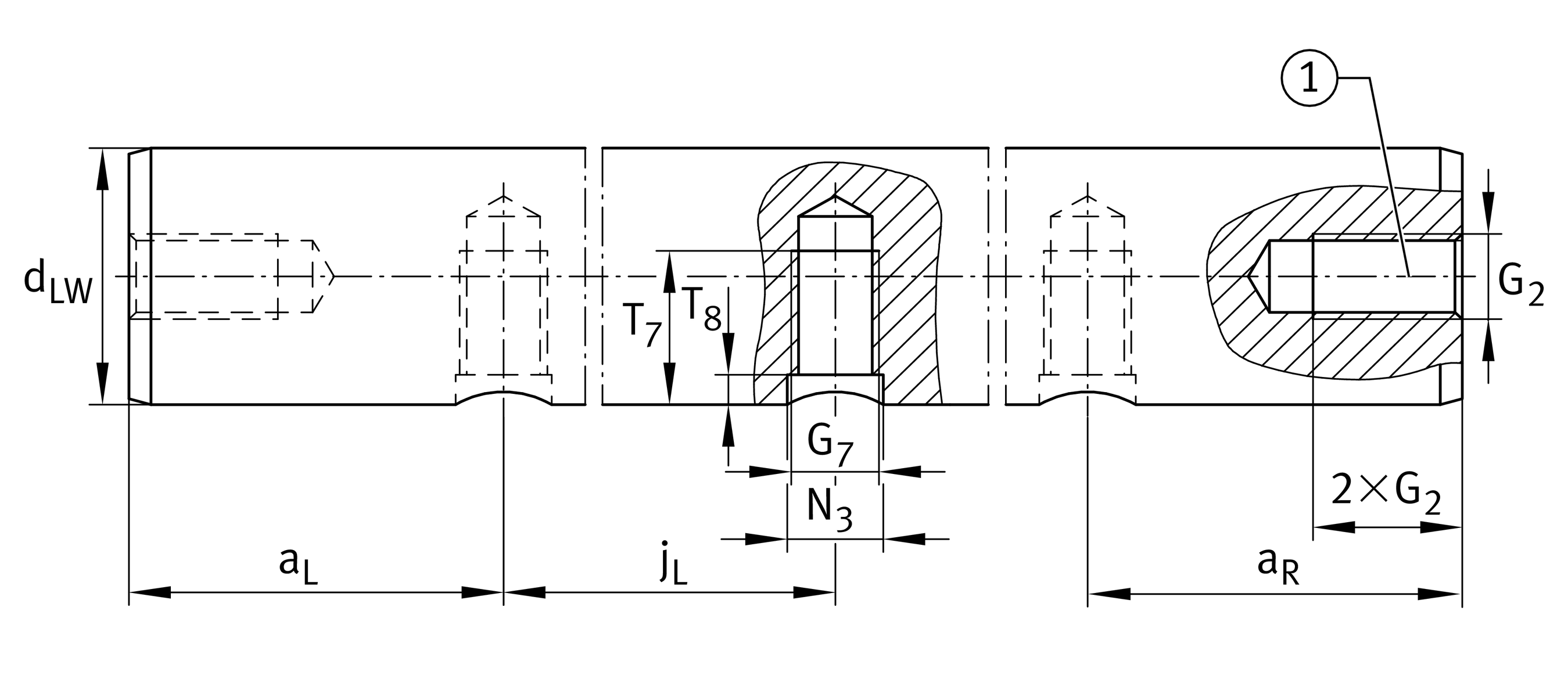

| G2 | M5-M6-M8 | Axial thread (size) |
| G7 | M5 | Radial thread (size) |

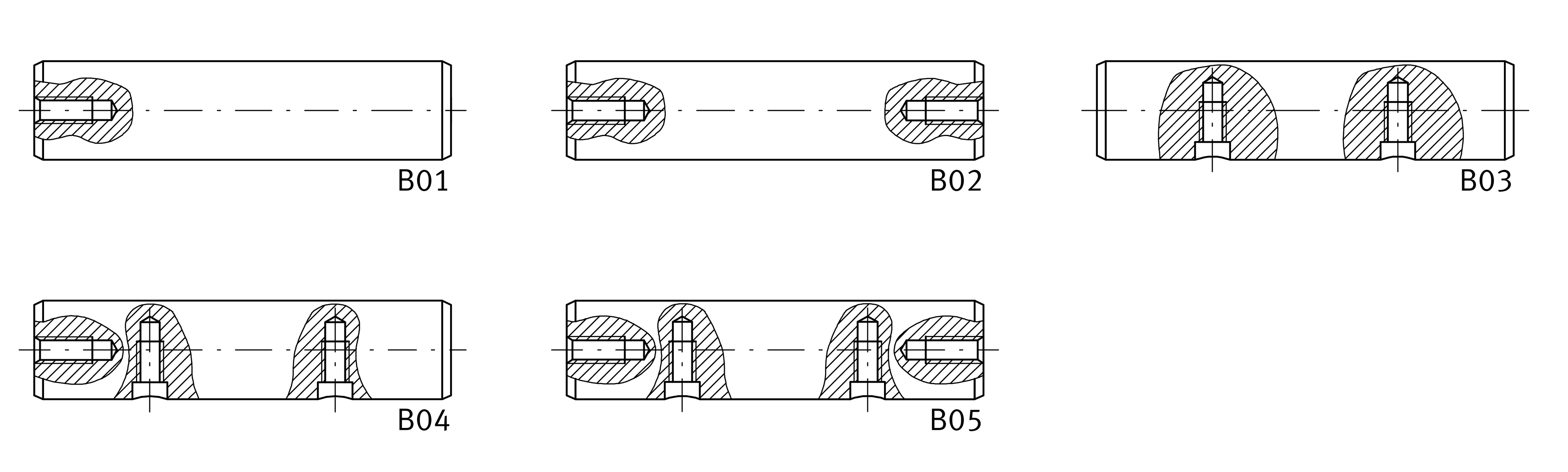

| B01 | M5-M6-M8 | Drilling pattern axial thread one side |
| B02 | M5-M6-M8 | Drilling pattern axial thread both side |
| B03 | M5 | Drilling pattern radial thread |
| B04 | M5+M5-M6-M8 | Drilling pattern radial thread+axial thread one side |
| B05 | M5+M5-M6-M8 | Drilling pattern radial thread+axial thread both side |
Your current product variant
| Size code | 16 | |
| Tolerance diameter | h6 | |
| Material | X46 | corrosion-resistant steel (material no.:1.4034) |
