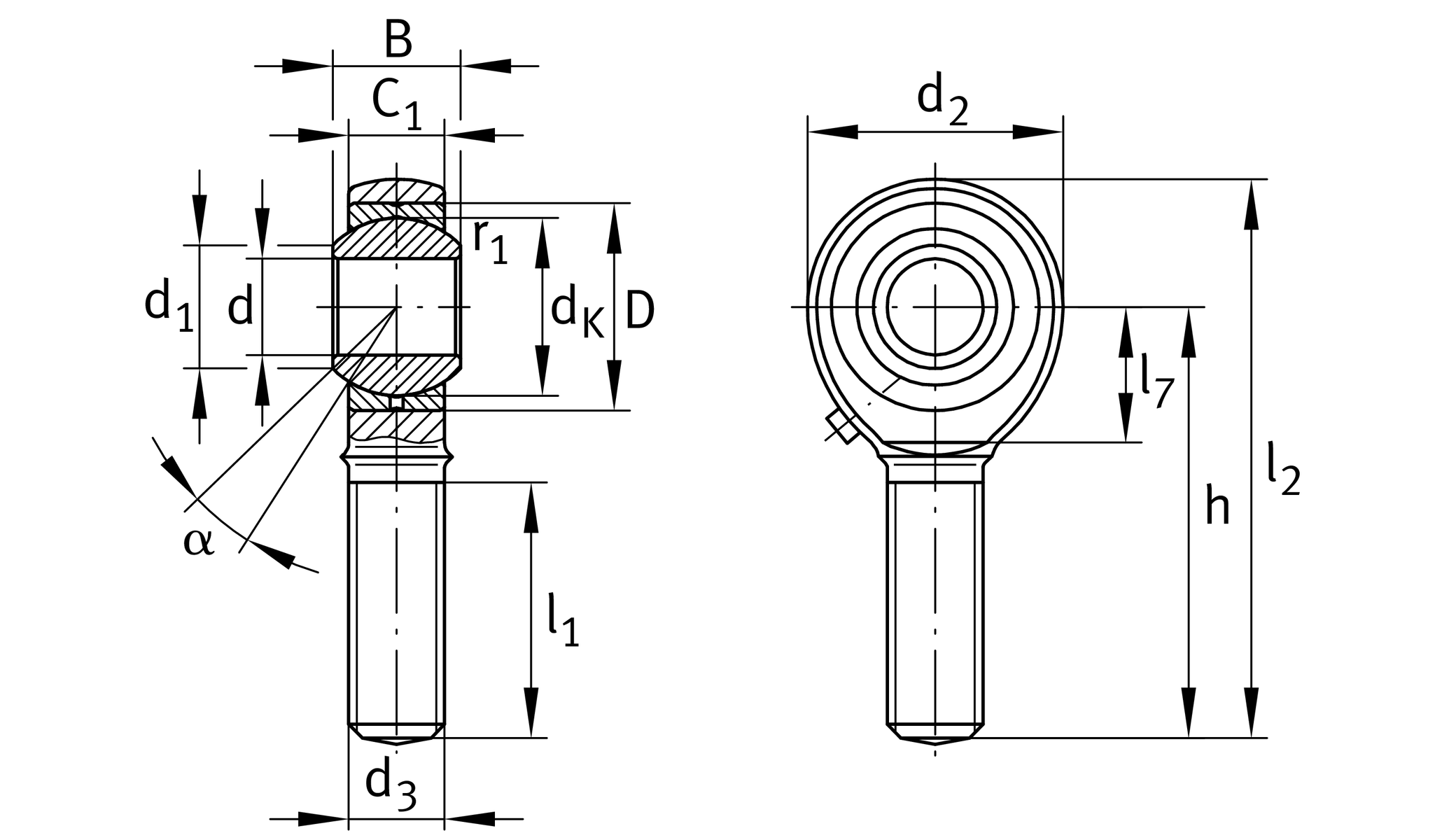

Main Dimensions & Performance Data
| d2 | 55 mm | Outer diameter eye |
| Cr | 57,300 N | Basic dynamic load rating |
| C0r | 48,800 N | Basic static load rating |
| d | 22 mm | Bore diameter bearing |
| D | 42 mm | Outside diameter bearing |
| l2 | 111.5 mm | Total length |
| B | 28 mm | Width inner ring |
| ≈m | 0.466 kg | Weight |
Dimensions
| dk | 38.1 mm | Ball diameter |
| d1 | 25.8 mm | Outer flange diameter inner ring |
| d3 | M22x1,5 | Thread size |
| h | 84 mm | Length of thread |
| C1 | 20 mm | Width of the rod end |
| alpha | 15 ° | Tilt angle |
| l1 | 48 mm | Thread length |
| l7 | 27 mm | Length of the flat surface from the bearing bore centre to the shank |
| BUT | -0.12 mm | Width inner ring , lower tolerance |
| BOT | 0 mm | Width inner ring; upper tolerance |
| dT | H7 | Bore diameter_bearing_tolerance |
| dUT | 0 mm | Bore diameter, lower tolerance |
| dOT | 0.021 mm | Bore diameter bearing upper tolerance |
| Gr | 0,01 - 0,055 | Radial clearance |
| Grmax | 0.055 mm | Radial clearance, maximum |
| Grmin | 0.01 mm | Radial clearance, minimum |
Temperature range
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Mounting dimensions
| r1s | 0.3 mm | Smallest single chamfer dimension, inner ring |
Your current product variant
| Sealing | Without | |
| Material sliding Layer | Sliding foil | Sliding foil |
