INA
UZ6628
Guideways with three raceways UZ.. UZ6628
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
lmax
2,000 mm
length maximum 1
B
66 mm
width
Tol B
-0,1
tolerance
H
28 mm
height
Tol H
-0,1
tolerance

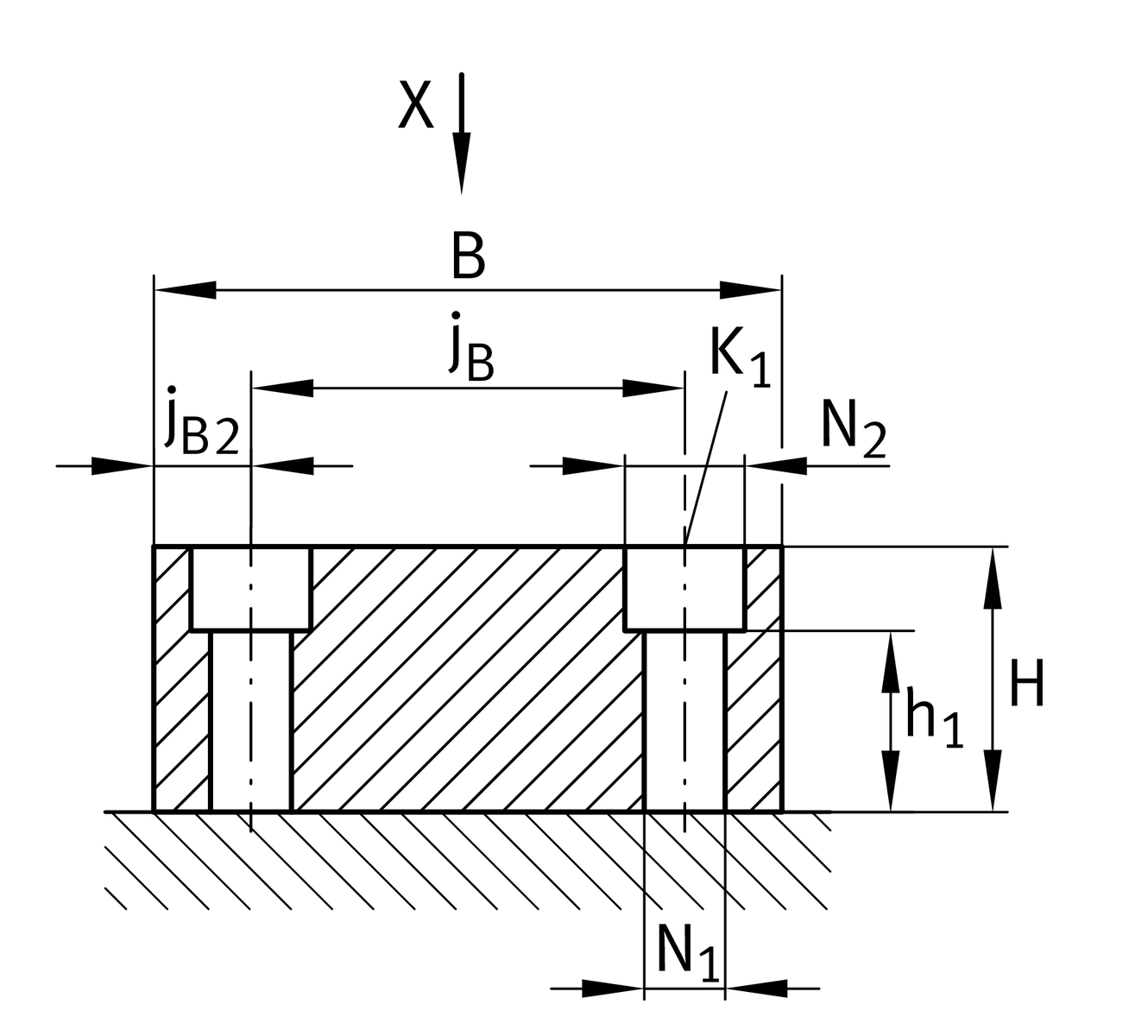

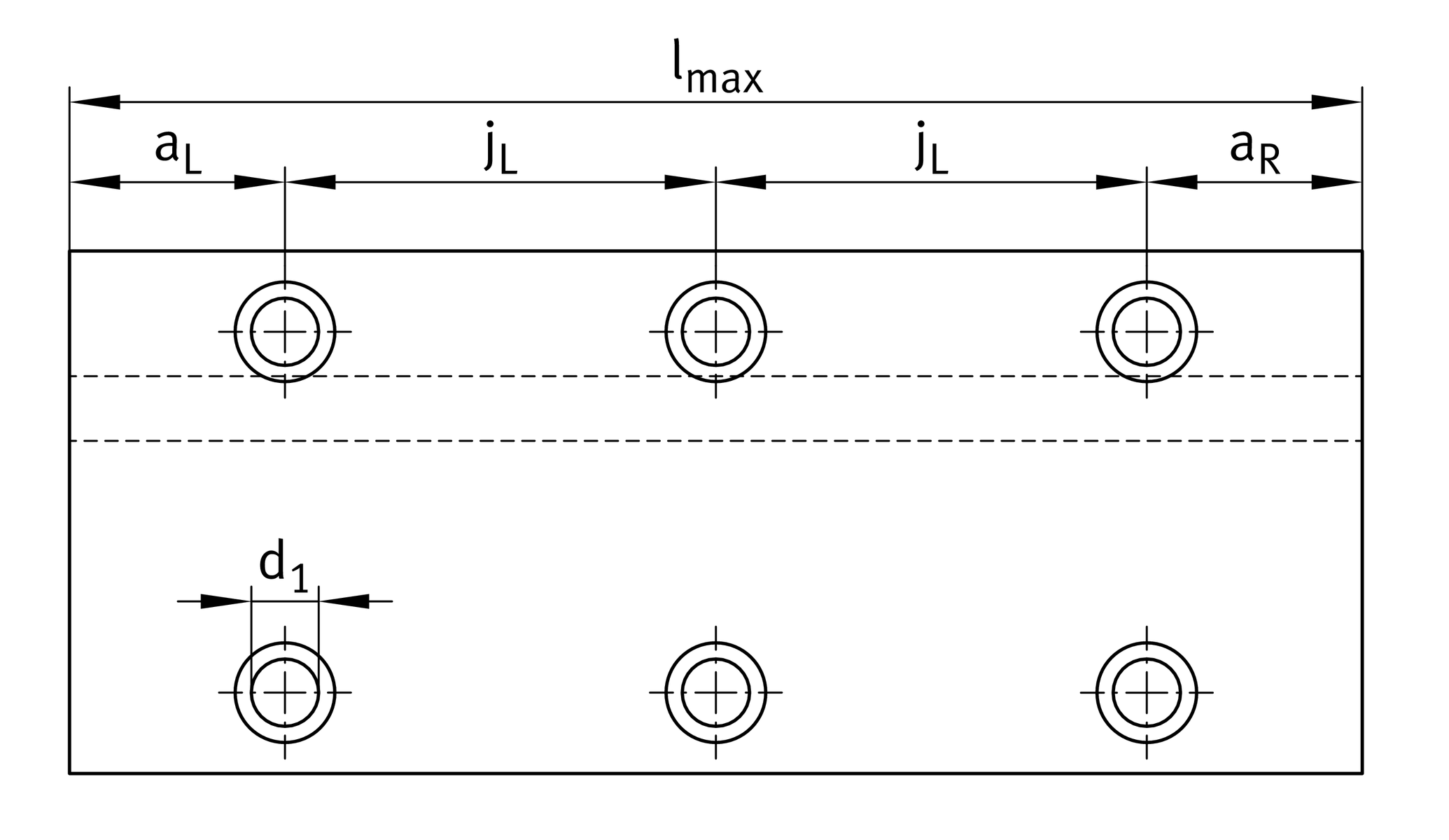

Mounting dimensions
jB
44 mm
jB2
11 mm
jL
80 mm
aR min
15 mm
 2
aR max
55 mm
 2
aL min
15 mm
 2
aL max
55 mm
 2
16.5 mm
N2
15 mm
K1
M8
fixing srews (DIN ISO 4762-12.9)
K1 MA
41 Nm
torques fixing screws 3
d1
10 mm
bore diameter

Related products
KVK15
suitable closing plug 4
RUS19069, RUS19105, RUSV30069-KS, RUSV30105-KS, PR14032, PR14044
suitable for linear roller bearing 5

Your current product variant
Size code6628
