Main Dimensions & Performance Data
| Cr | 245,000 N | Basic dynamic load rating, radial |
| C0r | 327,000 N | Basic static load rating, radial |
| d | 60 mm | Bore diameter bearing |
| d2 | 130 mm | Outer eye diameter |
| l4 | 200 mm | Total length internal thread head |
| D | 90 mm | Outside diameter bearing |
| B | 44 mm | Width inner ring |
| ≈m | 5.621 kg | Weight |

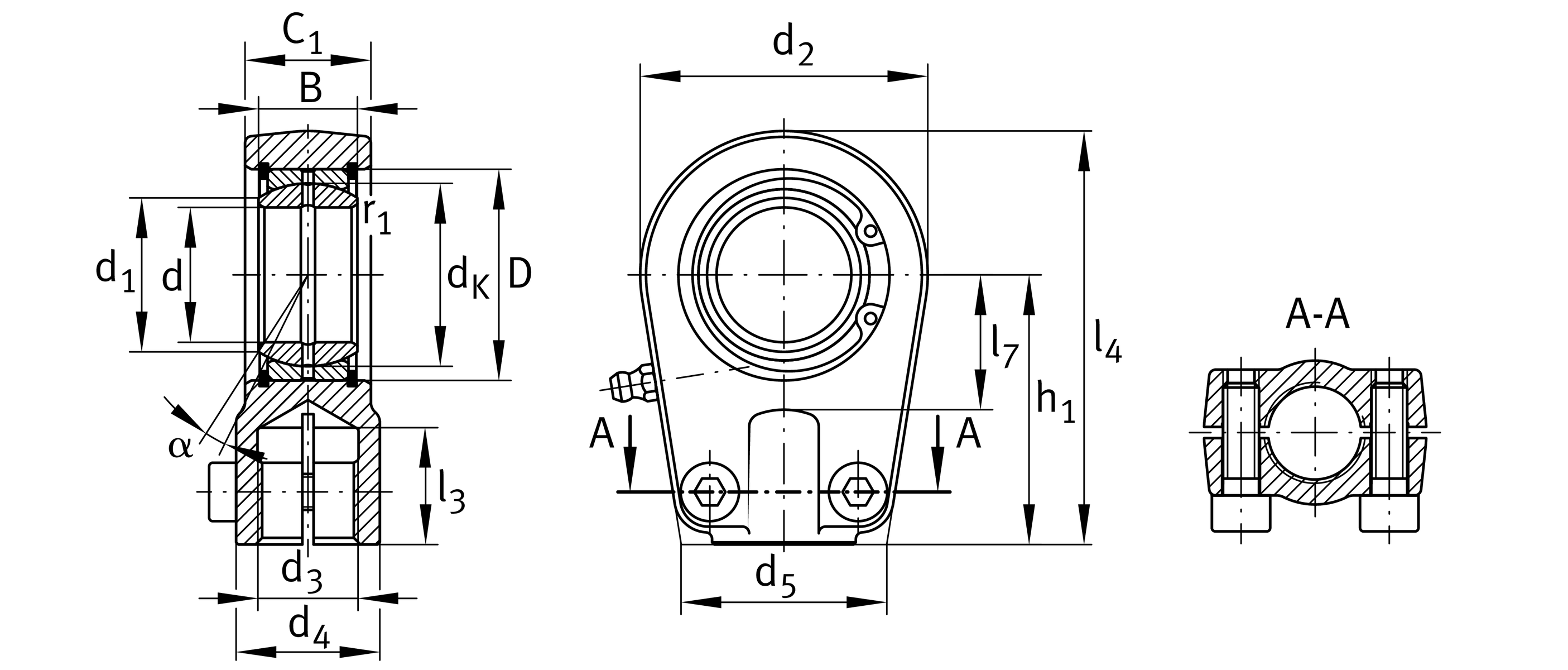

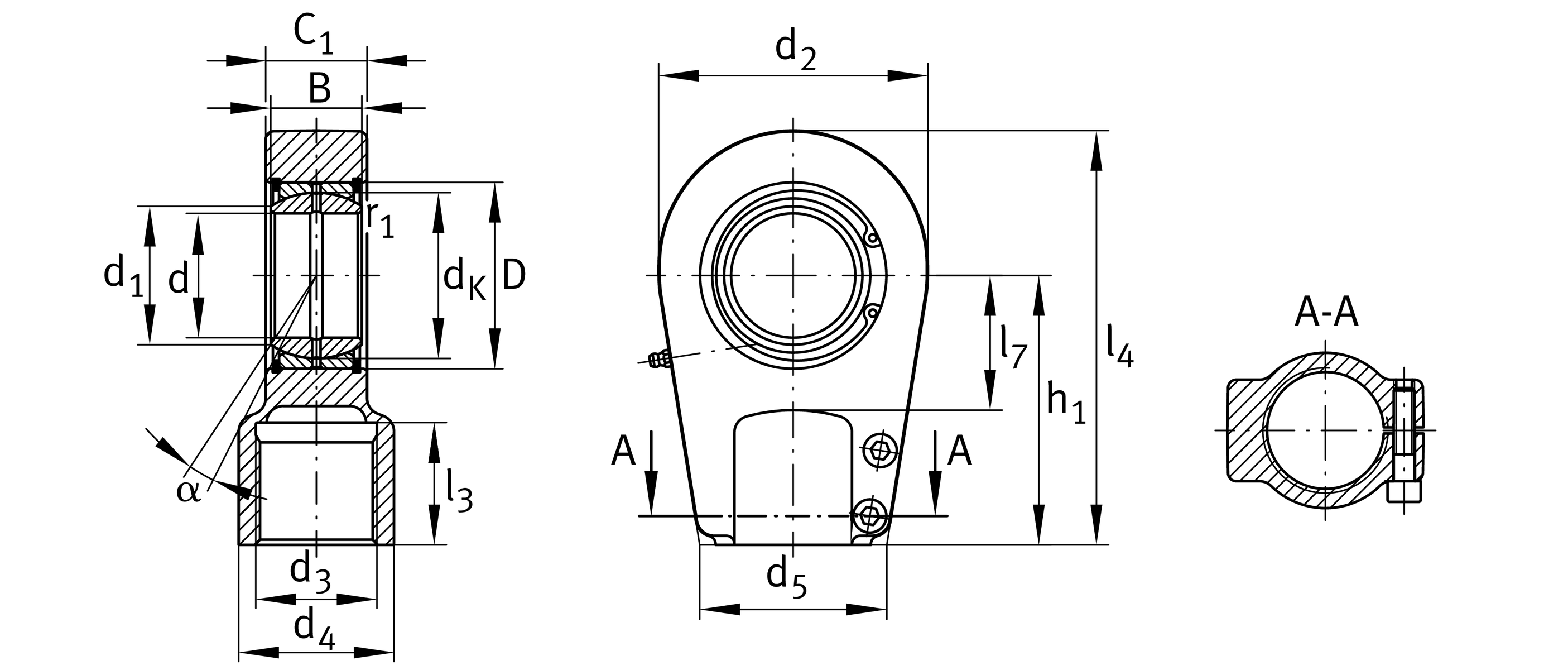

Dimensions
| α | 6 ° | Tilt angle |
| C1 | 50 mm | Width of the rod end |
| dK | 80 mm | Ball diameter |
| d3 | M58x1,5 | Thread size |
| d4 | 75 mm | Shank diameter |
| d5 | 90 mm | Shank diameter, large |
| d 7 | M10x45 | Diameter |
| h1 | 130 mm | Shank Length Internal thread head |
| l3 | 59 mm | Thread length Internal thread |
| l7 | 65 mm | Distance drilling with/shaft start |
| dUT | -0.015 mm | Bore diameter bearing, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.15 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| MA | 46 Nm | Tightening torque |
| Gr | 0,043 - 0,12 | Radial Clearance |
| Grmin | 0.043 mm | Radial clearance, minimum |
| Grmax | 0.12 mm | Radial clearance, maximum |
Mounting dimensions
| r1smin | 1 mm | Edge Spacing |
| d1 | 66.8 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without |
