GE60-XL-KTT-B
Radial insert ball bearing GE60-XL-KTT-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
60 mm
Bore diameter
DSP
110 mm
Outside diameter
B
61.9 mm
Width
Cur
1,710 N
Fatigue load limit, radial
B1
77.9 mm
Locking collar total width
Cr
52,000 N
Basic dynamic load rating, radial
C0r
36,000 N
Basic static load rating, radial
≈m
1.789 kg
Weight

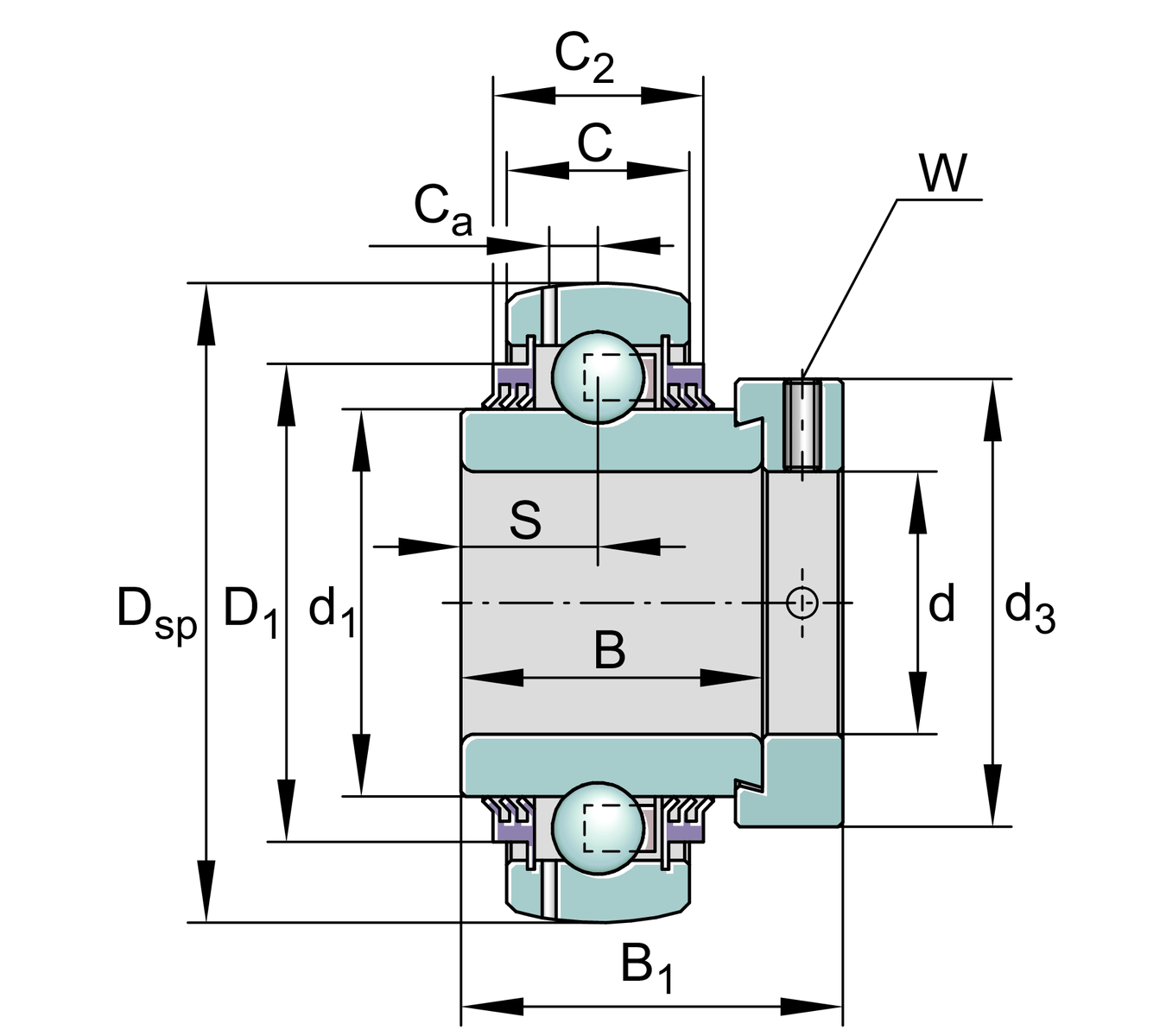

Dimensions
C
24 mm
Width, outer ring
C2
29 mm
Sealing total width
S
31 mm
Distance raceway
d1
76.5 mm
Rib diameter inner ring
D1
94.5 mm
Outside diameter seal
Ca
7.2 mm
Distance to lubrication hole
d3
84 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
14.3
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceB
