SNS3236-Z-D

Plummer block housing SNS3236-Z-D

Thêm vào yêu cầu báo giá

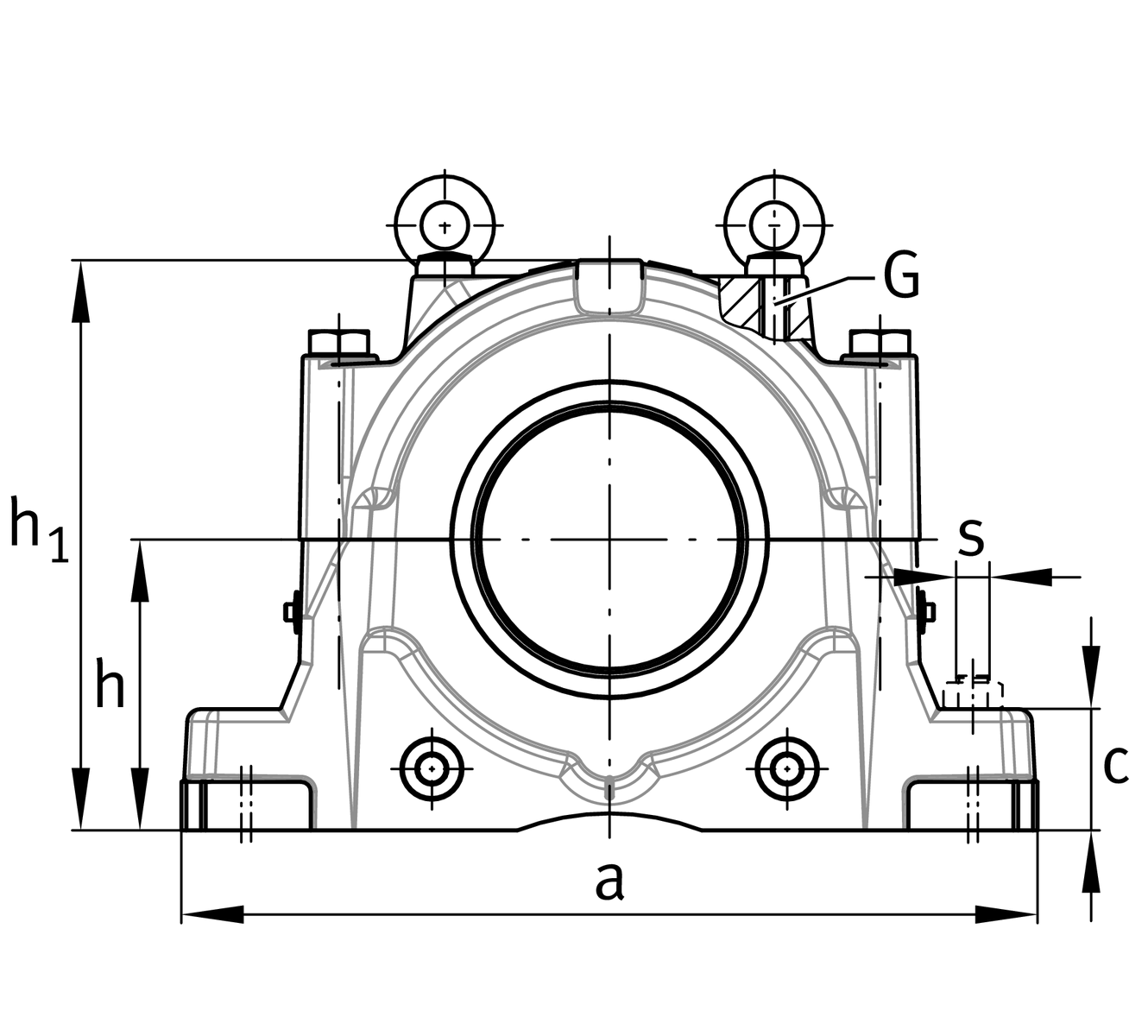

Main Dimensions & Performance Data

h₁	375 mm	Housing height
g	260 mm	Housing width
a	560 mm	length base
≈m	96.4 kg	Weight

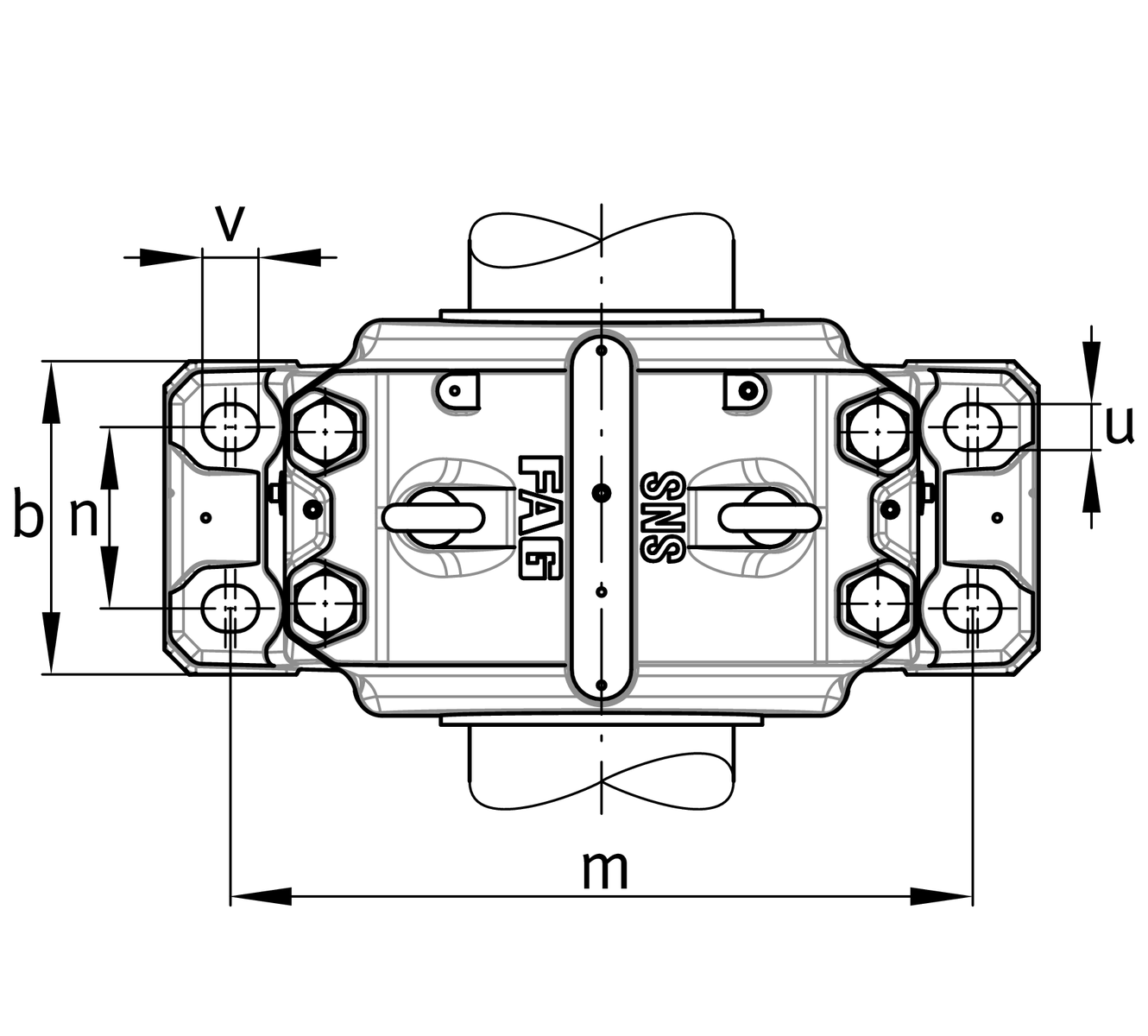

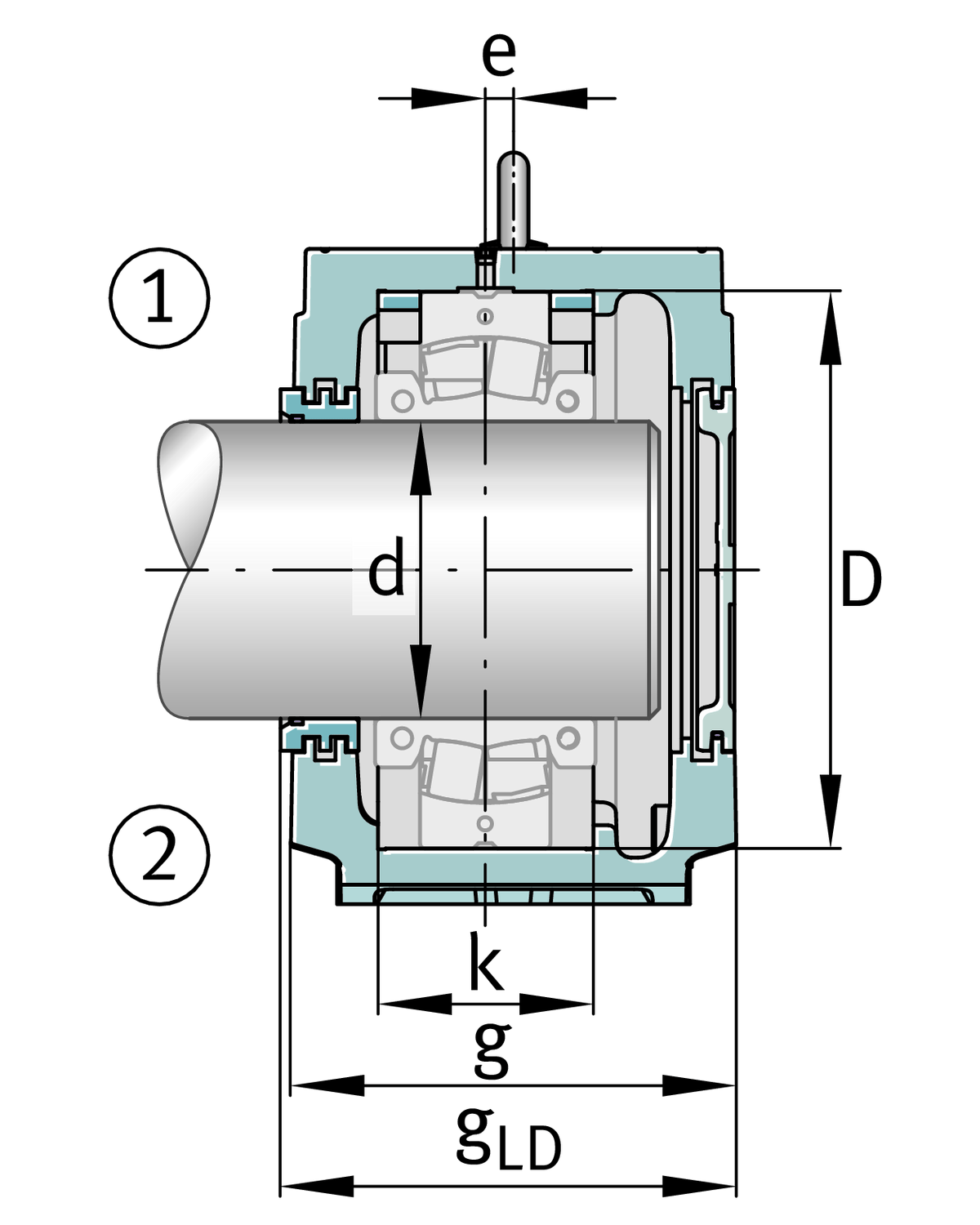

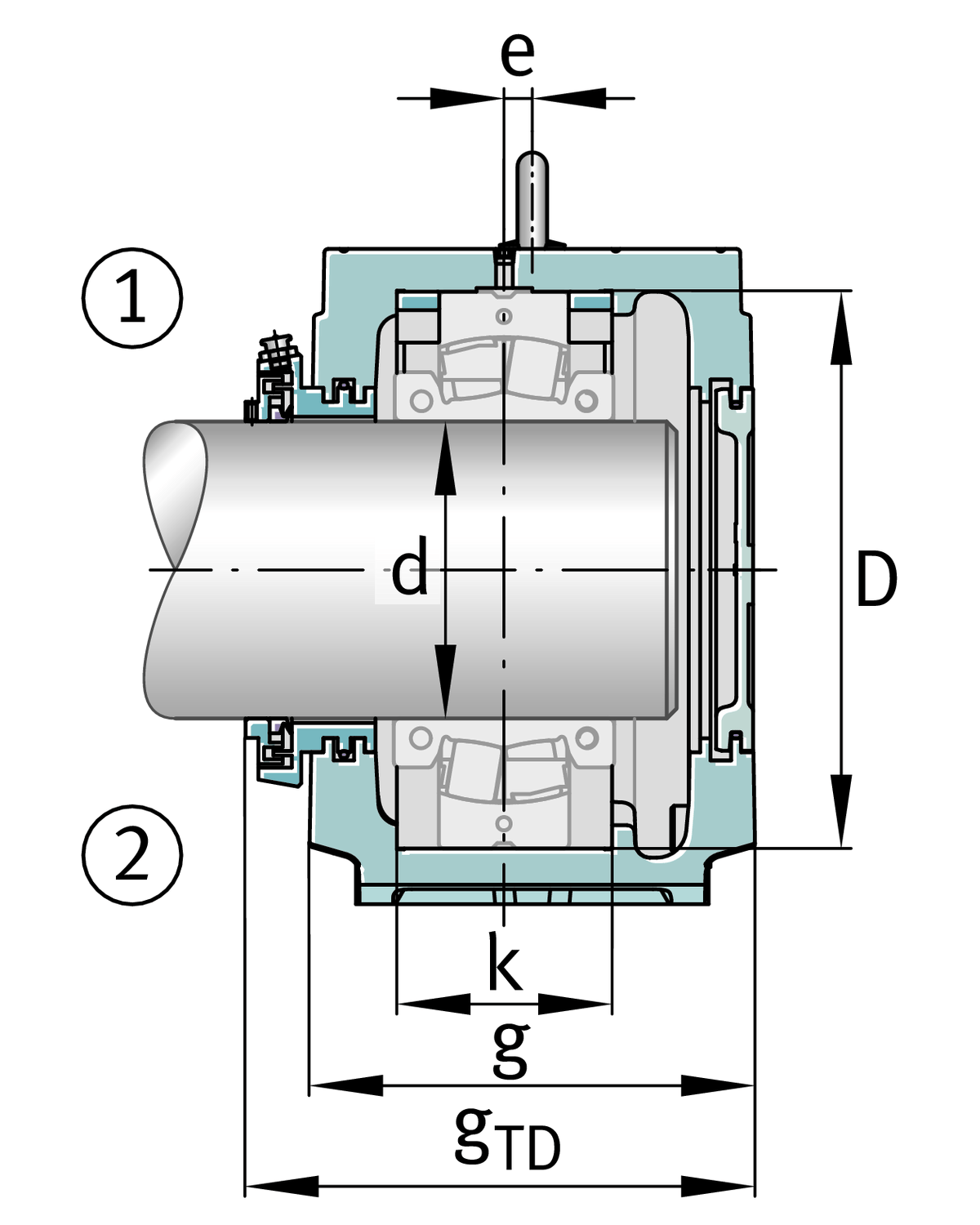

Dimensions

c	80 mm	Base height
b	210 mm	Base width
n₂	120 mm	Base hole distance 2
D	320 mm	Bearing seat
e	10 mm	Center offset
h	190 mm	Center height
k	124 mm	Bearing seat width
m	480 mm	Base hole distance 1
s	M24	Screw size base hole fixing
u	28 mm	Base hole width
v	34 mm	Base hole length

Your current product variant

Material	D	Spheroidal graphite cast iron
