SNS3196-Z-D

Plummer block housing SNS3196-Z-D

Thêm vào yêu cầu báo giá

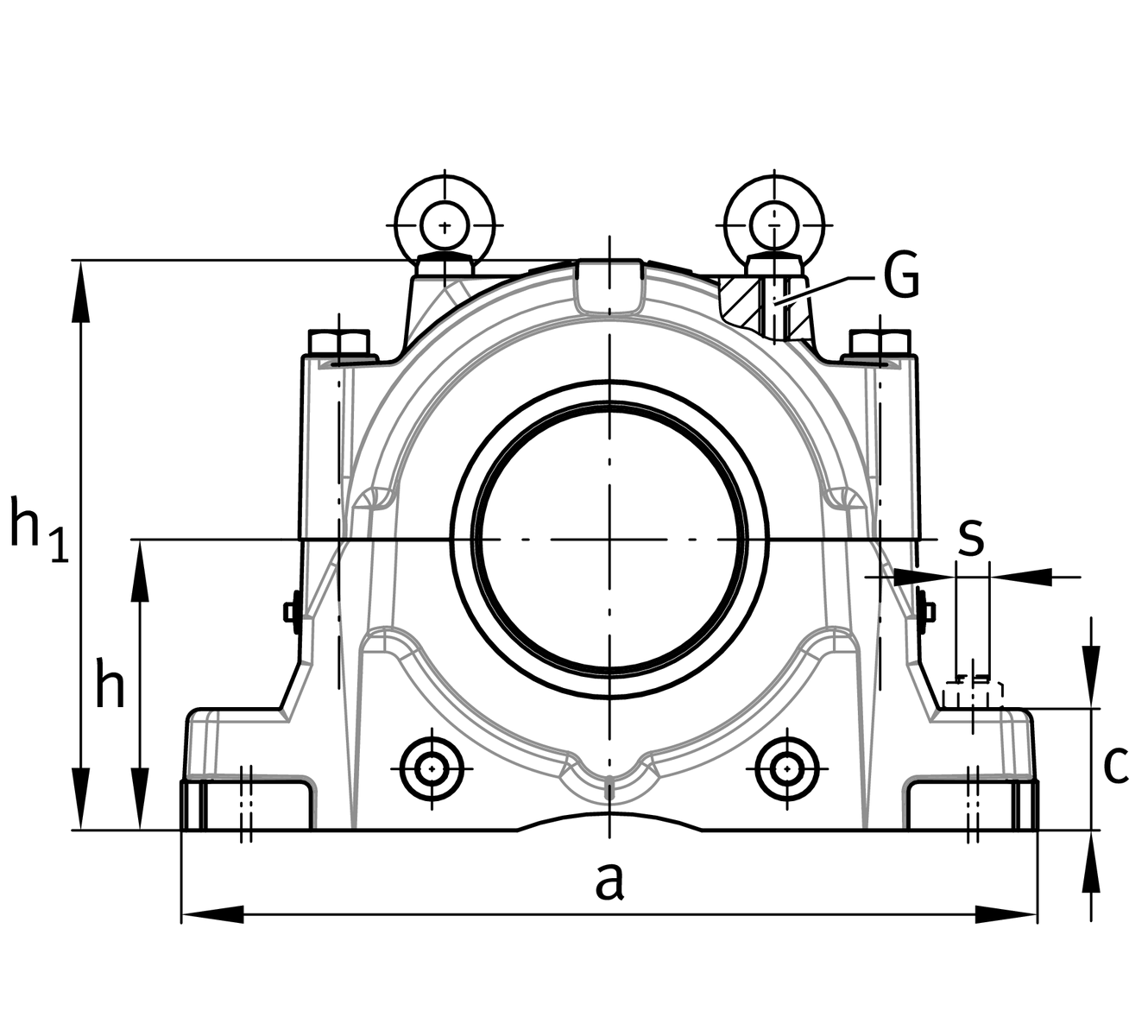

Main Dimensions & Performance Data

h₁	920 mm	Housing height
g	470 mm	Housing width
a	1,330 mm	length base
≈m	1 g	Weight

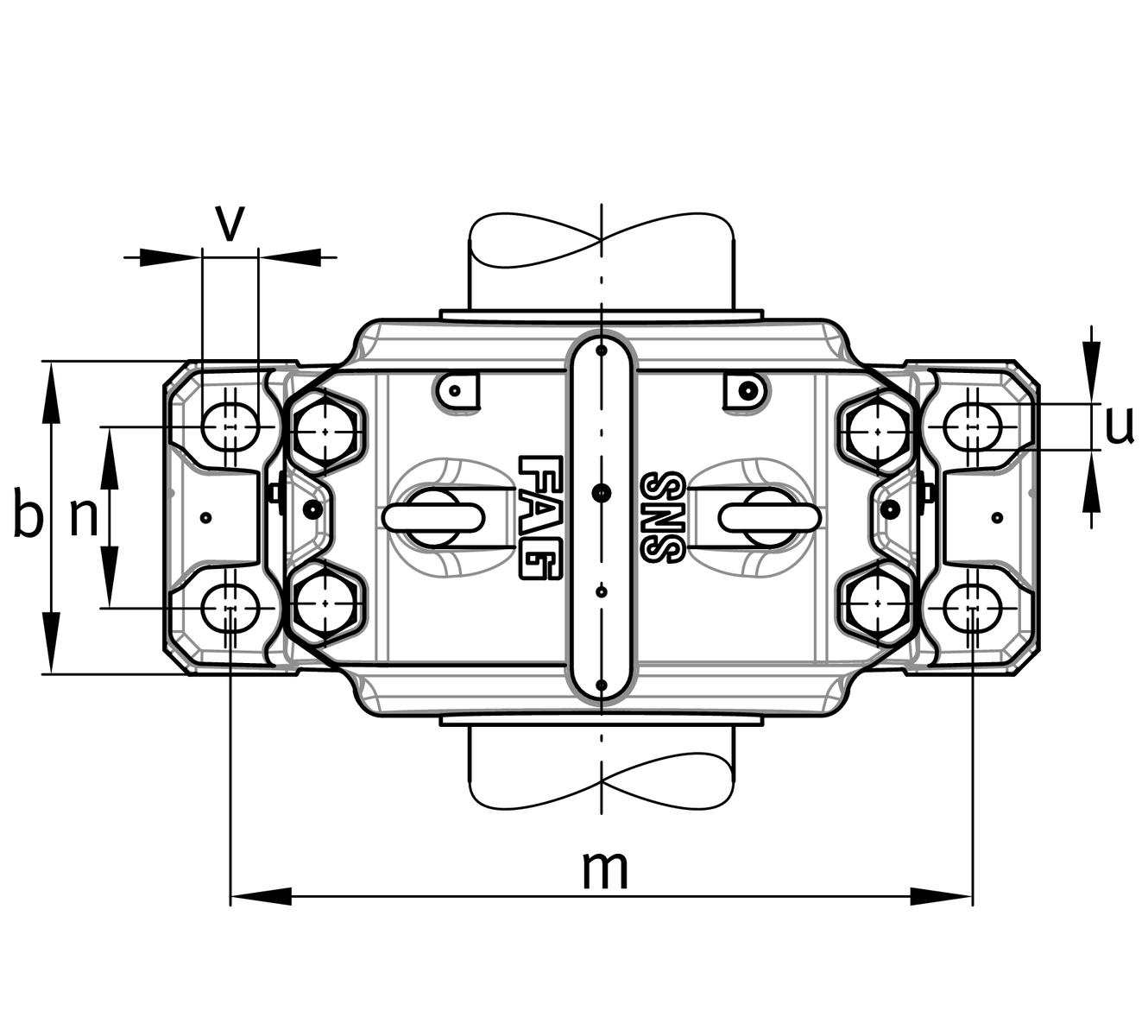

Dimensions

c	155 mm	Base height
b	440 mm	Base width
n₂	260 mm	Base hole distance 2

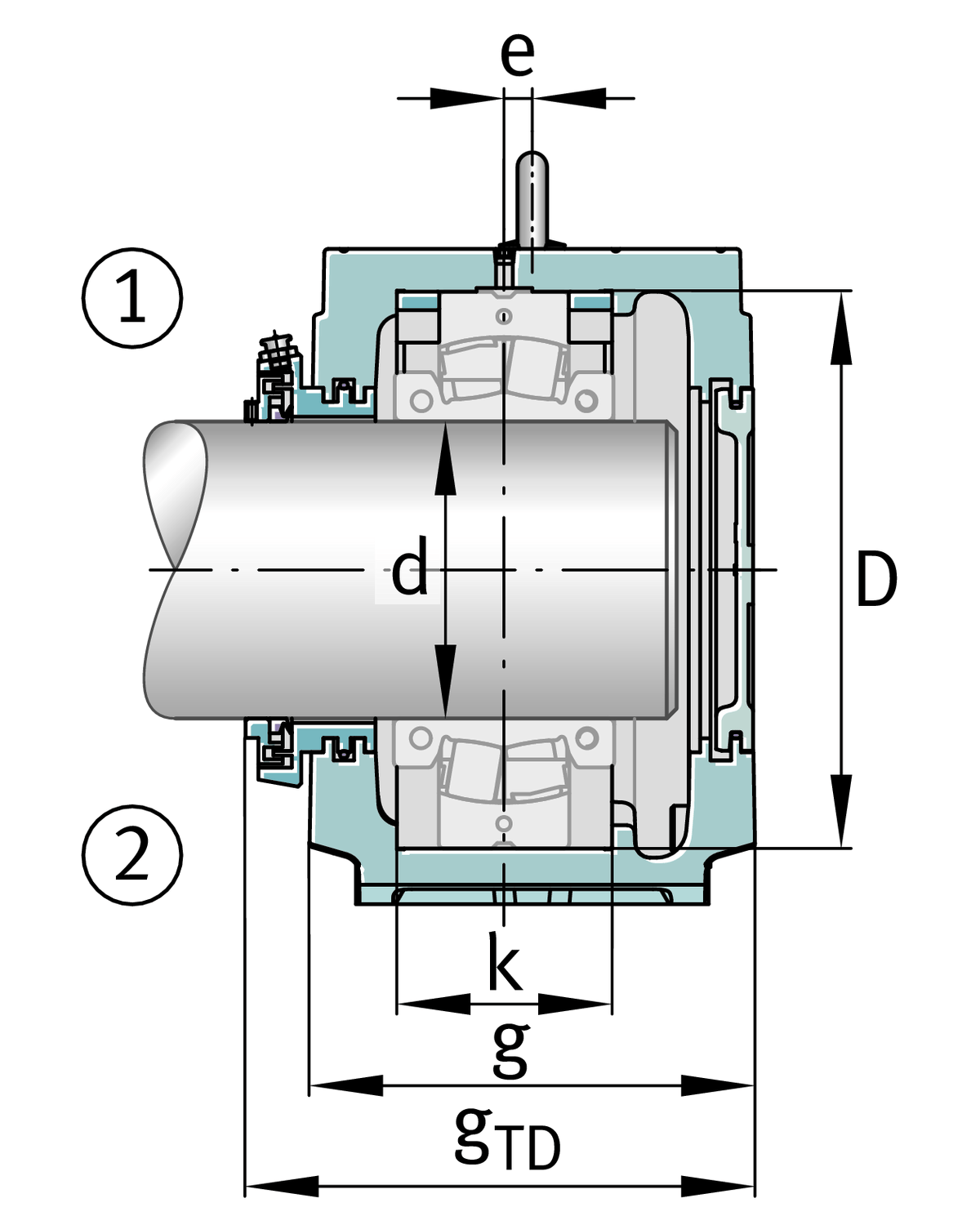

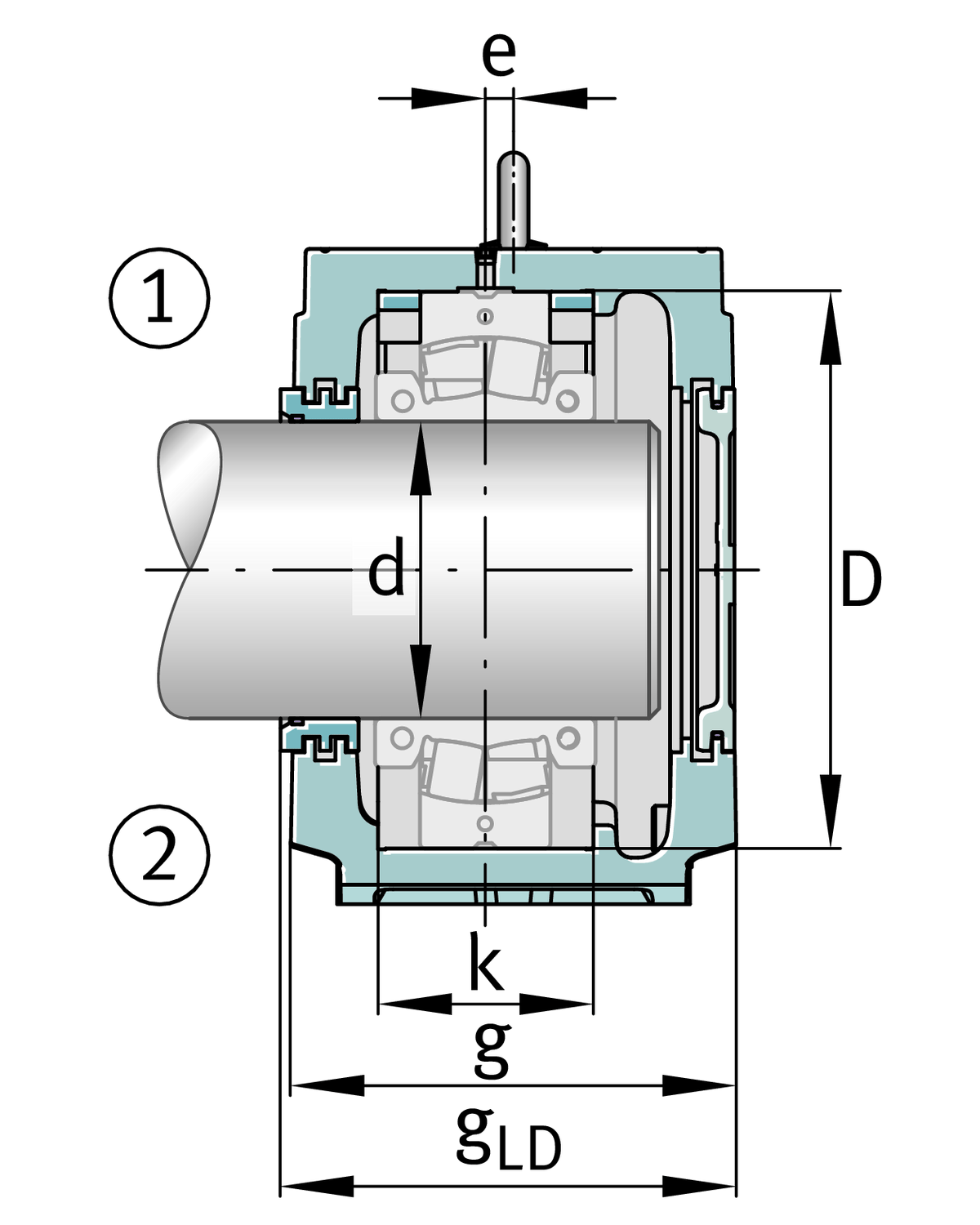

D	790 mm	Bearing seat
e	35 mm	Center offset
h	460 mm	Center height
k	268 mm	Bearing seat width
m	1,110 mm	Base hole distance 1
s	M48	Screw size base hole fixing
u	56 mm	Base hole width
v	70 mm	Base hole length

Your current product variant

Material	D	Spheroidal graphite cast iron
