FAG INA Schaeffler
INA
UFB4710
Guideways with one raceway, for screw mounting UFB4710
Thêm vào yêu cầu báo giá

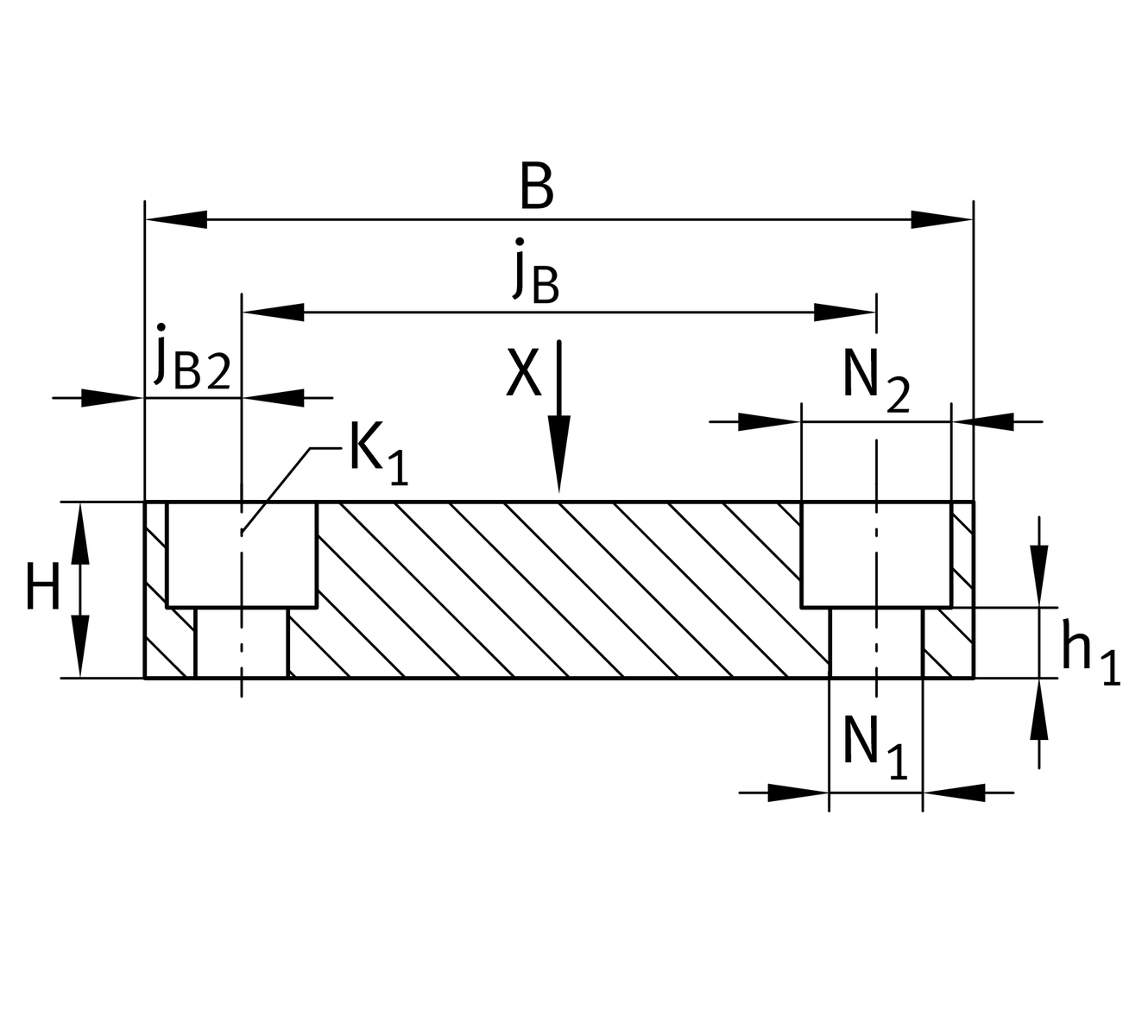

Main Dimensions & Performance Data
lmax
2,000 mm
length maximum 1
B
47 mm
width
Tol B
-0,1
tolerance
H
10 mm
height
Tol H
-0,1
tolerance

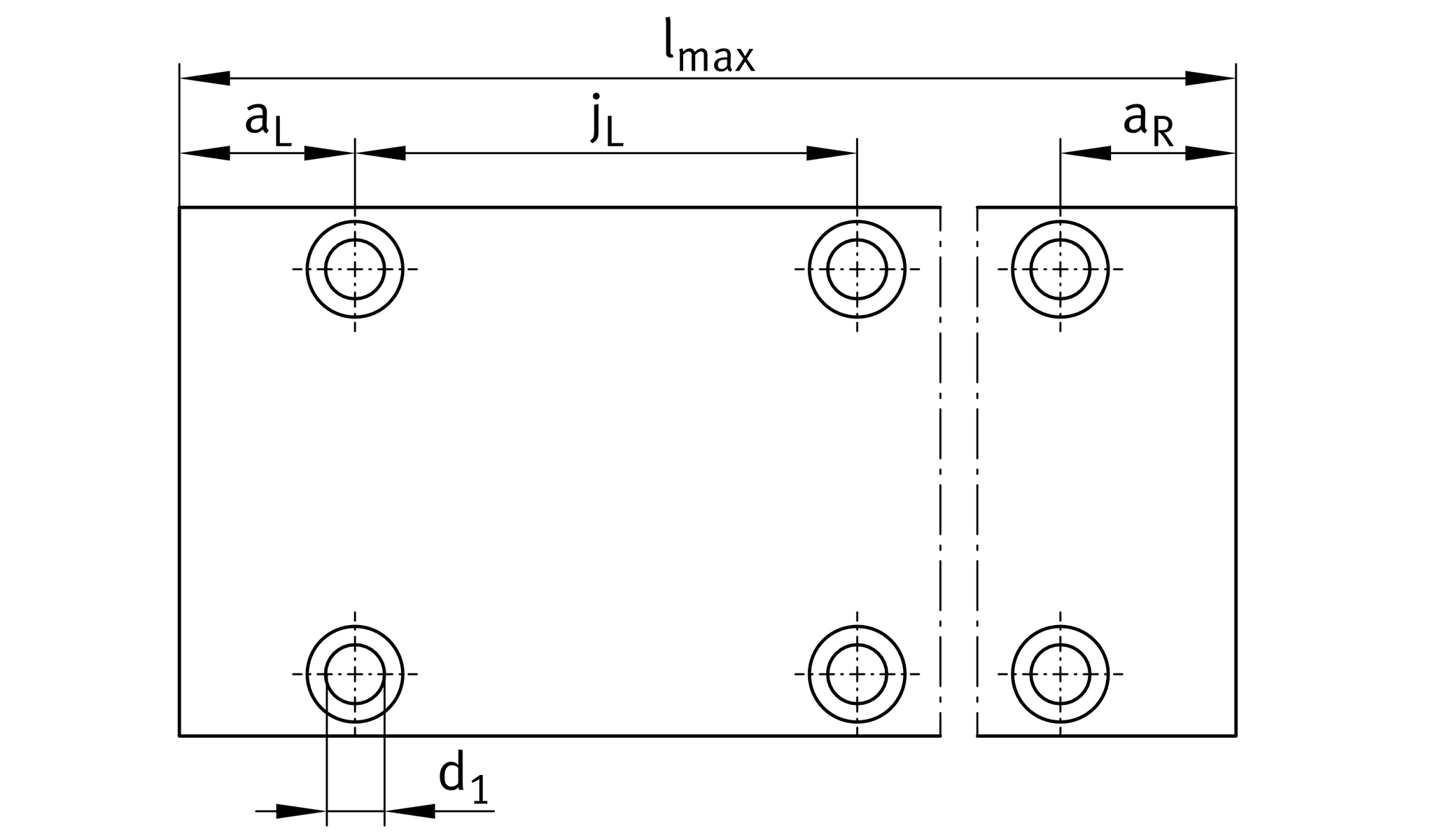

Mounting dimensions
jB
36 mm
jB2
5.5 mm
jL
80 mm
aR min
10 mm
aR max
50 mm
aL min
10 mm
aL max
50 mm
h1
3.5 mm
N2
8.5 mm
d1
5.3 mm
bore diameter

Related products
RUS19069, RUS19105, RUS26086, RUS26102, RUS26126, RUSV30069-KS, RUSV30105-KS, RUSV42086-KS, RUSV42102-KS, RUSV42126-KS, PR14044, PR14061
suitable for linear roller bearing 2

Your current product variant
Size code4710
