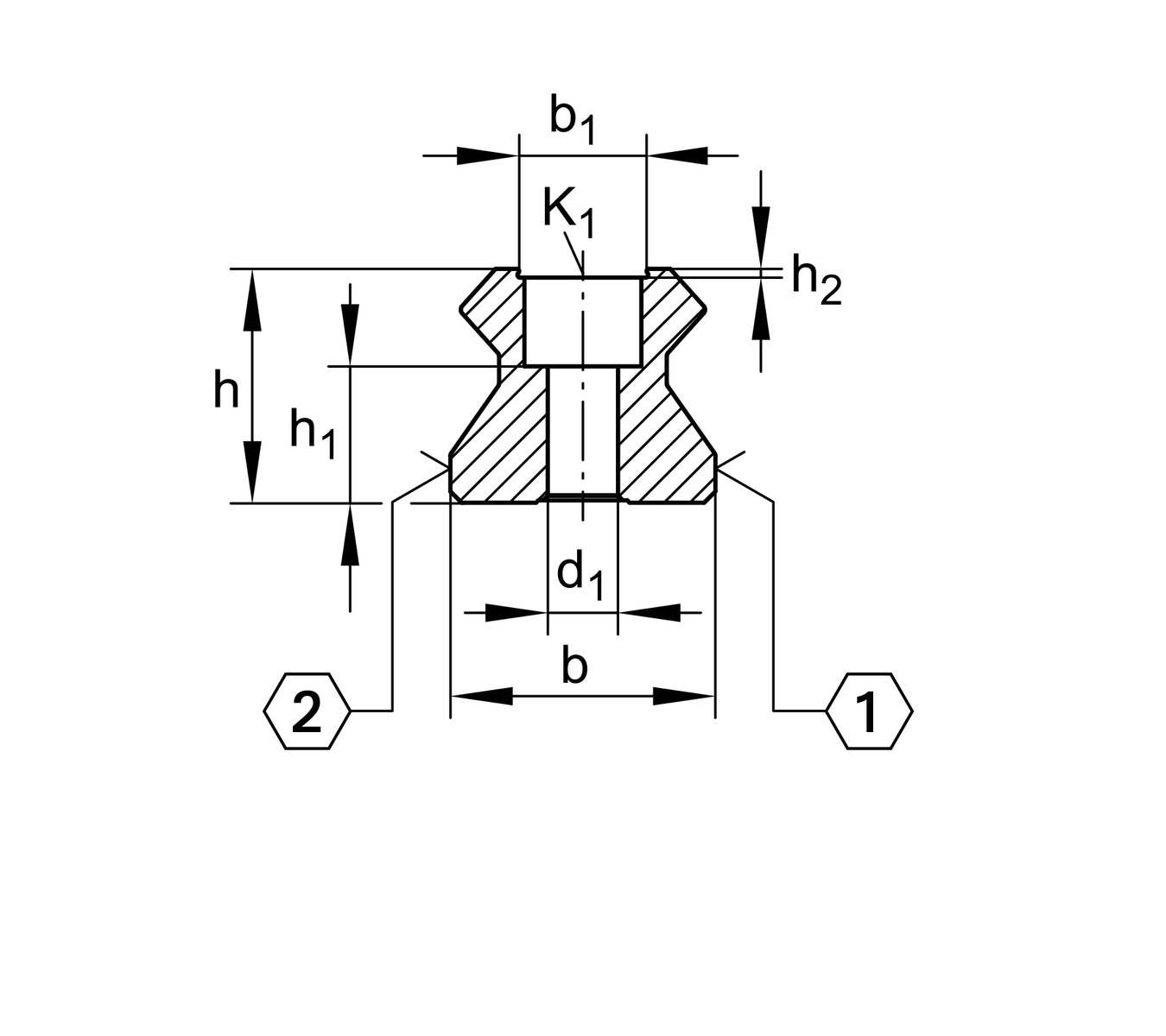

Main Dimensions & Performance Data
| h | 45 mm | Height |
| b | 53 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 13.1 kg/m | Weight |
Mounting dimensions
| K1 | M14 | Fixing screws (DIN ISO 4762-12.9) |
| d1 | 15.4 mm | bore diameter |
| K1 MA | 220 Nm | Tightening torque 1 |
Dimensions

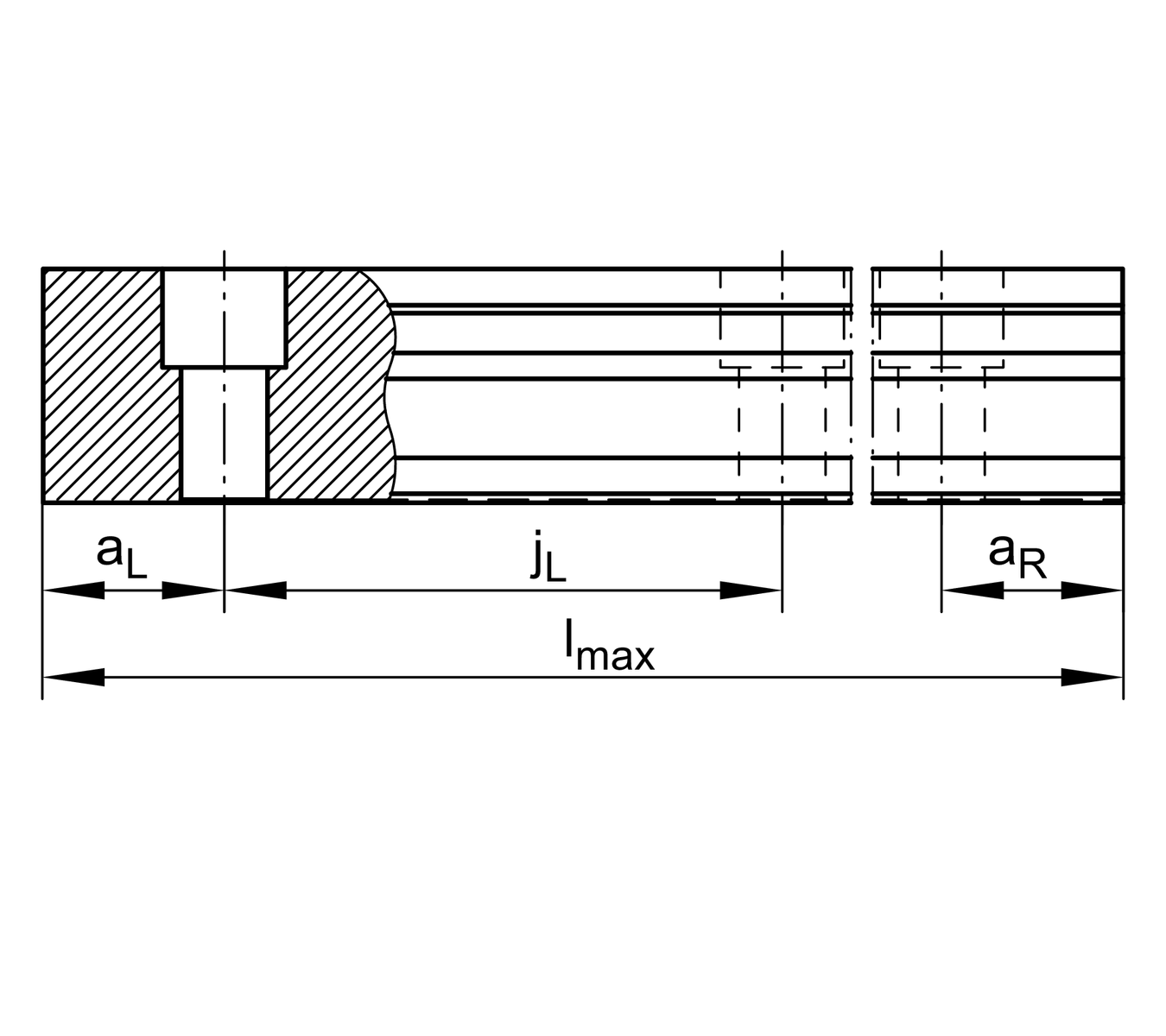

| lmax | 6,000 mm | Max length single piece guideway 2 |
| aL min | 20 mm | Distance 3 |
| aL max | 47 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| aR max | 47 mm | Distance 3 |
| jL | 60 mm | Increment |
| h1 | 22.5 mm | Length |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |

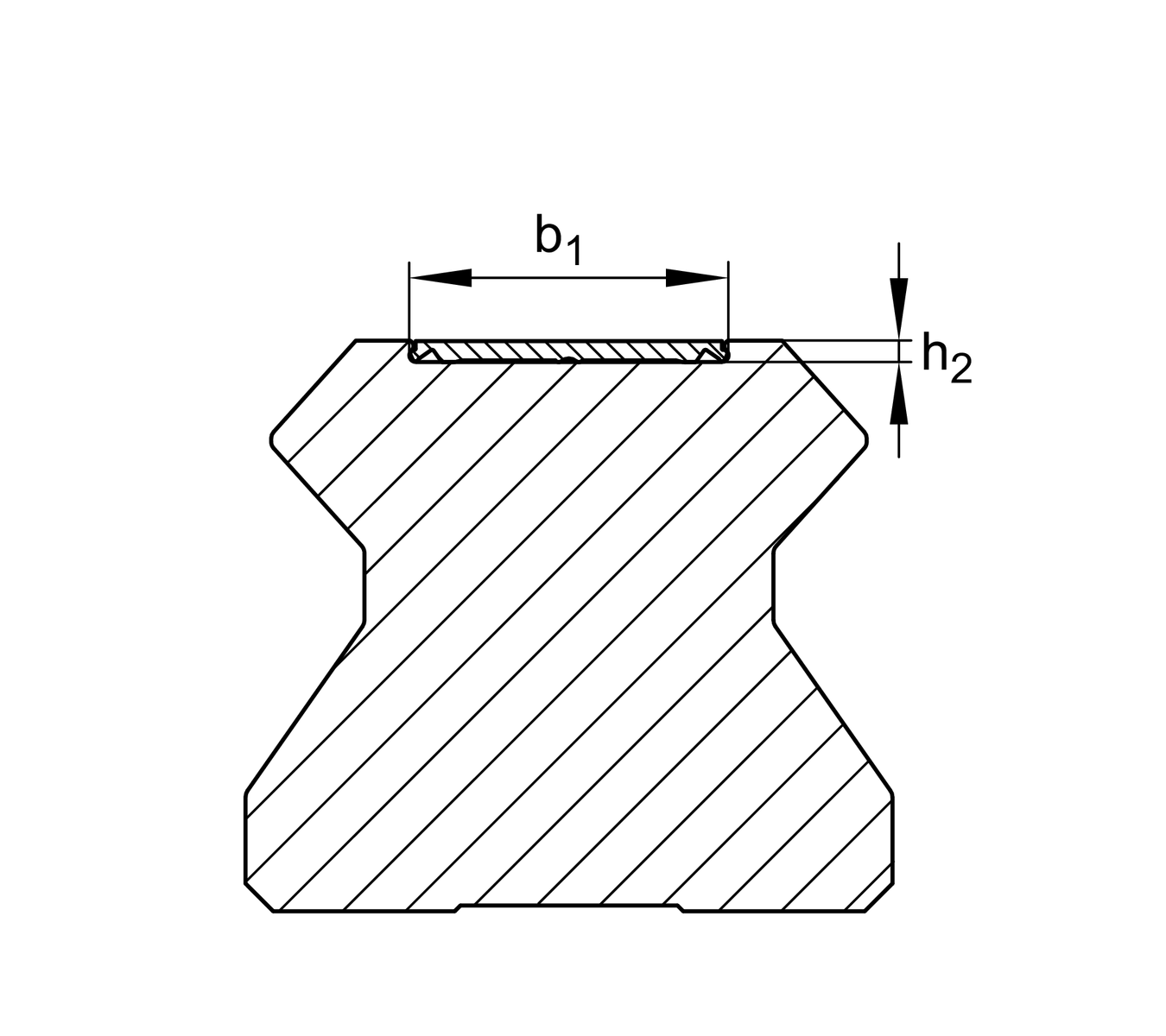

| h2 | 1.1 mm | Depth |
| b1 | 26 mm | Width |

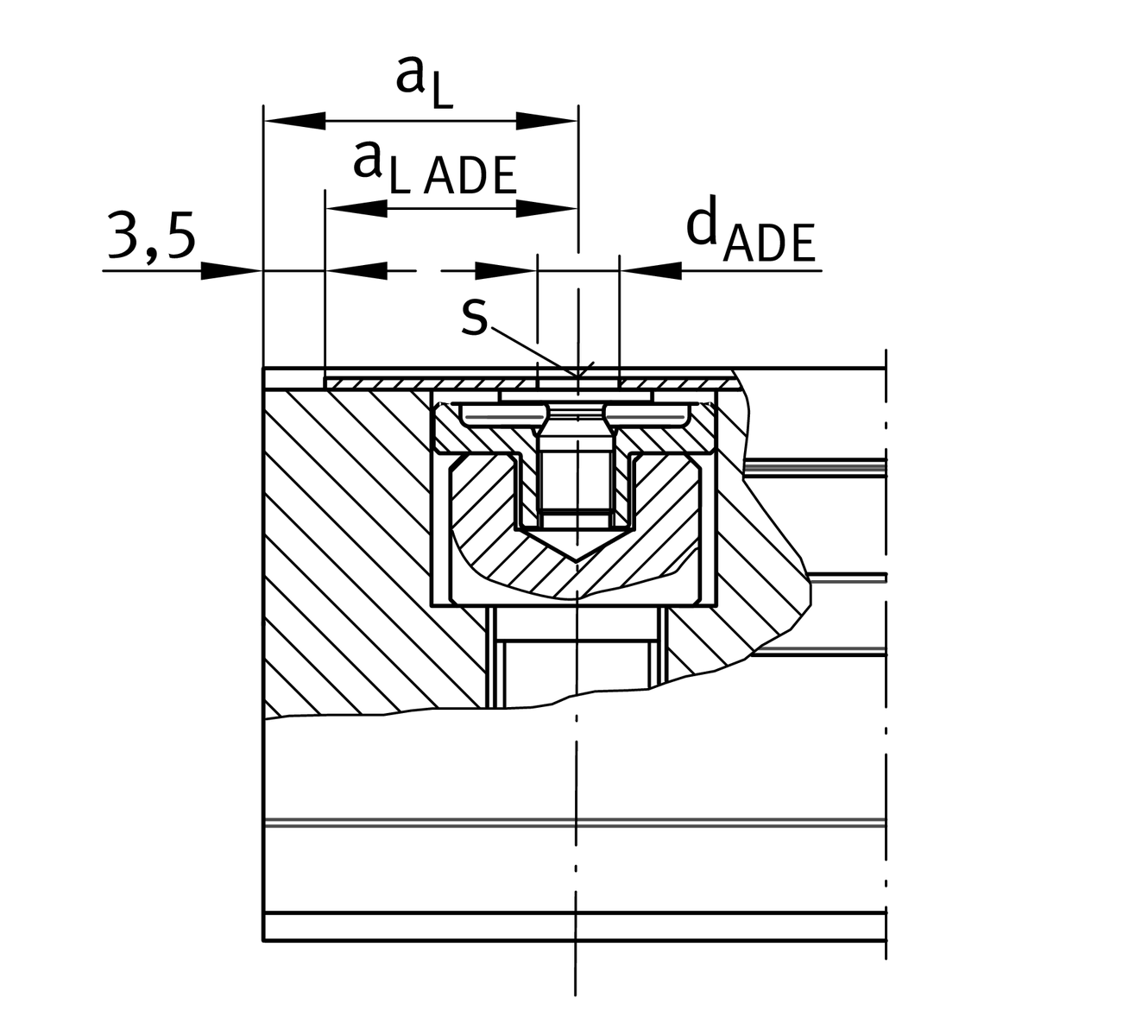

| dADB | 3.9 mm | Bore diameter |
| s | 0.6 mm | Thickness |
Additional information
RWU55-E-...; RWU55-F-... | usable carriage(s) | |
RUE55-E-...; RUE55-F-... | Usable linear systems |
Your current product variant
| Size code | 55 | |
| Length | ~6000 | approx. EWL-length |
| Version | E | |
| Guideway design | ADE | for stainless steel cover strip, reusable, can be slid into place |
