TSX35-E-U

Profile rail TSX35-E-U

Thêm vào yêu cầu báo giá

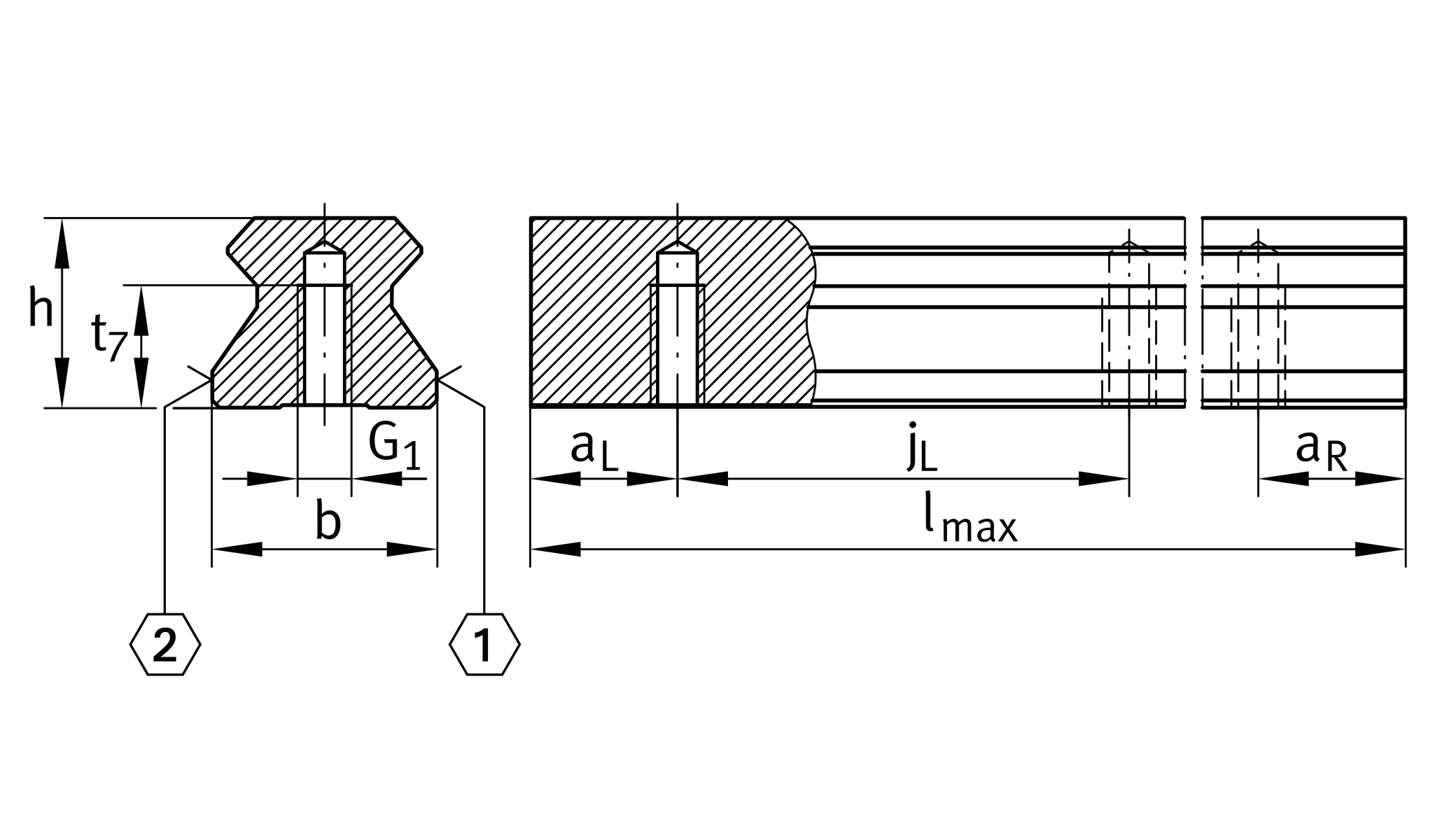

Main Dimensions & Performance Data

h	30 mm	Height
b	34 mm	Width
Tol b	-0.005 mm	Upper tolerance
Tol b	-0.035 mm	Lower tolerance
≈m	5.9 kg/m	Weight

Mounting dimensions

G₁	M8	Fixing screws (DIN ISO 4762-12.9)
G1 M_A	41 Nm	Tightening torque ¹

Dimensions

l_max	6,000 mm	Max length single piece guideway ²
a_{L min}	20 mm	Distance ³
a_{L max}	31 mm	Distance ³
a_{R min}	20 mm	Distance ³
a_{R max}	31 mm	Distance ³
j_L	40 mm	Increment
t₇	15 mm	Thread length

Additional information

	RWU35-E-...; RWU35-F-...	usable carriage(s)
	RUE35-E-...; RUE35-F-...	Usable linear systems

Your current product variant

Size code	35
Length	~6000	approx. EWL-length
Version	E
Locationg guideway	U	hole pattern from below
