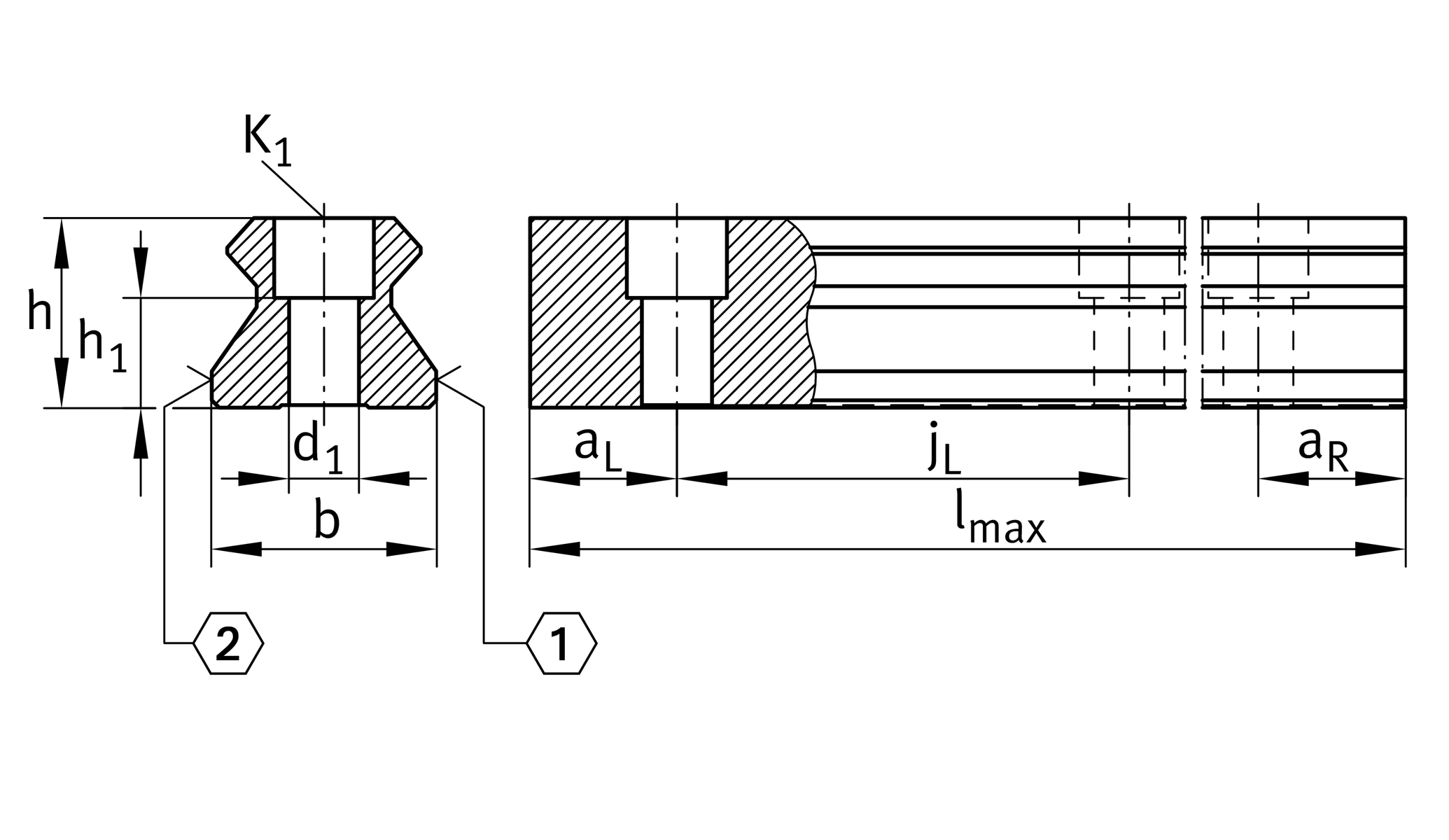

Main Dimensions & Performance Data
| h | 22.3 mm | Height |
| b | 23 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 2.9 kg/m | Weight |
Mounting dimensions
| K1 | M6 | Fixing screws (DIN ISO 4762-12.9) |
| d1 | 6.7 mm | bore diameter |
| K1 MA | 17 Nm | Tightening torque 1 |
Dimensions
| lmax | 3,930 mm | Max length single piece guideway 2 |
| aL min | 20 mm | Distance 3 |
| aL max | 23 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| aR max | 23 mm | Distance 3 |
| jL | 30 mm | Increment |
| h1 | 11.8 mm | Length |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
Additional information
RWU25-E-... | usable carriage(s) | |
RUE25-E-... | Usable linear systems |
Your current product variant
| Size code | 25 | |
| Length | ~4000 | approx. EWL-length |
| Version | D |
