TSWZ16-PD
Guideway body, inch sizes TSWZ16-PD
Thêm vào yêu cầu báo giá

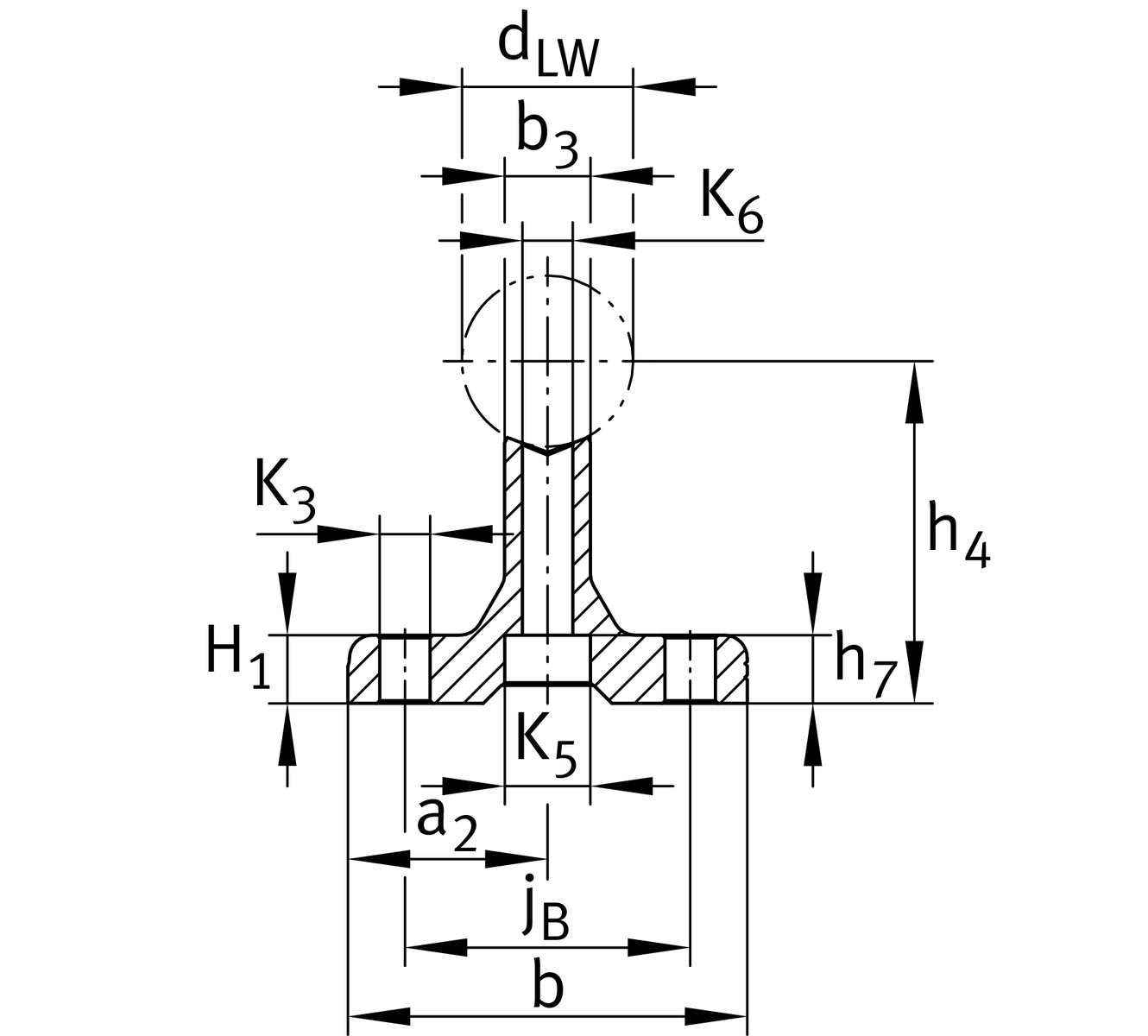

Main Dimensions & Performance Data
BGR
16
Dimension support body
h4
44.45 mm
Height dimension 1
Tol h4
0.051 mm
Height dimension TOL high
Tol h4
-0.051 mm
Height dimension TOL low
b
54.102 mm
Support rail width bottom
Lmax
1,219.2 mm
Support rail length
≈m
2.49 kg
Weight

Mounting dimensions
jB
38.1 mm
distance bore
b3
12.7 mm
Support rail width prism
a2
27 mm
Support rail Width END
Tol a2
0.051 mm
Height dimension TOL high
Tol a2
-0.051 mm
Height dimension TOL low

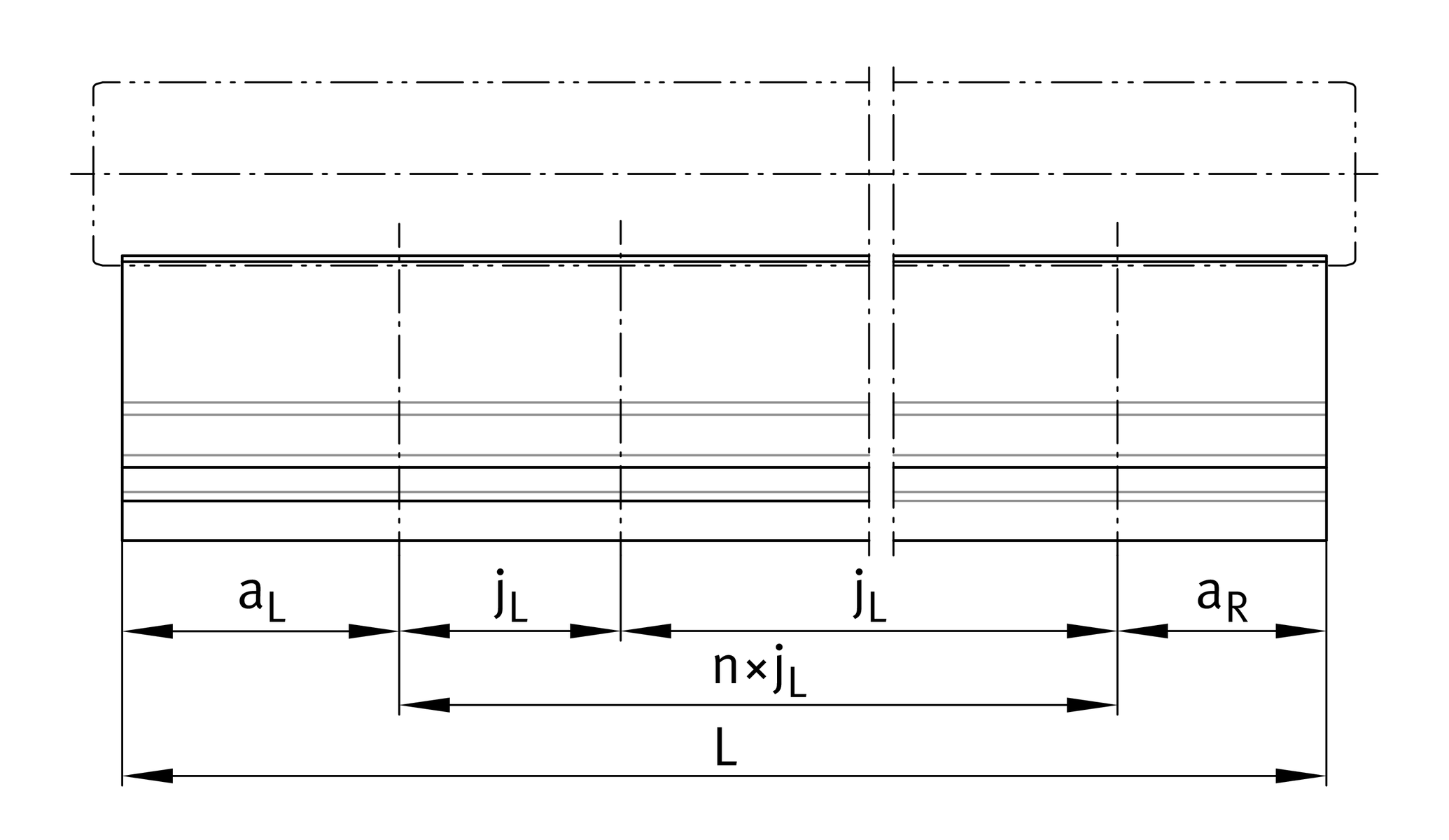

jL
152.4 mm
distance radial thread
aL min
15.24 mm
distance radial thread aL (min) 2
aL max
139.7 mm
distance radial thread aL (max) 2
aR min
15.24 mm
distance radial thread right aR (min) 2
aR max
139.7 mm
distance radial thread right aR (max) 2
H1
6.35 mm
Support rail height END
K3
7.137 mm
diameter adjacent construction bore
K5
11.1 mm
diameter counterbore
h7
6.858 mm
Depth counterbore
K6
7.137 mm
diameter connecting design bore
m
1.37 lbs/ft
Support rail weight

Your current product variant
Diameter shaft1"dLW
