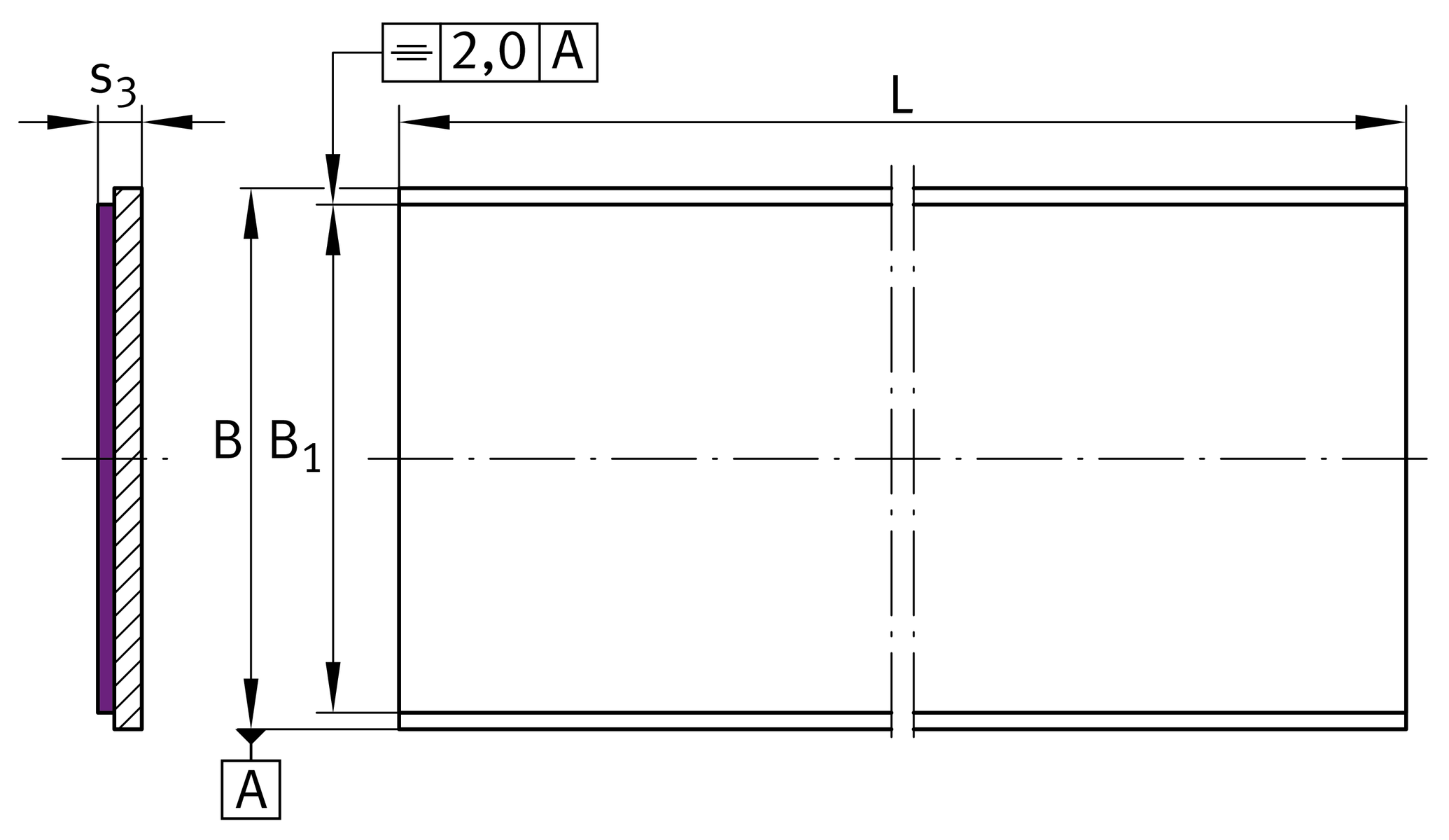

Main Dimensions & Performance Data
| s3 | 2.505 mm | wall thickness |
| B | 260 mm | width |
| B1 | 243 mm | minimum usable width |
| L | 500 mm | Strip length |
| ≈m | 2.463 kg | Weight |
Dimensions
| s3min | -0.05 mm | wall thickness lower tolerance |
| s3max | 0 mm | wall thickness upper tolerance |
| Bmin | -2 mm | width , lower tolerance |
| Bmax | 2 mm | width, upper tolerance |
| Lmin | 0 mm | total length lower tolerance |
| Lmax | 3 mm | total width upper tolerance |
Temperature range
| Tmin | -200 °C | Operating temperature min. |
| Tmax | 280 °C | Operating temperature max. |
