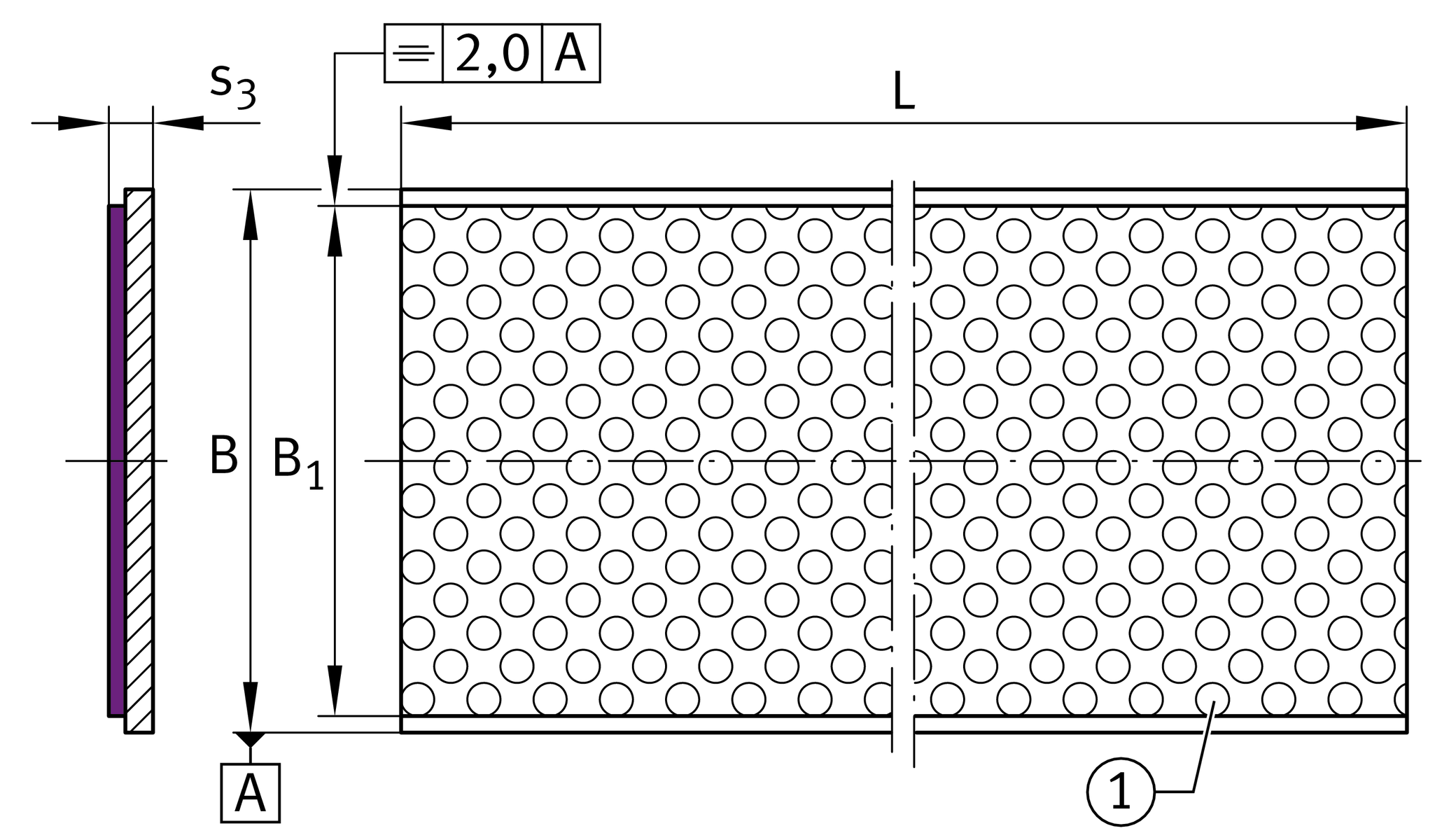

Main Dimensions & Performance Data
| s3 | 0.99 mm | wall thickness |
| B | 80 mm | width |
| B1 | 70 mm | minimum usable width |
| L | 500 mm | Strip length |
| ≈m | 237.8 g | Weight |
Dimensions
| s3min | -0.04 mm | wall thickness lower tolerance |
| s3max | 0 mm | wall thickness upper tolerance |
| Bmin | -2 mm | width , lower tolerance |
| Bmax | 2 mm | width, upper tolerance |
| Lmin | 0 mm | total length lower tolerance |
| Lmax | 3 mm | total width upper tolerance |
Temperature range
| Tmin | -40 °C | Operating temperature min. |
| Tmax | 110 °C | Operating temperature max. |
