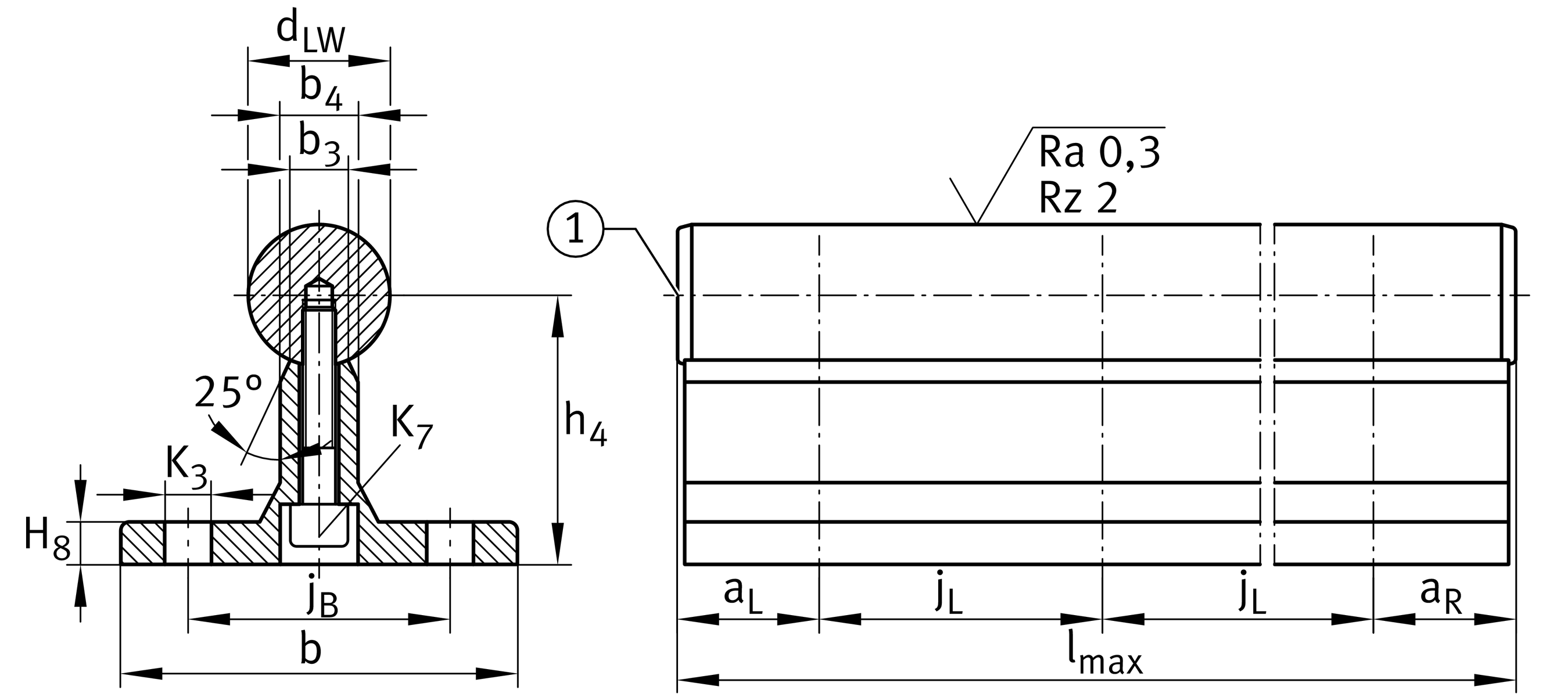

Main Dimensions & Performance Data
| dLW | 12 mm | Diameter shaft |
| BGR | 12 | Dimension of shaft and support rail unit |
| dLWTol | h6 | Diameter tolerance shaft |
| h4 | 28 mm | Height dimension |
| h4 tol | 0.02 mm | Height dimension tolerance (High) |
| h4 tol | -0.02 mm | Height dimension tolerance (Low) |
| b | 43 mm | Support rail width bottom |
| Lmax | 6,000 mm | Shaft and Support rail unit length |
| Ltol max | 3 mm | Length tolerance (max) |
| Ltol min | -3 mm | Length tolerance (min) |
| ≈m | 1.93 kg/m | Weight |
Mounting dimensions
| aL min | 20 mm | Distance thread aL (min) 1 |
| aL max | 69 mm | Distance thread aL (max) 1 |
| aR min | 20 mm | Distance thread aR (min) 1 |
| aR max | 69 mm | Distance thread aR (max) 1 |
| b3 | 5.4 mm | Support rail width prism |
| b4 | 9 mm | Support rail width top |
| H8 | 5 mm | Support rail thickness foot |
| jB | 29 mm | Bore width distance jB |
| jL | 75 mm | Bore length ditance jL |
| K3 | 4.5 mm | Adjacent construction bore 2 |
| K7 | M4x25 | Screw size |
| ms | 1.93 kg/m | Shaft and support rail unit weight |
Your current product variant
| Size code | 12 |
