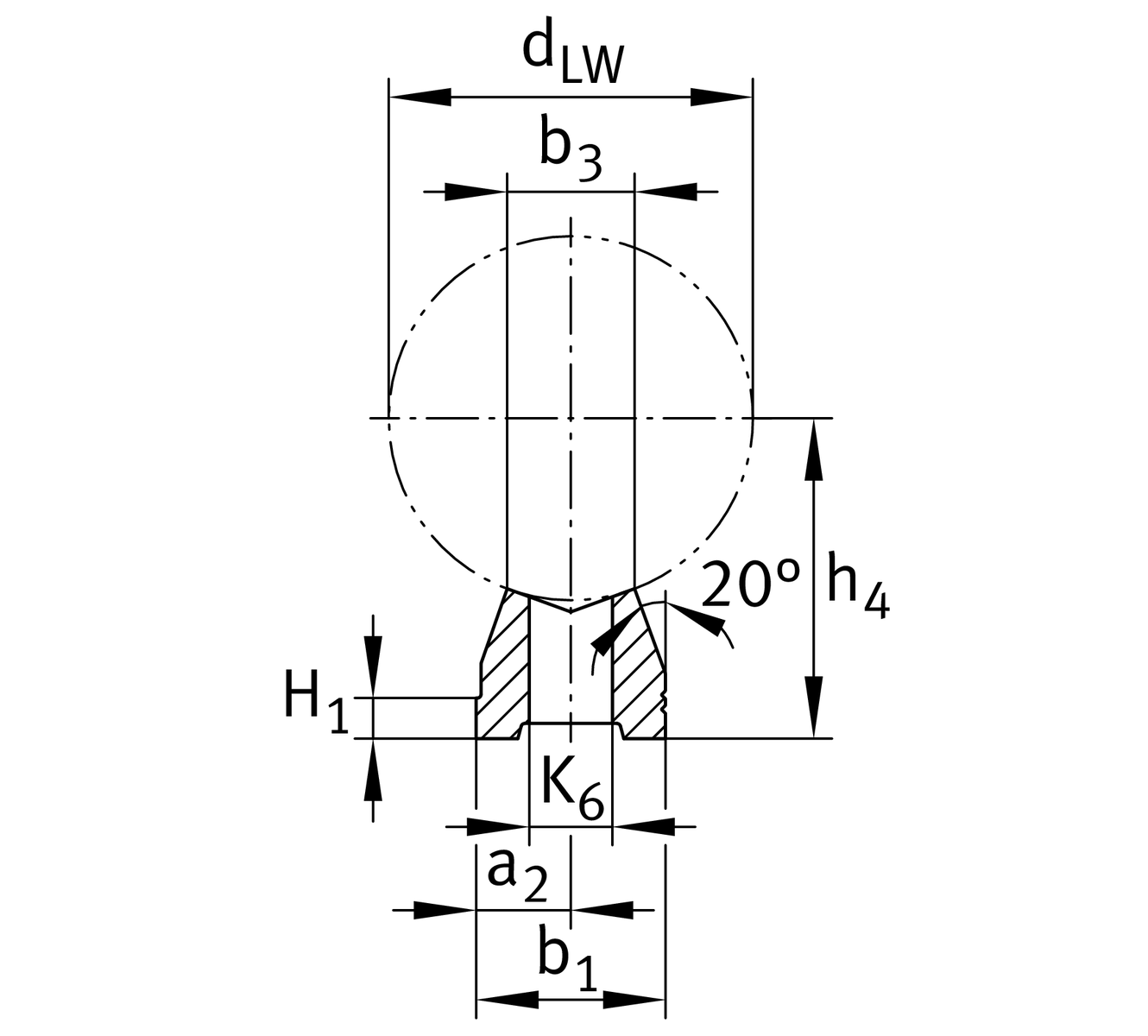

Main Dimensions & Performance Data
| BGR | 24 | Dimension of support body |
| h4 | 1.375 in | Height dimension 1 |
| Tol h4 | 0.002 in | Height dimension tolerance High |
| Tol h4 | -0.002 in | Height dimension tolerance Low |
| b1 | 0.93 in | Support Rail-Width-Bottom |
| Lmax | 48 in | Support rail length |
Mounting dimensions
| a2 | 0.465 in | Support rail width stop bar |
| Tol a2 | 0.05 in | Height dimension tolerance High |
| Tol a2 | -0.05 in | Height dimension tolerance Low |
| b3 | 0.623 in | Support rail width prism |
| H1 | 0.2 in | Support Rail height stop bar |
| m | 0.58 lbs/ft | Support Rail weight |
| K6 | 0.406 in | Connecting Bore |

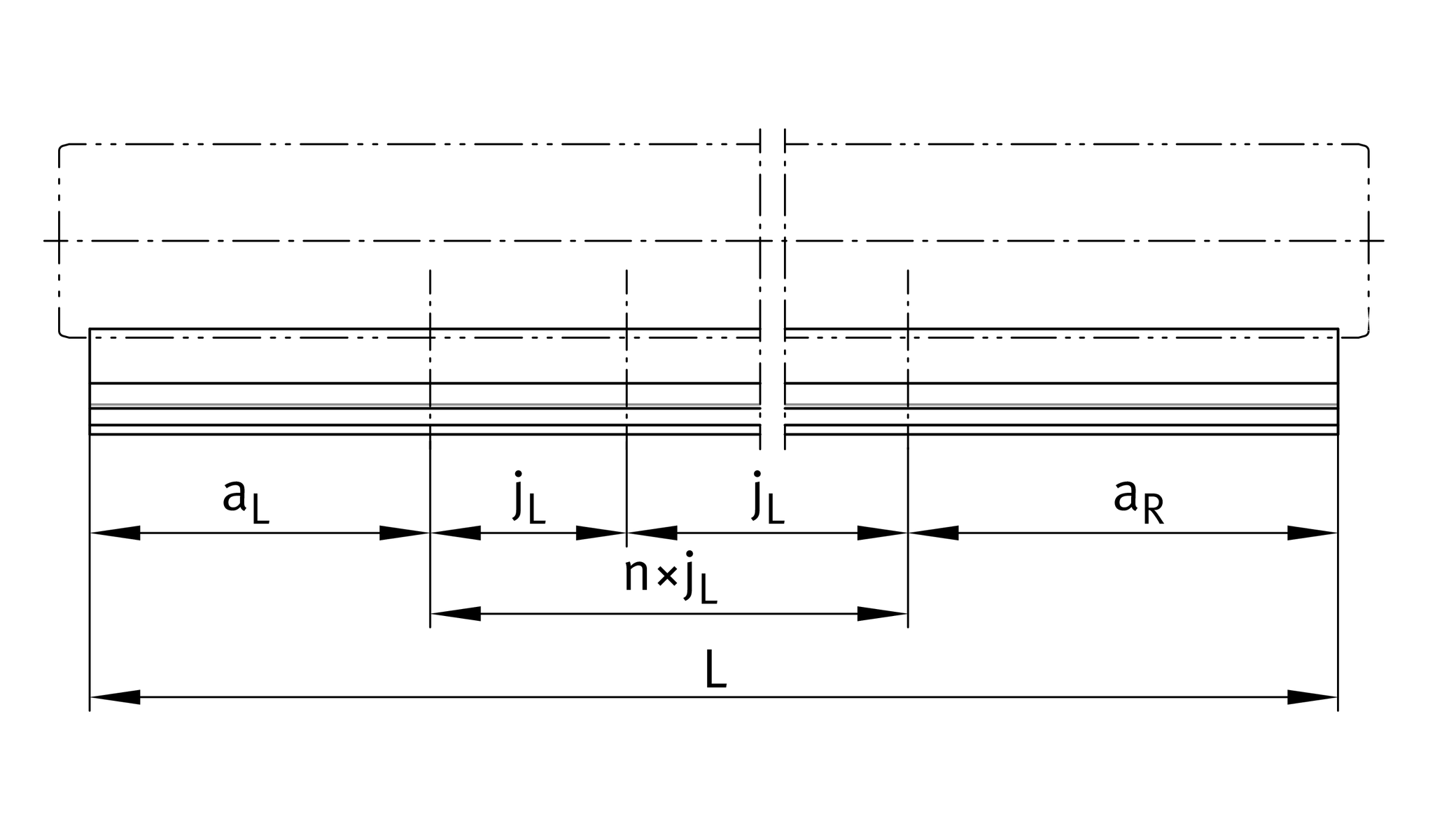

| aL min | 0.6 in | distance radial thread left (min) 2 |
| aL max | 7 in | distance radial thread left (max) 2 |
| aR min | 0.6 in | distance radal thread right (min) 2 |
| aR max | 7 in | distance radal thread right (max) 2 |
| jL | 8 in | distance radial thread |
Your current product variant
| Diameter shaft | 1-1/2" | dLW |
