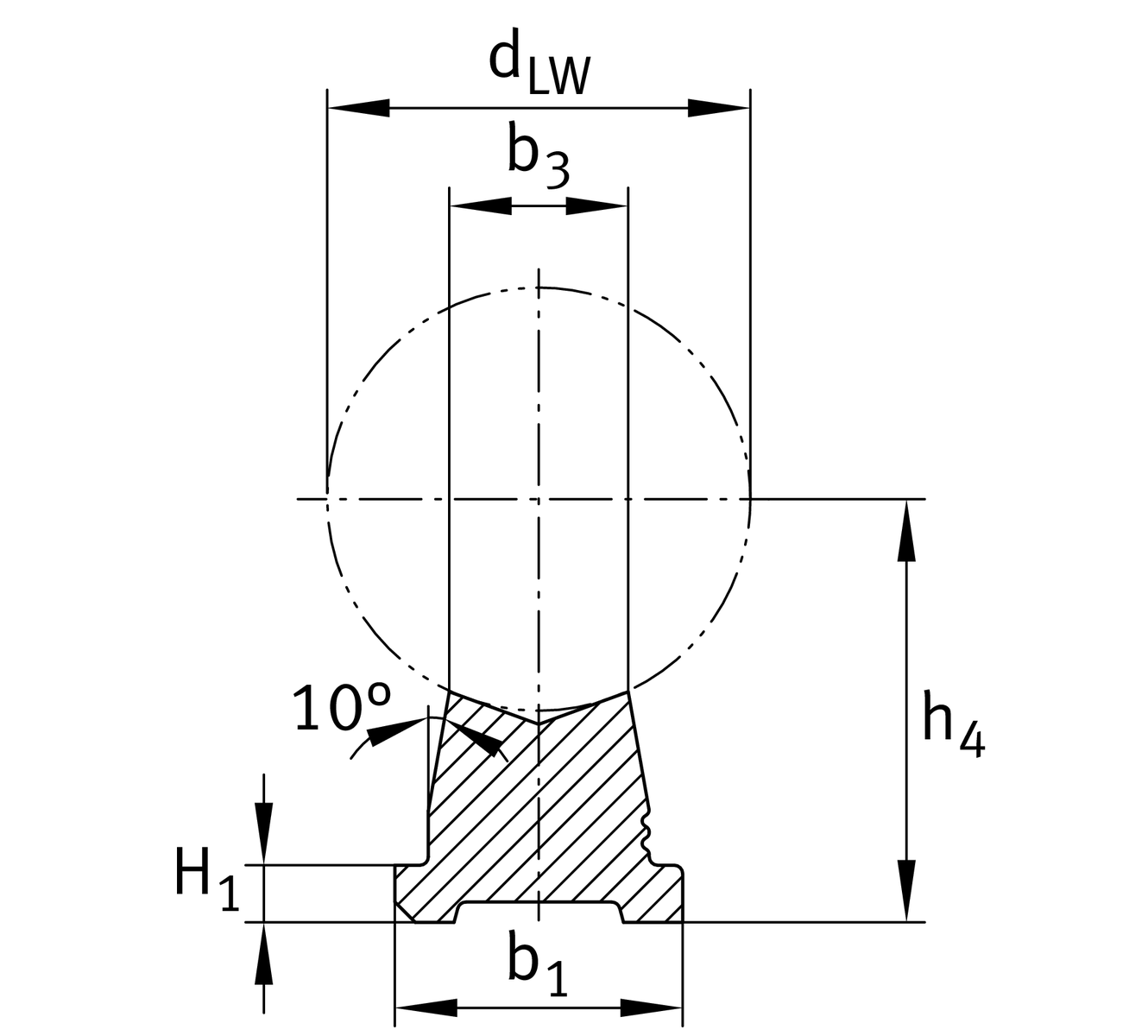

Main Dimensions & Performance Data
| BGR | 12 | Dimension of support body |
| h4 | 0.75 in | Height dimension 1 |
| Tol h4 | 0.002 in | Height dimension tolerance High |
| Tol h4 | -0.002 in | Height dimension tolerance Low |
| b1 | 0.51 in | Support Rail-Width-Bottom |

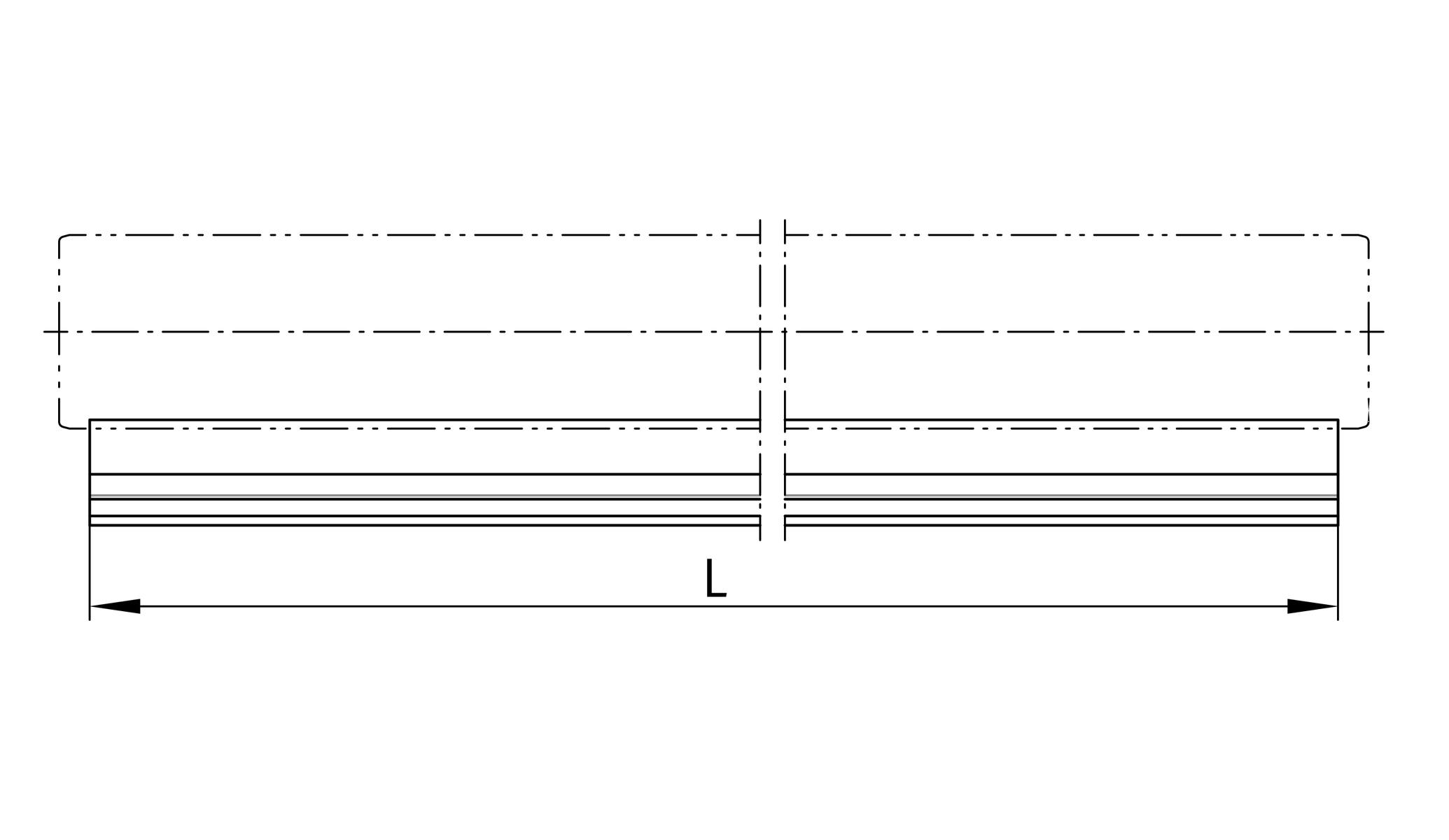

| Lmax | 48 in | Support rail length |
Mounting dimensions
| a2 | 0.255 in | Support rail width stop bar |
| Tol a2 | 0.05 in | Height dimension tolerance High |
| Tol a2 | -0.05 in | Height dimension tolerance Low |
| b3 | 0.317 in | Support rail width prism |
| H1 | 0.12 in | Support Rail height stop bar |
| m | 0.2 lbs/ft | Support Rail weight |
Your current product variant
| Diameter shaft | 3/4" | dLW |
