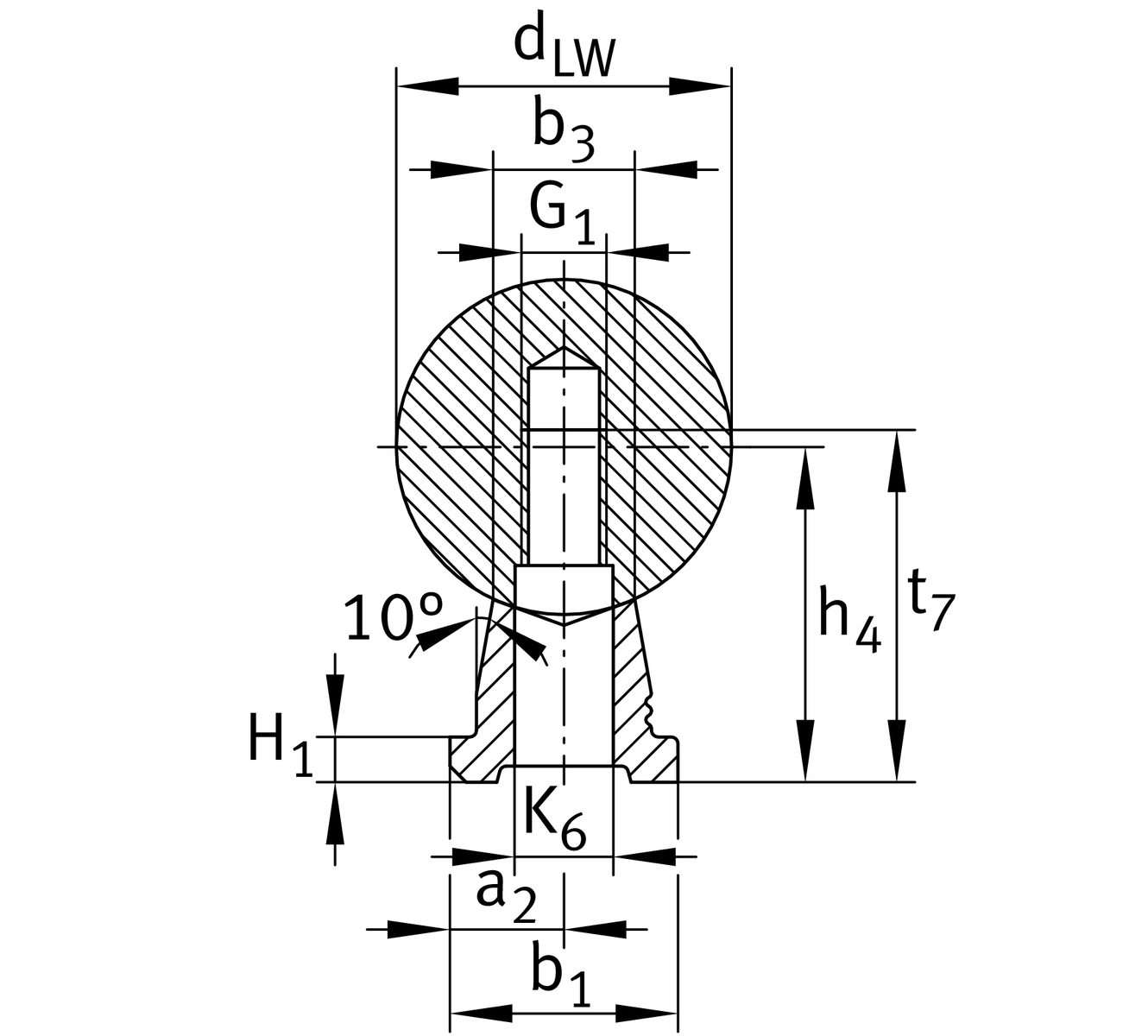

Main Dimensions & Performance Data
| BGR | 08 | Dimension of shaft and support rail unit |
| dLWtol | L | Diameter tolerance shaft |
| h4 | 14.275 mm | Height dimension 1 |
| Tol h4 | 0.051 mm | Height dimension tolerance high |
| Tol h4 | -0.051 mm | Height dimension tolerance low |
| b1 | 9.398 mm | Support rail width bottom |
| Lmax | 4,267.2 mm | shaft and support rail-length max. 2 |
| ≈m | 1.14 kg/m | Weight |

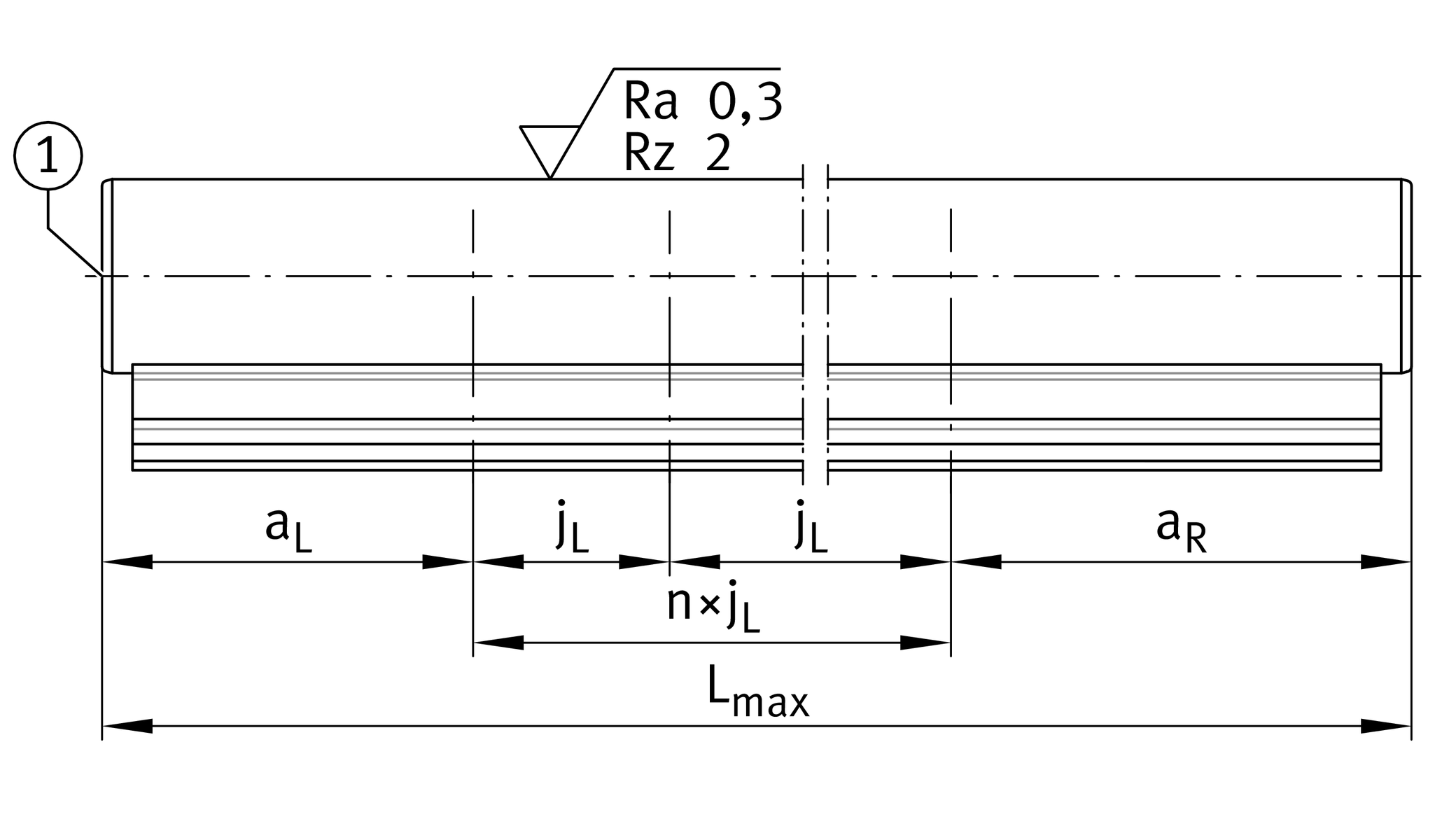

Mounting dimensions
| a2 | 4.699 mm | Support Rail Width distance-stop bar |
| Tol a2 | 1.27 mm | distance-stop bar tolerance high |
| Tol a2 | -1.27 mm | distance-stop bar tolerance low |
| b3 | 5.486 mm | Support Rail-width prism |
| G1 | 6-32 | Thread size (shaft) |
| H1 | 3.048 mm | Support Rail height stop bar |
| m | 0.11 lbs/ft | Shaft and support rail unit weight |
| K6 | 4.293 mm | Connecting bore |
| aL min | 15.24 mm | distance radial thread left (min) 3 |
| aL max | 88.9 mm | distance radial thread left (max) 3 |
| aR min | 15.24 mm | distance radal thread right (min) 3 |
| aR max | 88.9 mm | distance radal thread right (max) 3 |
| jL | 101.6 mm | distance radial thread |
| t7 | 16.002 mm | Screw depth support rail 4 |
Your current product variant
| Diameter shaft | 1/2" | dLW |
