SK104-207-KTT-B-L402/70
Self-aligning deep groove ball bearings SK104-207-KTT-B-L402/70
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
DSP
72 mm
Outside diameter
B
37.9 mm
Width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
444 g
Weight

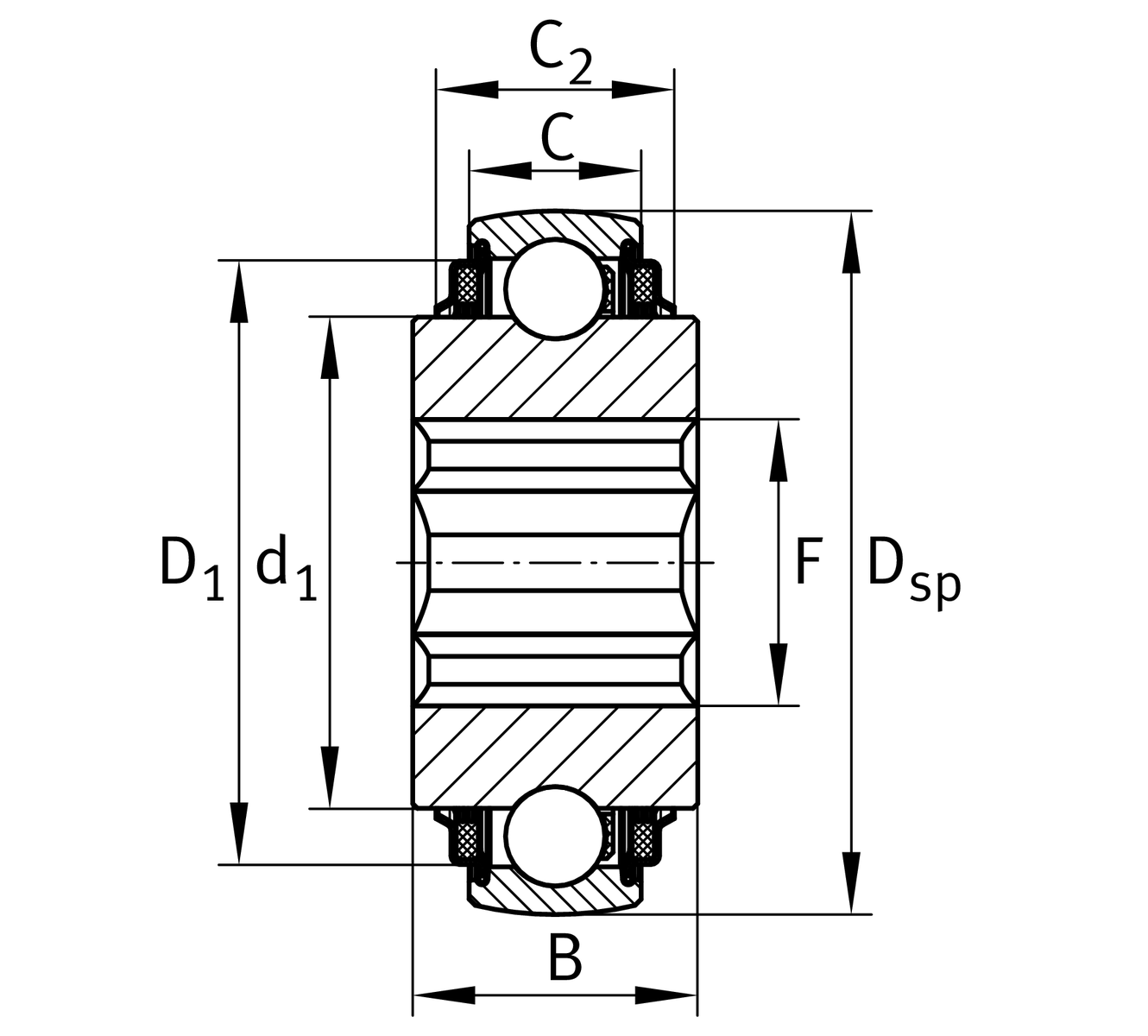

Dimensions
D1
60 mm
Outside diameter seal
C
19 mm
Width, outer ring
F
37.2 mm
Maximum distance hexagonal bore
r
0.13 mm
Radius hexagonal bore
C2
22.7 mm
Sealing total width
d1
46.8 mm
Rib diameter inner ring

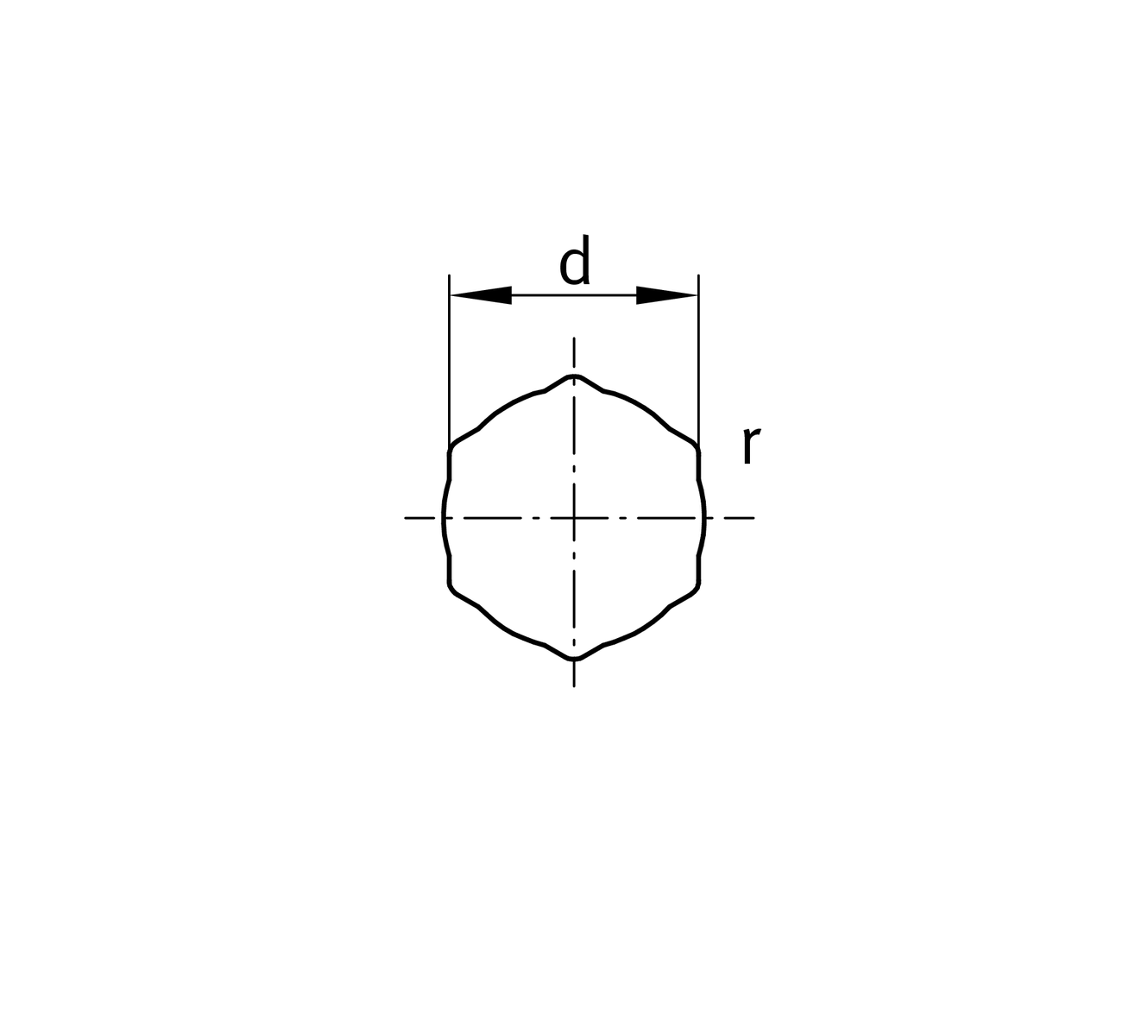

d
31.75 mm
Width of flats
0.15 mm
Width across flats upper tolerance
d
31.75 mm
Width across flats (Inch)
0.05 mm
Width across flats lower tolerance

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKTTTriple lip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset207207
