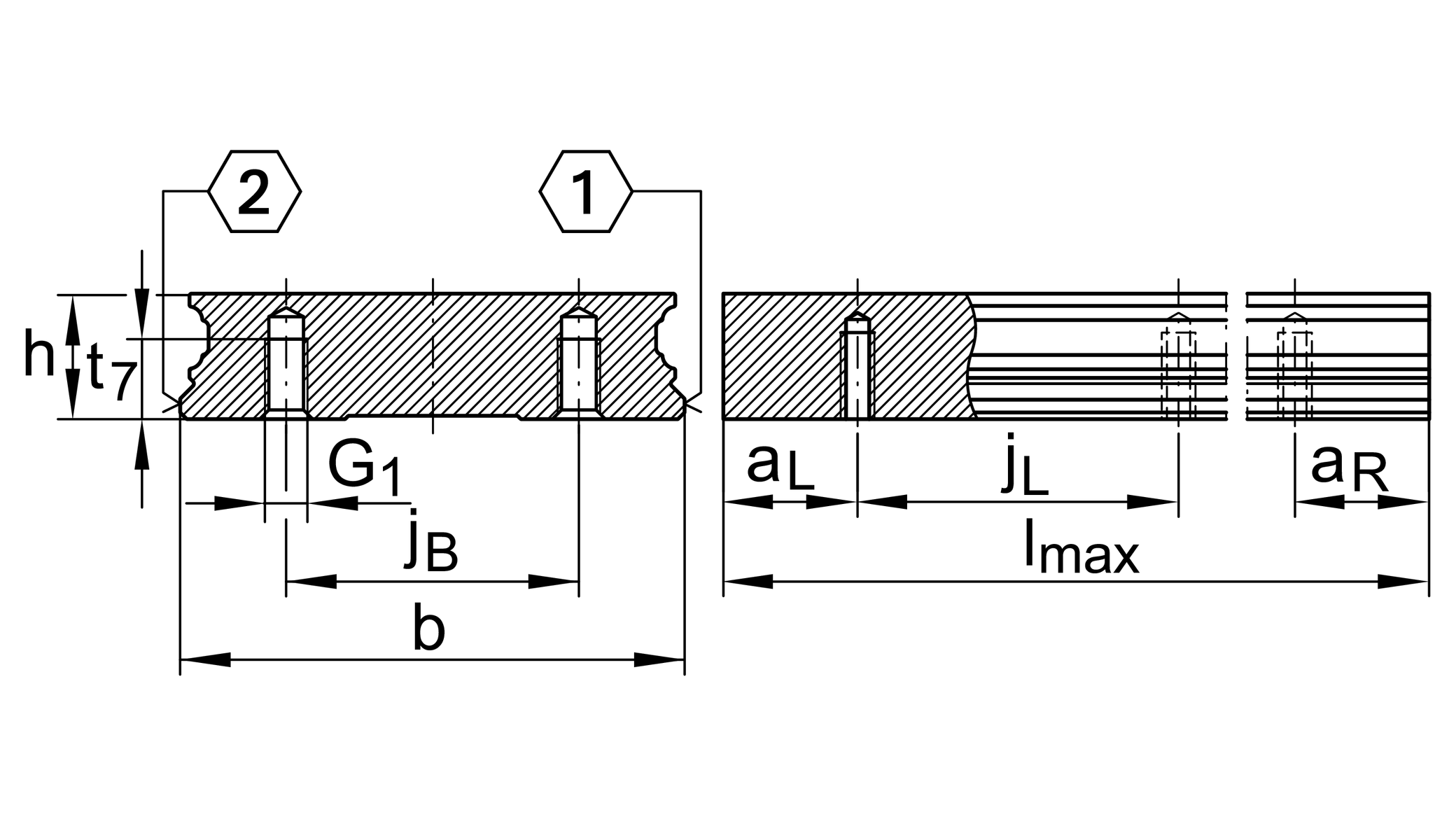

Main Dimensions & Performance Data
| h | 23.5 mm | Height |
| b | 80 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 13.6 kg/m | Weight |
Mounting dimensions
| G1 | M8 | Thread |
| G1 MA | 41 Nm | Tightening torque 1 |
Dimensions
| lmax | 6,000 mm | Max length single piece guideway 2 |
| aL max | 71 mm | Distance 3 |
| aL min | 20 mm | Distance 3 |
| aR max | 71 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| jL | 80 mm | Increment |
| jB | 50 mm | Increment |
| a5 | 15 mm | Distance |
| t7 | 15 mm | Thread length |
Additional information
KWVE30-W... | usable carriage(s) | |
KUVE30-W... | usable linear systems |
Your current product variant
| Size code | 30 | |
| Length | ~6000 | |
| Guideway design | W | wide execution |
