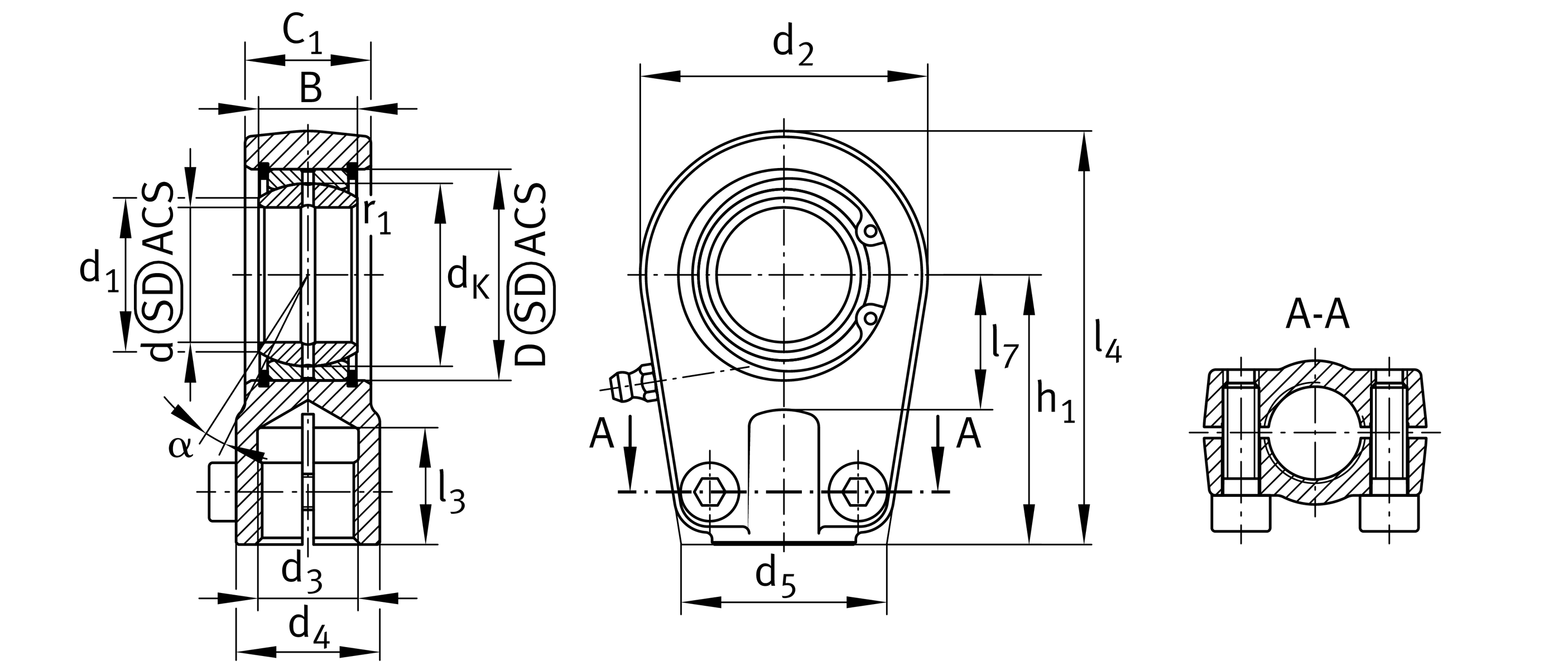

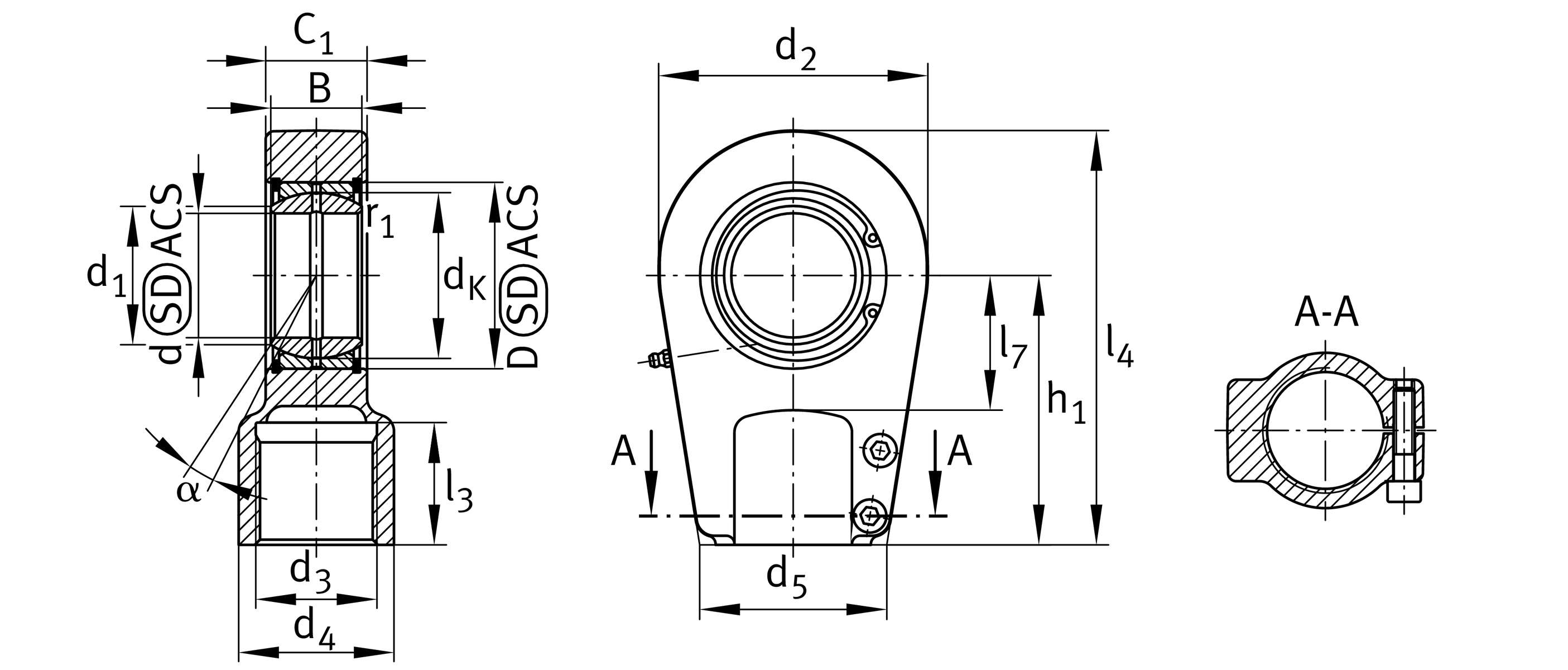

Main Dimensions & Performance Data
| Cr | 952,000 N | Basic dynamic load rating, radial |
| C0r | 2,370,000 N | Basic static load rating, radial |
| d | 120 mm | Bore diameter bearing |
| d2 | 340 mm | Outer eye diameter |
| l4 | 490 mm | Total length internal thread head |
| D | 180 mm | Outside diameter bearing |
| B | 85 mm | Width inner ring |
| ≈m | 77.7 kg | Weight |
Dimensions
| α | 6 ° | Tilt angle |
| C1 | 90 mm | Width of the rod end |
| C2 | 84 mm | Width |
| dK | 160 mm | Ball diameter |
| d3 | M130x3 | Thread size |
| d4 | 172 mm | Shank diameter |
| d5 | 257 mm | Shank diameter, large |
| d 7 | M24x80 | Diameter |
| h1 | 310 mm | Shank Length Internal thread head |
| l3 | 135 mm | Thread length Internal thread |
| l7 | 140 mm | Distance drilling with/shaft start |
| dUT | -0.02 mm | Bore diameter bearing, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.2 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| MA | 660 Nm | Tightening torque |
| Gr | CN | Radial Clearance |
| Grmin | 0.065 mm | Radial clearance, minimum |
| Grmax | 0.165 mm | Radial clearance, maximum |
Mounting dimensions
| r1smin | 1 mm | Edge Spacing |
| d1 | 135.6 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
