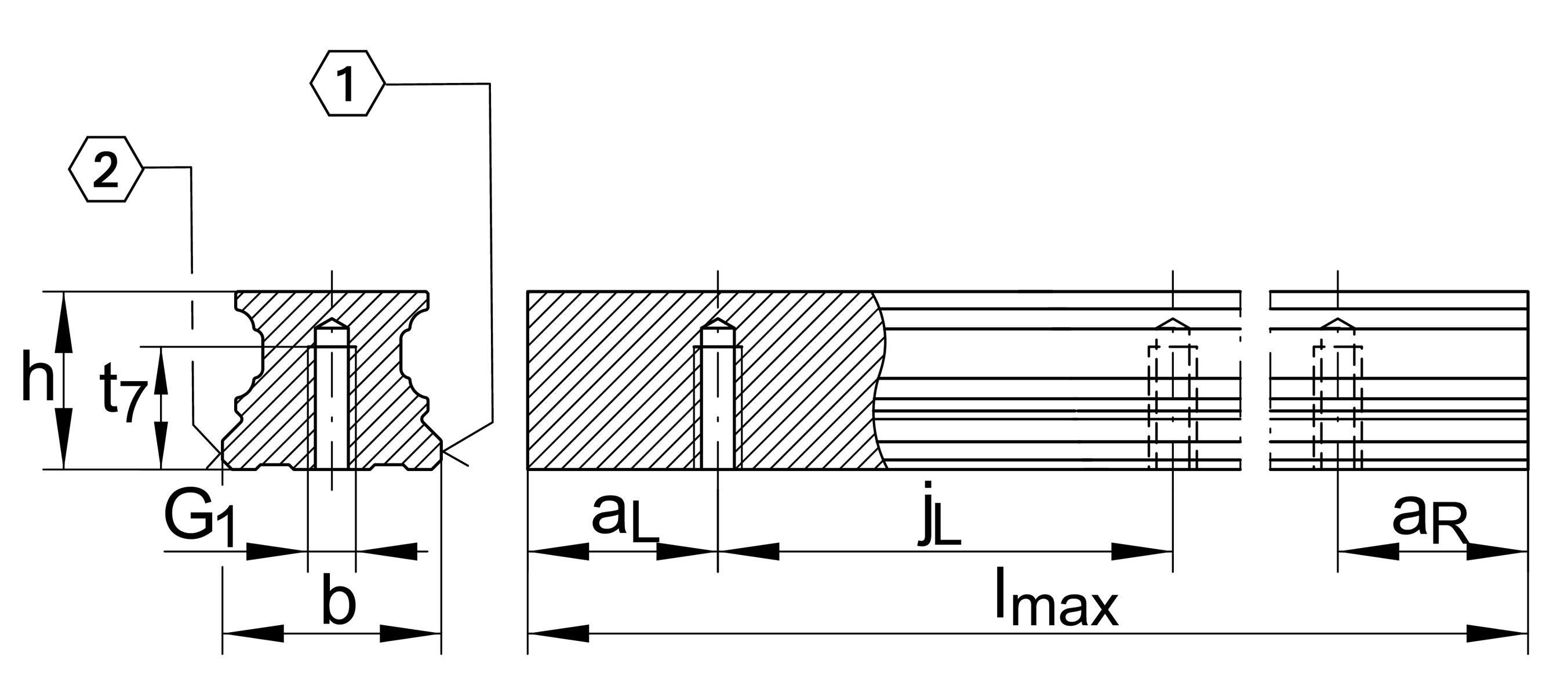

Main Dimensions & Performance Data
| h | 15 mm | Height |
| b | 15 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 1.44 kg/m | Weight |
Mounting dimensions
| G1 | M5 | Thread |
| G1 MA | 10 Nm | Tightening torque 1 |
Dimensions
| lmax | 4,000 mm | Max length single piece guideway 2 |
| aL max | 53 mm | Distance 3 |
| aL min | 20 mm | Distance 3 |
| aR max | 53 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| jL | 60 mm | Increment |
| t7 | 8 mm | Thread length |
Additional information
KWVE15-B... | usable carriage(s) | |
KUVE15-B... | usable linear systems |
Your current product variant
| Size code | 15 | |
| Length | ~4000 | |
| Version | B |
