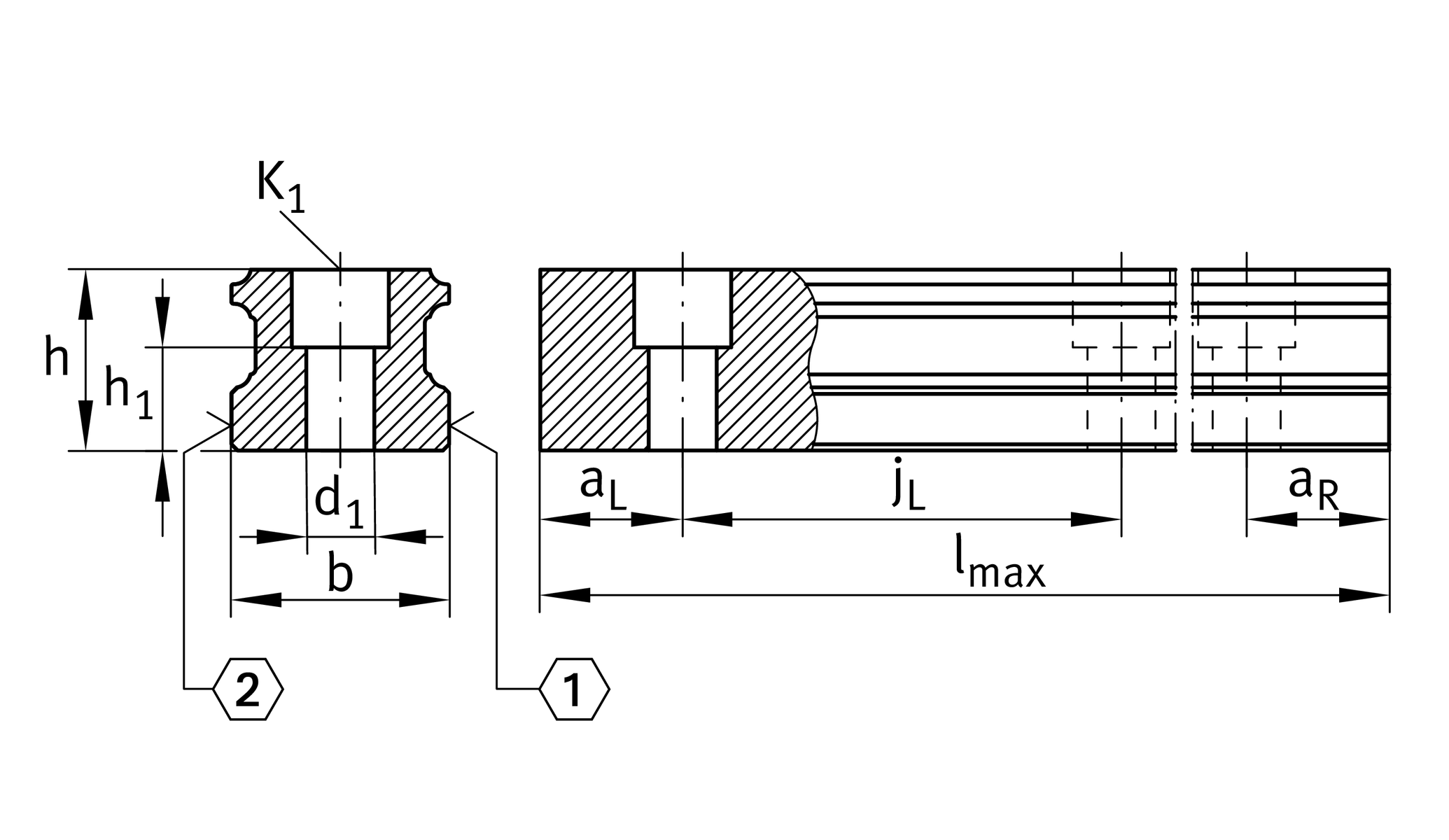

Main Dimensions & Performance Data
| h | 25 mm | Height |
| b | 28 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 4.4 kg/m | Weight |
Mounting dimensions
| K1 | M8 | Fixing screws (DIN ISO 4762-12.9) |
| K1 MA | 41 Nm | Tightening torque 1 |
| d1 | 9 mm | bore diameter |
Dimensions
| lmax | 6,000 mm | Max length single piece guideway 2 |
| aL min | 20 mm | Distance 3 |
| aL max | 71 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| aR max | 71 mm | Distance 3 |
| jL | 80 mm | Increment |
| h1 | 12.5 mm | Length |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
Additional information
KWSE30... | usable carriage(s) | |
KUSE30... | Usable linear systems |
Your current product variant
| Size code | 30 |
