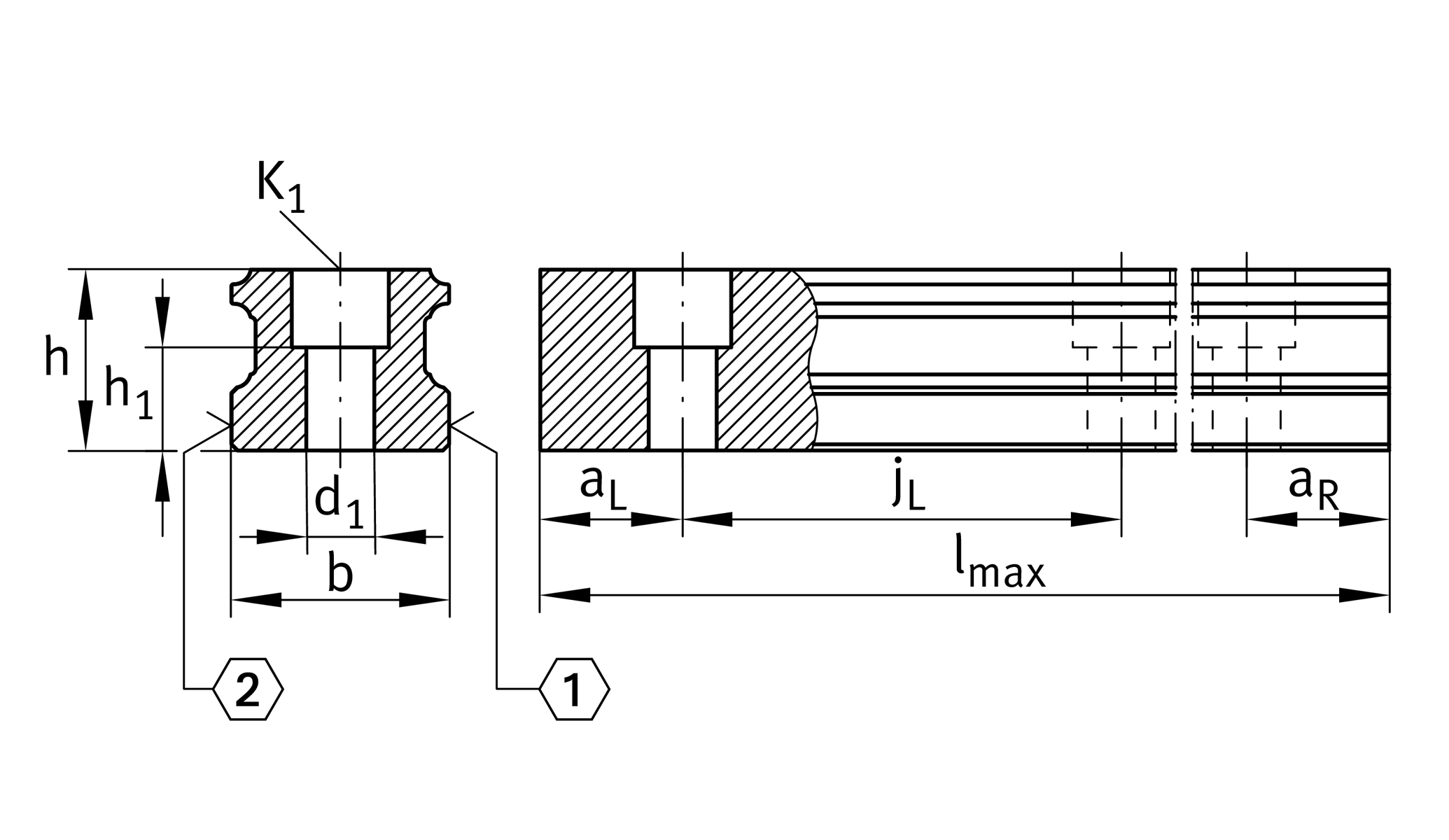

Main Dimensions & Performance Data
| h | 21.7 mm | Height |
| b | 23 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 3.1 kg/m | Weight |
Mounting dimensions
| K1 | M6 | Fixing screws (DIN ISO 4762-12.9) |
| K1 MA | 17 Nm | Tightening torque 1 |
| d1 | 6.8 mm | bore diameter |
Dimensions
| lmax | 6,000 mm | Max length single piece guideway 2 |
| aL min | 20 mm | Distance 3 |
| aL max | 53 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| aR max | 53 mm | Distance 3 |
| jL | 60 mm | Increment |
| h1 | 11.2 mm | Length |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
Additional information
KWSE25 | usable carriage(s) | |
KUSE25 | Usable linear systems |
Your current product variant
| Size code | 25 |
