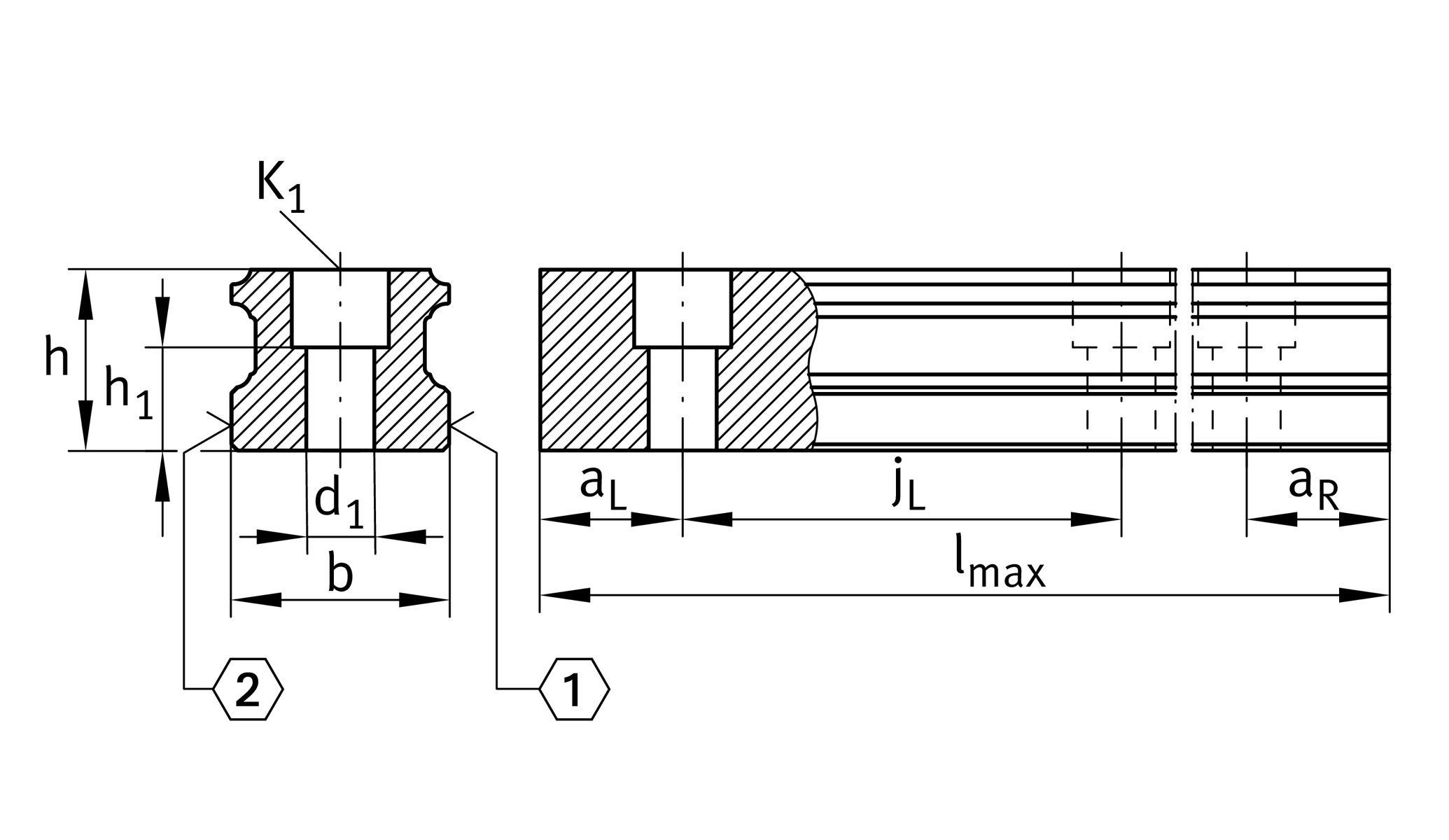

Main Dimensions & Performance Data
| h | 18 mm | Height |
| b | 20 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 2.3 kg/m | Weight |
Mounting dimensions
| K1 MA | 10 Nm | Tightening torque 1 |
| d1 | 5.8 mm | bore diameter |
Dimensions
| lmax | 3,900 mm | Max length single piece guideway 2 |
| aL min | 20 mm | Distance 3 |
| aL max | 53 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| aR max | 53 mm | Distance 3 |
| jL | 60 mm | Increment |
| h1 | 9.6 mm | Length |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Lower tolerance |
Additional information
KWSE20... | usable carriage(s) | |
KUSE20... | Usable linear systems |
Your current product variant
| Size code | 20 |
