TME70-XL
Flanged housing unit TME70-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
70 mm
Bore diameter
H
215 mm
Height flange
B1
66 mm
Locking collar total width
U
44.5 mm
Total height unit
Cr
66,000 N
Basic dynamic load rating, radial
C0r
44,000 N
Basic static load rating, radial
Cur
2,300 N
Fatigue load limit, radial
≈m
4.98 kg
Weight

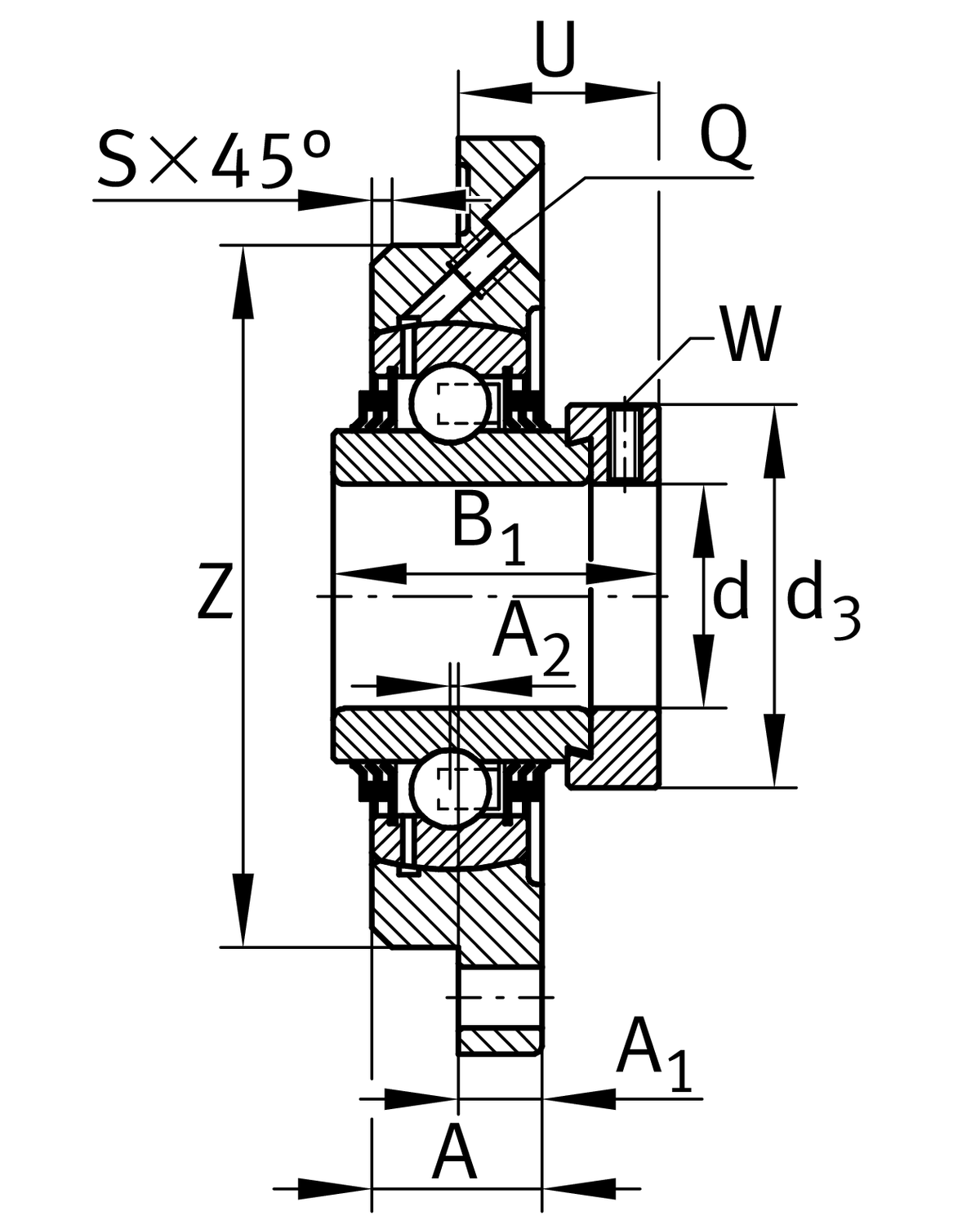

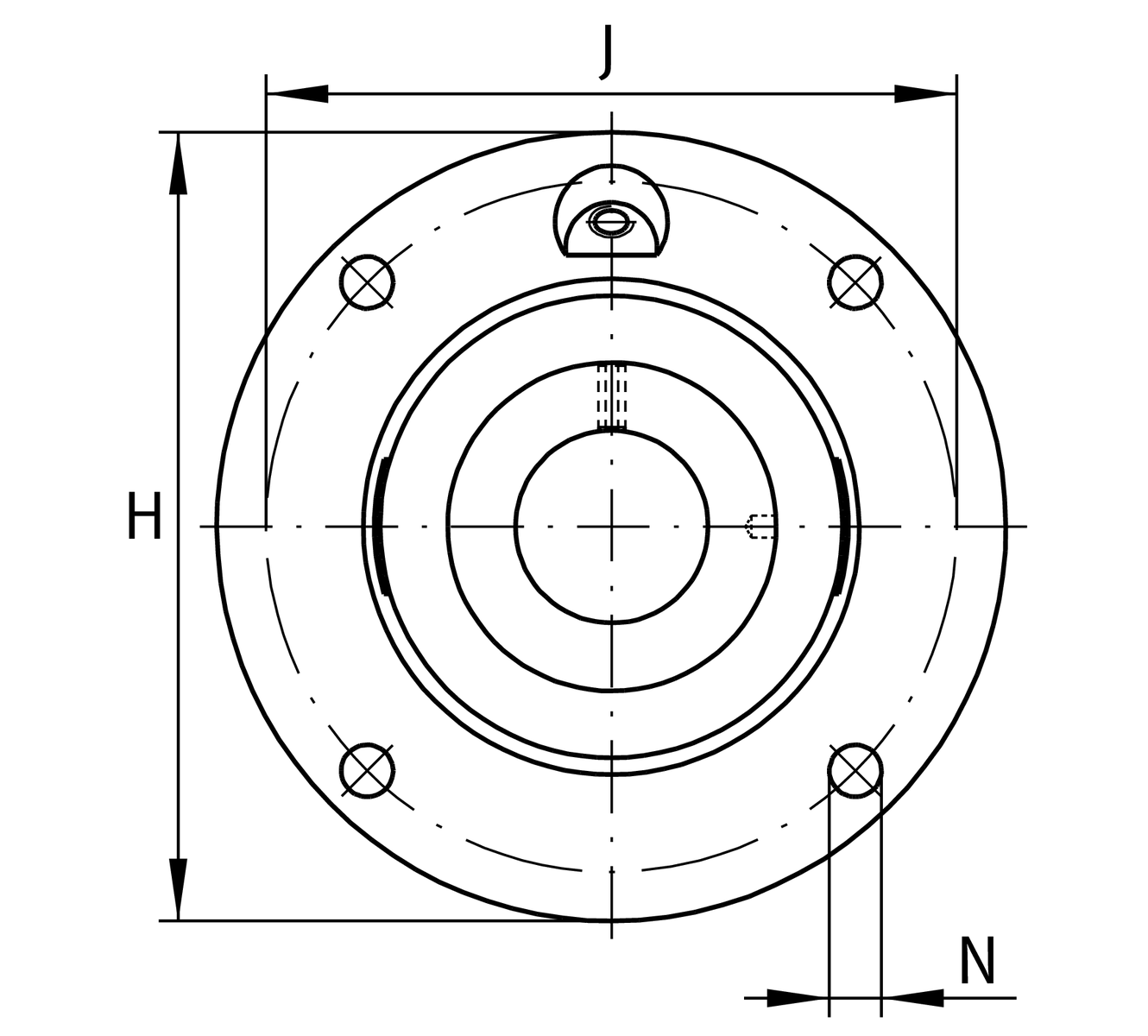

Mounting dimensions
J
177 mm
Pitch circle diameter (holes)
N
18 mm
Fixing bore
Z
150 mm
Diameter spigot
h8
Diameter spigot clearance
W
6 mm
Width across flats
n
4
Number of screwing holes

Dimensions
A
32 mm
Height housing
A1
18 mm
Thickness of flange
S
6 mm
Chamfer width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
ME14
Housing
GE70-XL-KTT-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
