Main Dimensions & Performance Data
| i | 50 | Gear reduction ratio |
| TR | 98 Nm | Maximum torque |
| TA | 55 Nm | Average torque |
| TN | 39 Nm | Rated torque |
| TM | 186 Nm | Collision torque |
| nmax | 5,600 1/min | Maximum input drive speed |
| nav max | 3,500 1/min | Average input drive speed |
| φTA | < 1 arcmin | Transmission accuracy |
| φR | <± 0.1 arcmin | Repeat accuracy |
| φH | < 2 arcmin | Hysteresis loss |
| J | 0.36 10⁻⁴ kg*m² | Mass moment of interia |
| K1 | 25,000 Nm/rad | Torsional rigidity |
| K2 | 34,000 Nm/rad | Torsional rigidity |
| K3 | 44,000 Nm/rad | Torsional rigidity |
| TNLST | 120 mNm | No load starting torque at +20°C |
| TNLRT | 199 mNm | No load running torque at +20°C and 2000 min-1 |
| TBT | 6.32 Nm | Back driving torque at +20°C |
| ≈m | 1.2 kg | Weight |

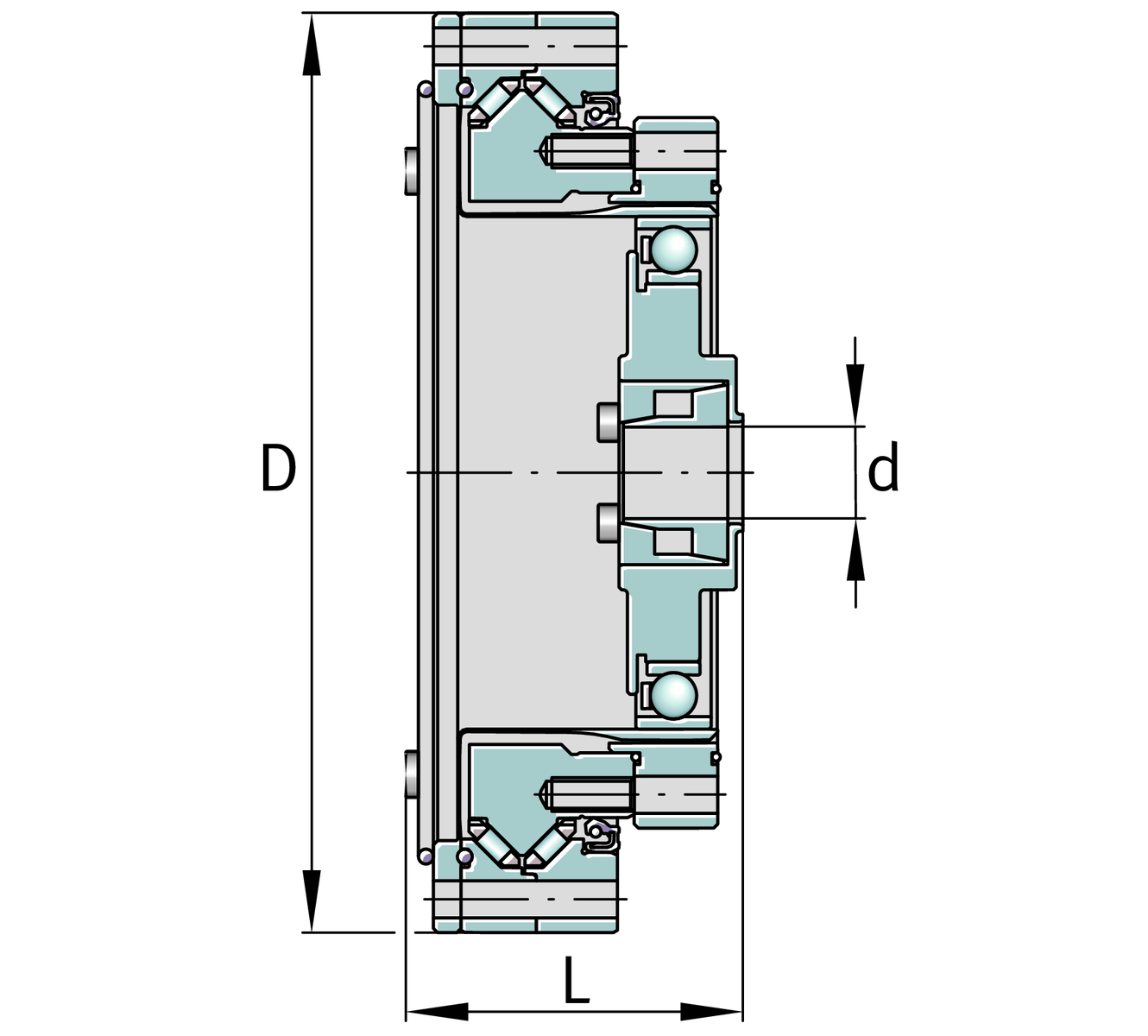

Dimensions
| D | 110 mm | Diameter |
| L | 37 mm | Length |
| d | 11 mm | Hollowshaft_diameter |
Your current product variant
| Design | BMS | Basic Unit Motor Shaft |
| Size code | 25 | |
| Design variant | H | Variant HAT |
| Product type | RT2 | Precision strain wave gear standard |
